Description

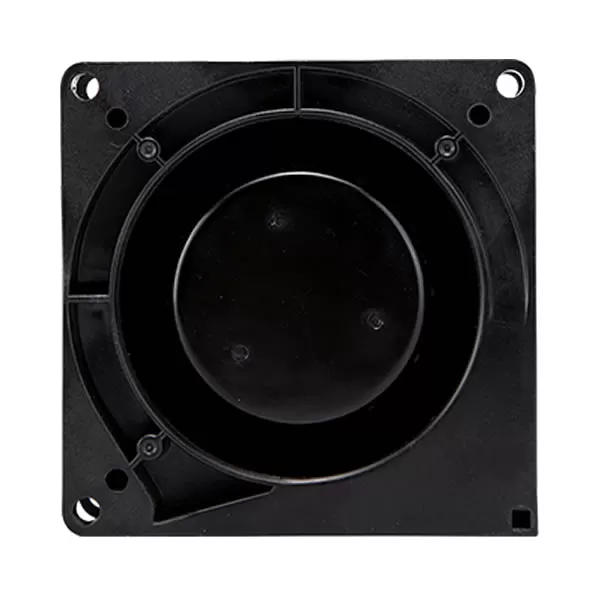

WT12K3 Comair Rotron 17000023A 80x80x32mm 12VDC 0.6A 6.6W 4500RPM 16.7CFM 28m³/h 53.7dB(A) Ball 0.77inH2O 191Pa 2 Wire Leads Blower fan
Specifications
| Model Number | WT12K3 |
|---|---|
| Air Flow | 16.7 CFM |
| Weight | 190 g |
| Manufacturer | Comair Rotron |
| Series | Whiffet DC |
| Dimensions | 80x80x32 mm |
| Voltage Rating | 12 VDC |
| Fan Type | DC |
| Operating Voltage | 6 – 14VDC |
| Current Rating | 0.6 A |
| Power Rating | 6.6 W |
| Fan Speed | 4500 RPM |
| Air Flow (m3) | 28 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 17000023A |
| Noise Level | 53.7 dB(A) |
| Static Pressure | 0.77 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 55000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Plastic, Black, UL 94V-0 |
| Termination | 2 Wire Leads |
| Category | Blower |
| Static Pressure Pa | 191 Pa |
| Product PDF | WT12K3-Comair-Rotron.pdf |
