Description

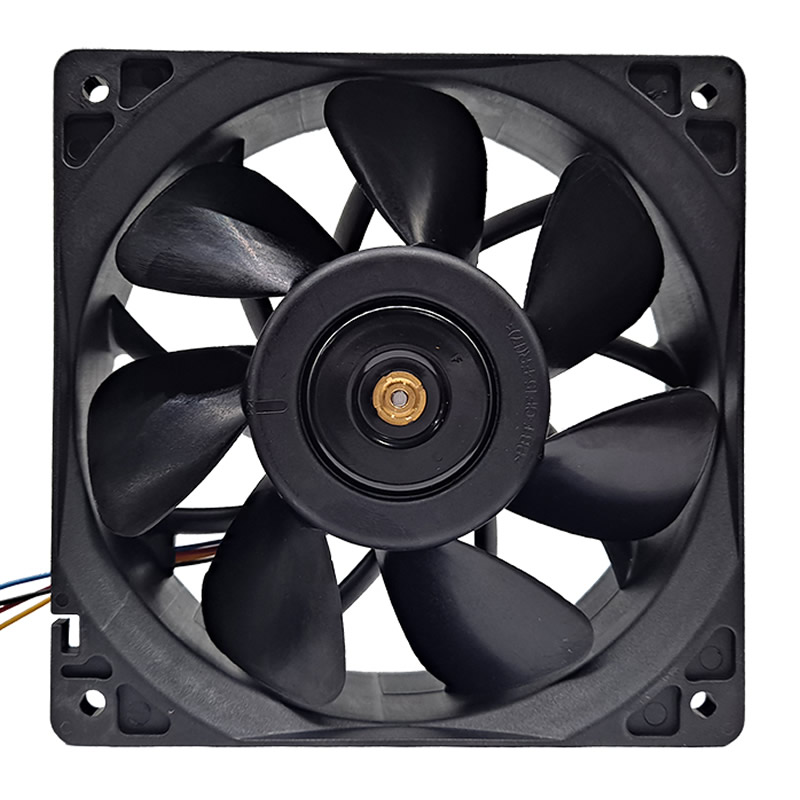

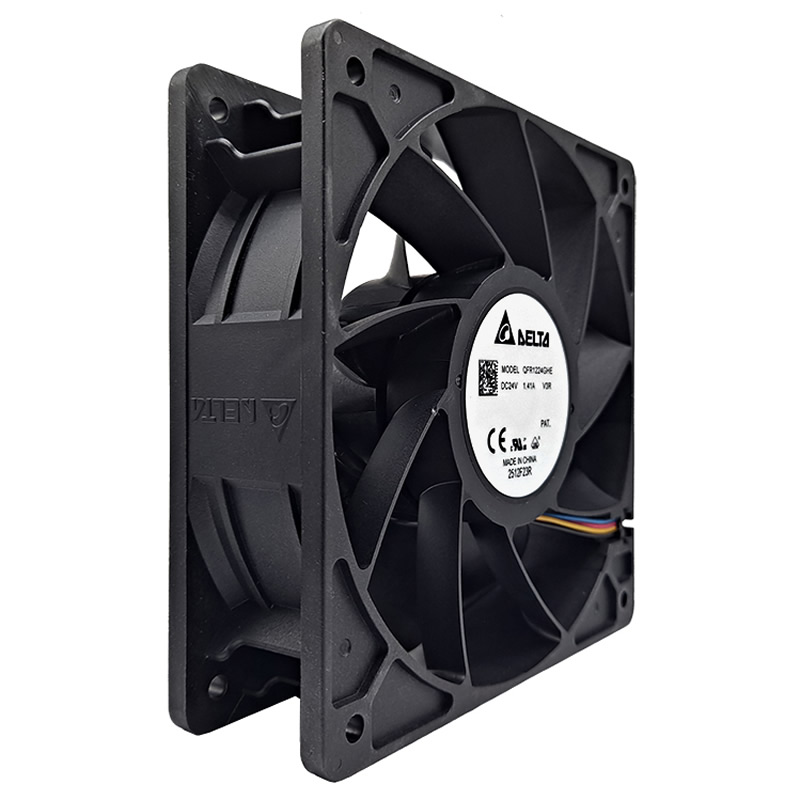

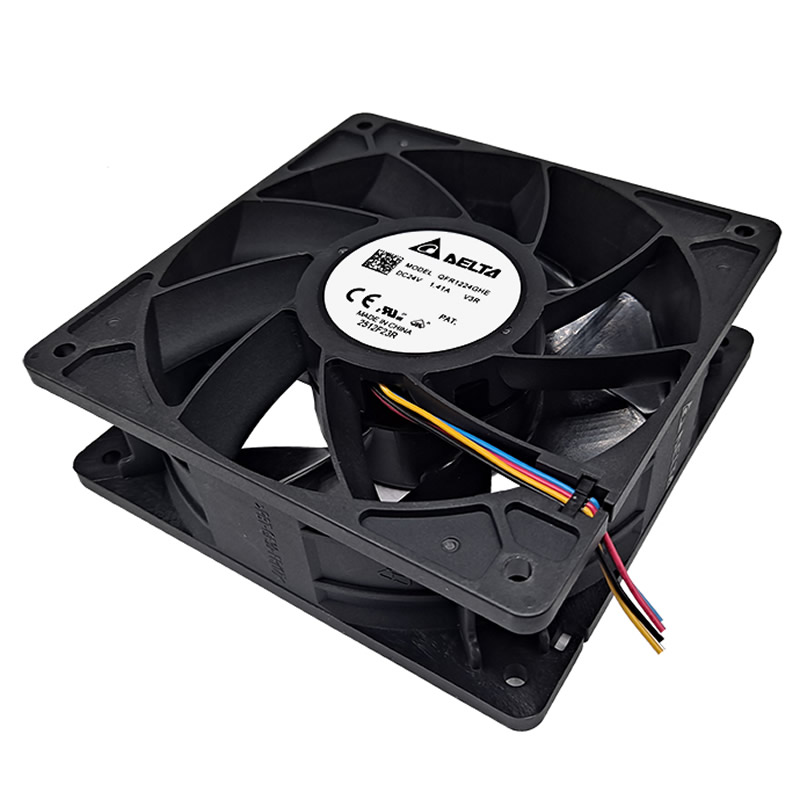

QFR1224GHE-V3R Delta 120x120x38mm 24VDC 1.41A 206.71CFM 6000RPM 64dB(A) IP51 Ball Bearing 4 Wire Lead PWM Control axial fan
Specifications
| Model | QFR1224GHE-V3R |
|---|---|
| Manufacturer | Delta Electronics |
| Voltage Rating | 24 VDC |
| Current Rating | 1.41 A |
| Dimensions | 120x120x38 mm |
| Air Flow | 206.71 CFM |
| Fan Speed | 6000 RPM |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Noise Level | 64 dB(A) |
| IP Rating | IP51 |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Number of blades | 7 |
| Termination | 4 Wire Leads |
| Features | Auto Restart, Locked Rotor Protection, PWM Control |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | QFR1224GHE-V3R-Delta.pdf |
