Description

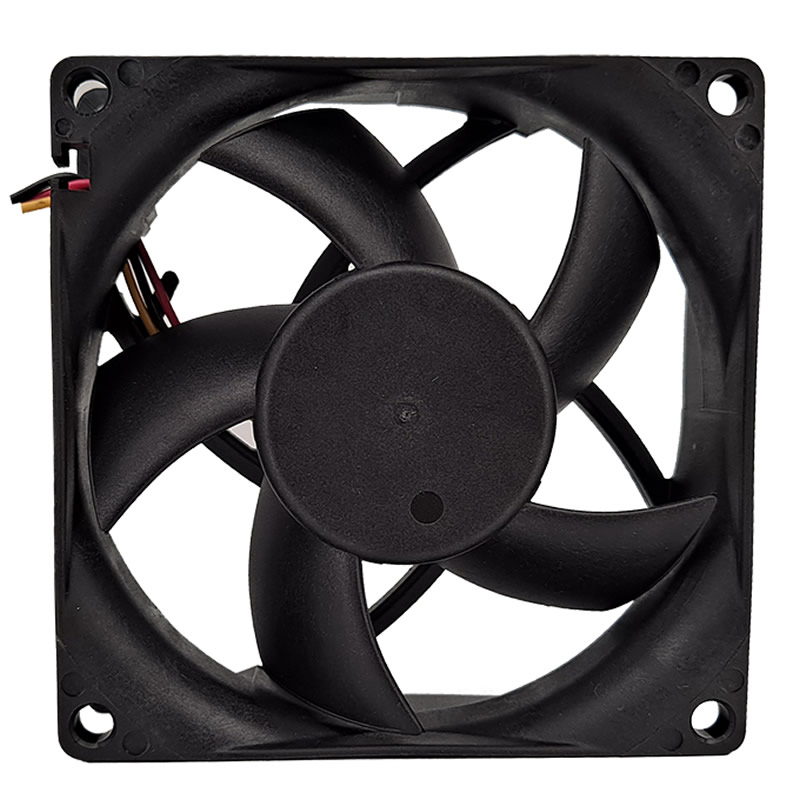

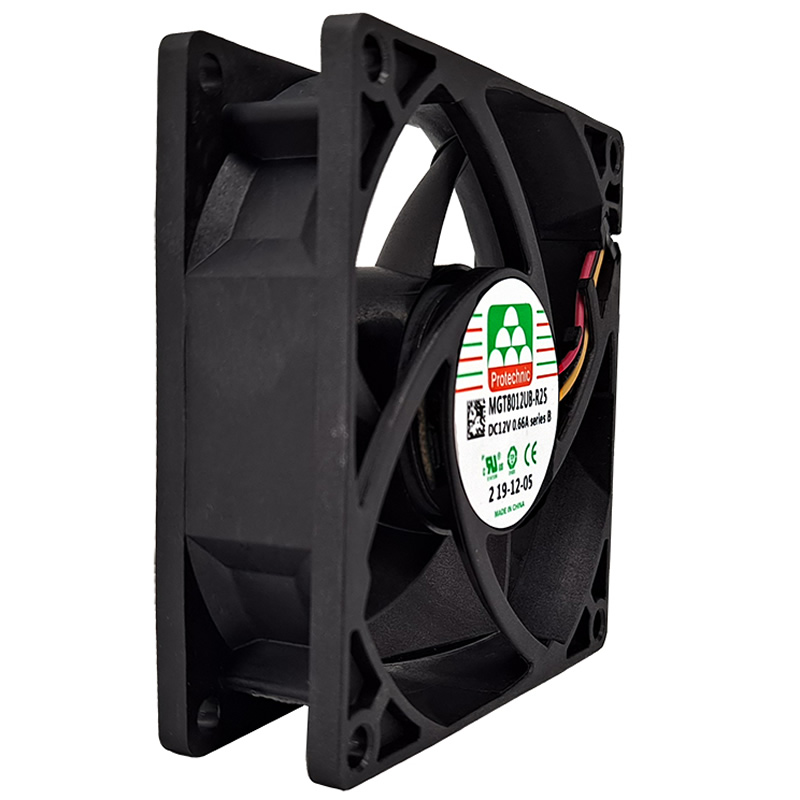

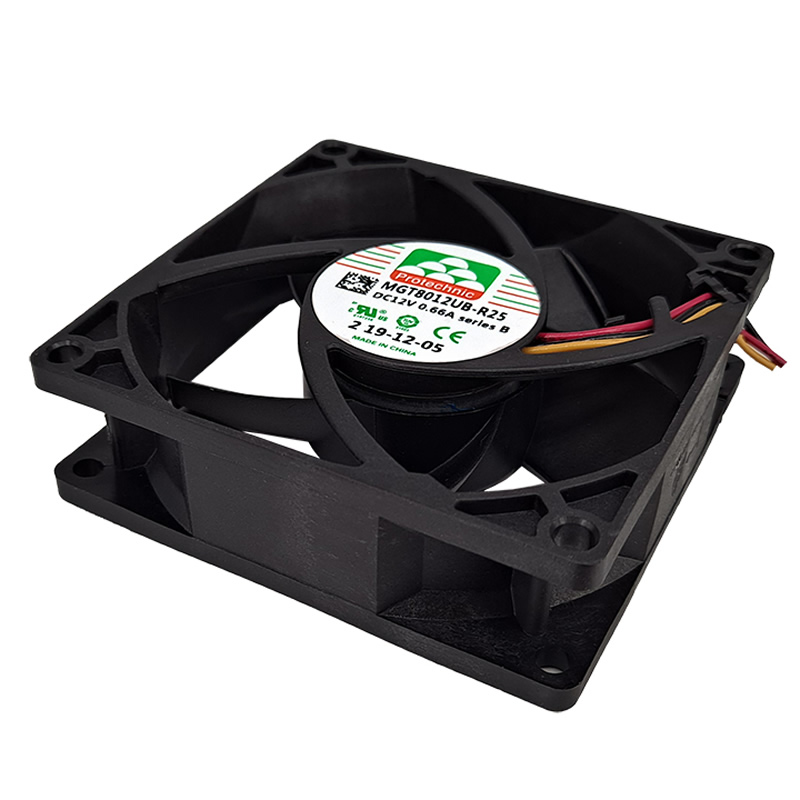

MGT8012UB-R25 Protechnic 12VDC 1.763m³/min 62.23CFM 96.24Pa 0.386inH2O 4800RPM 0.66A 7.92W 48.2dB(A) 80x80x25mm Ball Bearing 3 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT8012UB-R25 |
|---|---|
| Actual Power | 4.68 W |
| Fan Type | DC |
| Voltage Rating | 12 VDC |
| Air Flow CMM | 1.763 m³/min |
| Air Flow | 62.23 CFM |
| Static Pressure Pa | 96.24 Pa |
| Static Pressure mmAq | 9.81 mmAq |
| Static Pressure | 0.386 in H2O |
| Fan Speed | 4800 RPM |
| Current Rating | 0.66 A |
| Actual Current | 0.39 A |
| Power Rating | 7.92 W |
| Manufacturer | Protechnic Electric |
| Weight | 74 g |
| Noise Level | 48.2 dB(A) |
| Dimensions | 80x80x25 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 3 Wire Leads |
| Category | Axial Fan |
| Features | Rotate detection,automatic restart,locked current protection |
| series | 80*80*25mm seriesB |
| Shipping Weight | 0.25 kg |
| Product PDF | MGT8012UB-R25-Protechnic.pdf |
