Description

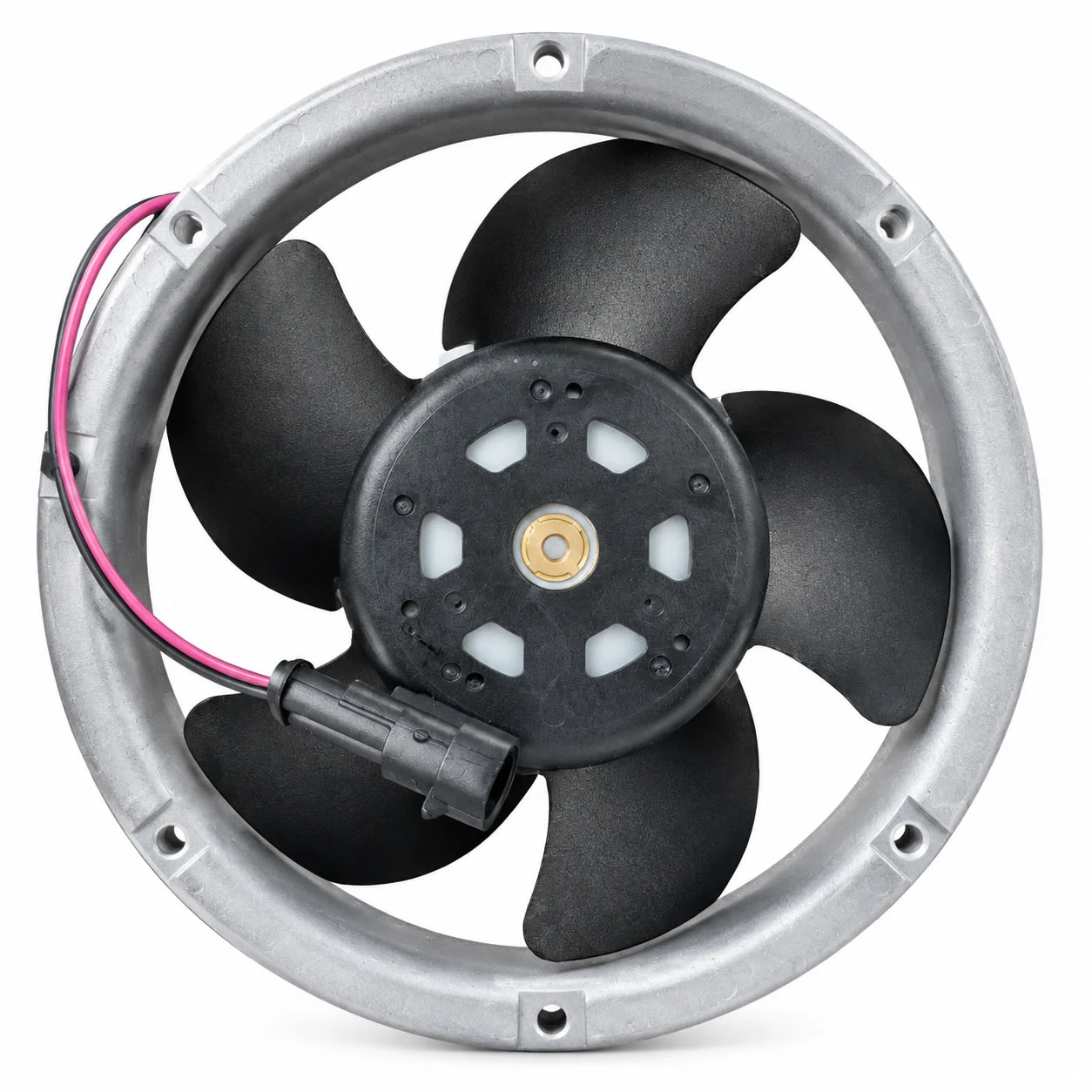

The Nidec D1751S24B6CZ-16 is a high-performance DC axial cooling fan designed for industrial thermal management applications including inverter systems, power electronics, control cabinets and other equipment requiring reliable forced air cooling. Manufactured by Nidec, this fan features a compact Ø172 x 51 mm circular frame design with a durable aluminum alloy structure for efficient airflow and mechanical strength.
The D1751S24B6CZ-16 operates with a 24VDC brushless DC motor and provides stable cooling performance with a rated current of 1.8A. The optimized axial airflow design delivers a maximum airflow of 10.2 m³/min (360 CFM) and maximum static pressure of 335 Pa (1.35 inch-H₂O), making it suitable for high-density electronic cooling applications.
Designed for reliable long-term operation, the Nidec D1751S24B6CZ-16 uses a both-side shielded ball bearing system, aluminum alloy die-cast venturi frame and ABS/PBT synthetic resin propeller. The fan features a 2-wire lead connection and integrated overcurrent protection with automatic reset functionality to improve operational reliability.
Key Features
- Original Nidec D1751S24B6CZ-16 DC axial fan
- 24VDC brushless DC motor design
- Ø172 x 51 mm circular fan structure
- Aluminum alloy die-cast venturi frame
- High airflow axial cooling design
- Both-side shielded ball bearing
- 2-wire lead connection
- Maximum airflow 360 CFM (10.2 m³/min)
- Maximum static pressure 335 Pa
- Overcurrent detection and automatic reset protection
Technical Specifications
| Brand | Nidec |
| Manufacturer | Nidec Servo Corporation |
| Model | D1751S24B6CZ-16 |
| Fan Type | DC Axial Fan |
| Frame Shape | Circular Frame |
| Dimensions | Ø172 x 51 mm |
| Rated Voltage | 24 VDC |
| Operating Voltage | 12 – 27.6 VDC |
| Rated Current | 1.8 A |
| Input Power | 43.2 W |
| Speed | 4800 min⁻¹ |
| Maximum Airflow | 10.2 m³/min (360 CFM) |
| Maximum Static Pressure | 335 Pa (1.35 inch-H₂O) |
| Noise | 59 dB |
| Bearing Type | Both-side shielded ball bearing |
| Motor Type | Brushless DC Motor |
| Frame Material | Aluminum alloy die castings |
| Impeller Material | ABS and PBT synthetic resins |
| Lead Wire | AWG24 UL3266 |
| Connection | 2 Wire Leads |
| Motor Protection | Overcurrent detection and automatic resetting by current limiting |
| Operating Temperature | -20°C to +60°C |
| Weight | 830 g |
Applications
The Nidec D1751S24B6CZ-16 DC axial fan is suitable for:
- Inverter cooling systems
- Variable frequency drive (VFD) equipment
- Power electronics cooling
- Industrial control cabinets
- Telecommunication equipment
- Electrical enclosure ventilation
Replacement Information
The Nidec D1751S24B6CZ-16 is a 24VDC circular DC axial cooling fan designed for applications requiring a Ø172 x 51 mm installation size, high airflow capability and reliable brushless motor operation. Before replacement, confirm voltage, mounting dimensions, airflow requirements and electrical specifications to ensure compatibility.
Specifications
| Manufacturer | Nidec Corporation |
|---|---|
| Fan Size | Ø 172 x 51 mm |
| Voltage Rated | 24 VDC |
| Cooling Type | Axial Fan |
| Air Flow Range | 150 – 500 CFM ( 255 – 850 m³/h ) |
| Static Pressure Range | 10 – 50 mmH₂O ( 100 – 500 Pa ) |
| Fan Speed Range | 4,500 – 8,000 RPM |
| Noise | 45 – 60 dB(A) (Moderate) |
| Shipping Weight | 1.5 kg |
