Description

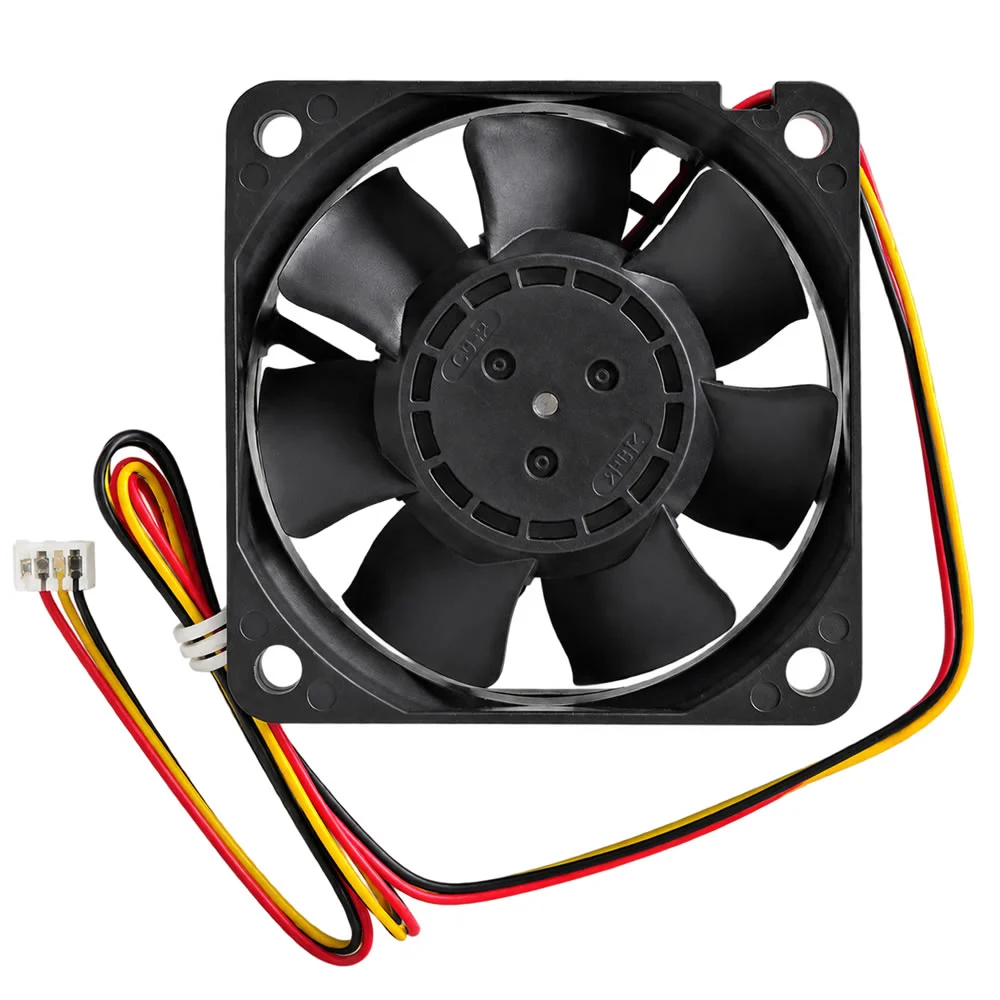

The NMB 06025SS-24K-AL-D1 is a compact, energy-efficient 24 VDC brushless axial cooling fan designed for continuous thermal management in high-reliability industrial systems. Built in a standard 60 x 60 x 25 mm (2.36 x 2.36 x 0.98 inches) PBT plastic frame, this model incorporates high-precision dual ball bearings for enhanced thermal longevity. Operating on a 24 VDC supply with an ultra-low rated current draw of only 0.06 A (1.44 W power consumption), it features a 3-wire lead assembly (+Red, -Black, Yellow FG) terminated with a 3-pin connector for real-time tachometer speed telemetry and closed-loop hardware monitoring.
Key Features
- Industry-standard 60 x 60 x 25 mm (2.36 x 2.36 x 0.98 inches) footprint manufactured with UL 94V-0 rated PBT plastic housing.
- Ultra-low power operation drawing 24 VDC / 0.06 A (1.44 W) for reduced energy usage and minimized thermal dissipation.
- 3-Wire Lead Wire configuration (+Red, -Black, Yellow 3rd Wire) featuring FG (Frequency Generator) tachometer speed output.
- Pre-fitted 3-pin connector assembly for quick plug-and-play installation into system controller boards.
- High-precision dual ball bearing system guaranteeing an L10 life expectancy of 60,000 hours at 40°C ambient.
- Built-in electronic motor protection including Auto-Restart on locked rotor condition and Reverse Polarity Protection.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | NMB (Minebea Co., Ltd.) |
| Manufacturer Part Number (MPN) | 06025SS-24K-AL-D1 |
| Product Series | 06025SS Series |
| Fan Type | Brushless DC (BLDC) Axial Cooling Fan |
| Physical Dimensions (L x W x H) | 60 x 60 x 25 mm (2.36 x 2.36 x 0.98 inches) |
| Frame & Impeller Material | Plastic (PBT UL 94V-0) |
| Electrical Termination | 3 Wire Leads with 3-Pin Connector (+Red, -Black, Yellow FG) |
| Sensor / Signal Output | FG (Tachometer / Speed Sensor Output) |
| Rated Voltage | 24 VDC |
| Operating Voltage Range | 14.0 V ~ 27.6 VDC |
| Rated Current | 0.06 A |
| Rated Power | 1.44 W |
| Rated Speed | 3,800 RPM |
| Max. Airflow | 19.4 CFM (0.55 m³/min) |
| Max. Static Pressure | 0.15 inH2O (38.0 Pa) |
| Acoustic Noise Level | 30.0 dB(A) |
| Bearing Type | Dual Ball Bearing |
| Motor Protection | Auto-Restart & Reverse Polarity Protection |
| Operating Temperature | -10°C to +70°C (14°F to 158°F) |
| Life Expectancy (L10) | 60,000 Hours @ 40°C |
| Agency Approvals | UL, CSA, VDE, CE, RoHS Compliant |
| Net Weight | 65 g (0.14 lbs) |
Applications
- Cooling for 24V industrial control boxes, PLC racks, and automation equipment requiring speed sensor feedback.
- Heat dissipation in energy-sensitive power supplies, solar inverters, and battery management systems.
- Thermal management in telecommunications nodes, network routers, and embedded server hardware.
Frequently Asked Questions & Technical Support
What is the function of the yellow wire and 3-pin connector on the 06025SS-24K-AL-D1?
The yellow wire serves as an FG (Frequency Generator) speed sensor output, providing continuous pulsed tachometer signals to the mainboard controller. The pre-terminated 3-pin connector allows direct plug-and-play connection into standard board headers.
What is the power consumption of this specific NMB model?
Operating on a 24 VDC supply with a low rated current draw of 0.06 A, the 06025SS-24K-AL-D1 consumes only 1.44 W of power while maintaining effective 19.4 CFM air delivery.
How can I request 3D CAD files or submit a volume RFQ for 06025SS-24K-AL-D1?
Procurement managers and hardware engineers can request 3D STEP models, official engineering datasheets, or volume wholesale quotes by contacting our technical sales team with the exact MPN (06025SS-24K-AL-D1) and target batch quantities.
