Description

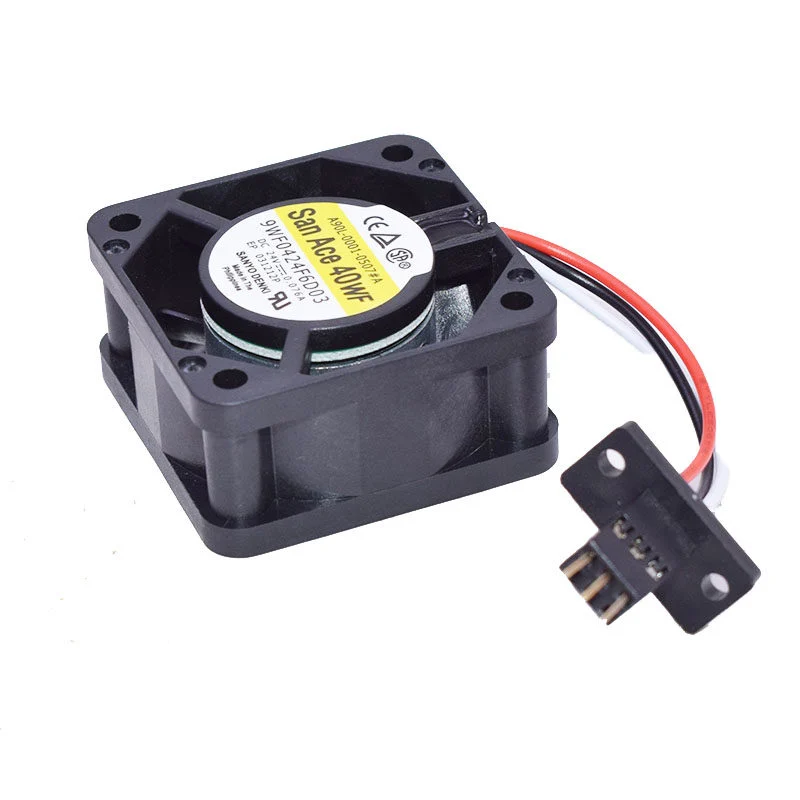

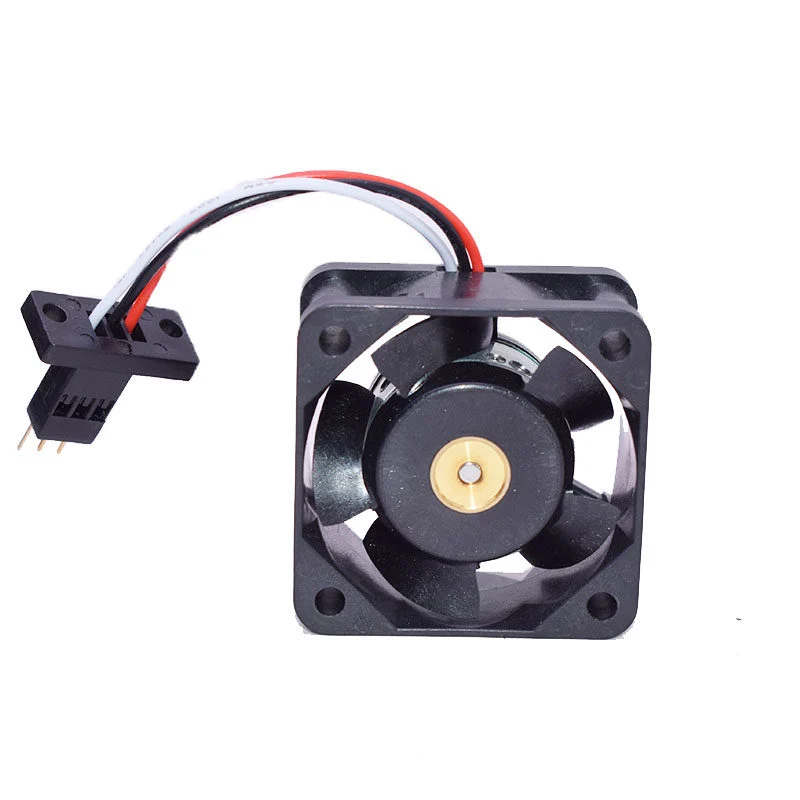

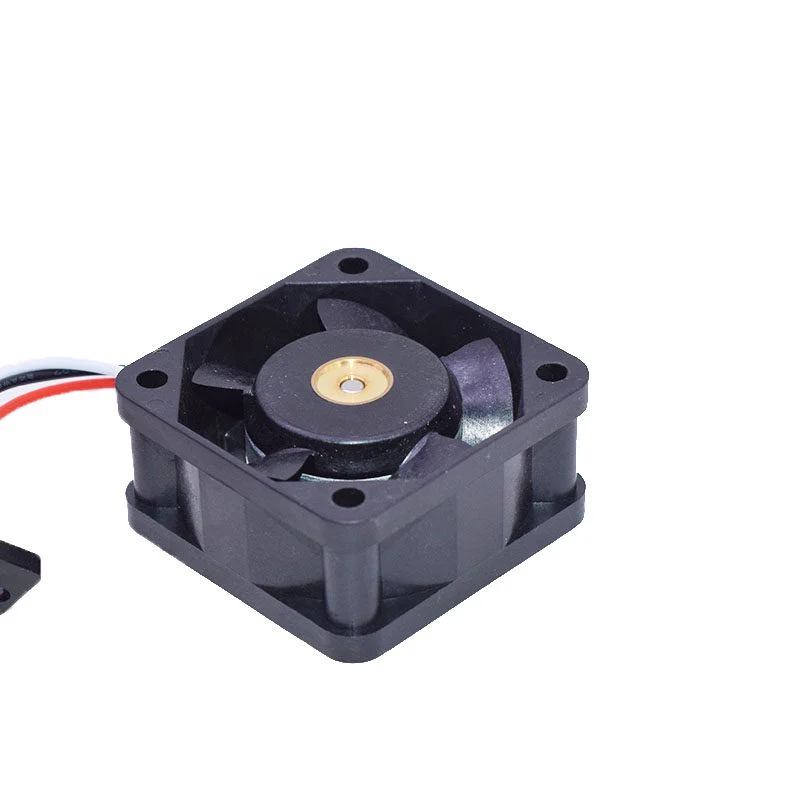

The Sanyo Denki 9WF0424F6D03 is a San Ace 40WF series 24VDC brushless DC axial fan designed for industrial cooling applications. With a compact 40 x 40 x 20 mm frame size, this fan provides reliable airflow performance for FANUC servo amplifiers, CNC control systems, and industrial automation equipment.
The 9WF0424F6D03 is identified for FANUC A90L-0001-0507#A cooling fan applications and is commonly used in FANUC CNC equipment requiring a compact 24VDC cooling solution with a 3-wire connector and rotation detection function.
Featuring a brushless DC motor, ball bearing construction, and industrial-grade reliability, the Sanyo Denki San Ace 40WF 9WF0424F6D03 is designed for continuous operation in electronic cooling systems where stable performance and long service life are required.
Key Features
- Original Sanyo Denki San Ace 40WF series DC axial fan
- Used for FANUC A90L-0001-0507#A servo amplifier cooling applications
- Compact 40 x 40 x 20 mm installation size
- 24VDC brushless motor design
- Ball bearing construction for reliable continuous operation
- 3-wire connection with dedicated 3-pin connector
- Rotation detection feedback function
- CE, UL Recognized and CSA certified design
- Suitable for industrial CNC and automation cooling applications
Technical Specifications
| Brand | Sanyo Denki |
| Series | San Ace 40WF |
| Model | 9WF0424F6D03 |
| FANUC Part Number | A90L-0001-0507#A |
| Fan Type | DC Axial Fan |
| Motor Type | Brushless DC Motor |
| Rated Voltage | 24 VDC |
| Rated Current | 0.076 A |
| Input Power | 1.8 W |
| Dimensions | 40 x 40 x 20 mm |
| Bearing Type | Ball Bearing |
| Connection Type | 3 Wire |
| Connector Type | 3-Pin Connector |
| Function | Rotation Detection Feedback |
| Certifications | CE, UL Recognized, CSA |
Applications
- FANUC CNC machines
- FANUC servo amplifiers
- CNC control systems
- Industrial automation equipment
- Servo drive cooling systems
- Electronic control cabinets
- Industrial electronic equipment cooling
Replacement Information
The Sanyo Denki 9WF0424F6D03 is commonly referenced as the replacement fan for FANUC A90L-0001-0507#A applications. The complete FANUC part number suffix should be verified before replacement to ensure correct connector, wiring configuration, and installation compatibility.
Equivalent search references include:
- Sanyo Denki 9WF0424F6D03
- FANUC A90L-0001-0507#A
- A90L-0001-0507/A
- San Ace 40WF 24VDC cooling fan
Specifications
| Manufacturer | Sanyo Denki |
|---|---|
| Fan Size | 40 x 40 x 20 mm |
| Voltage Rated | 24 VDC |
| Cooling Type | Axial Fan |
| Shipping Weight | 0.25 kg |
