Description

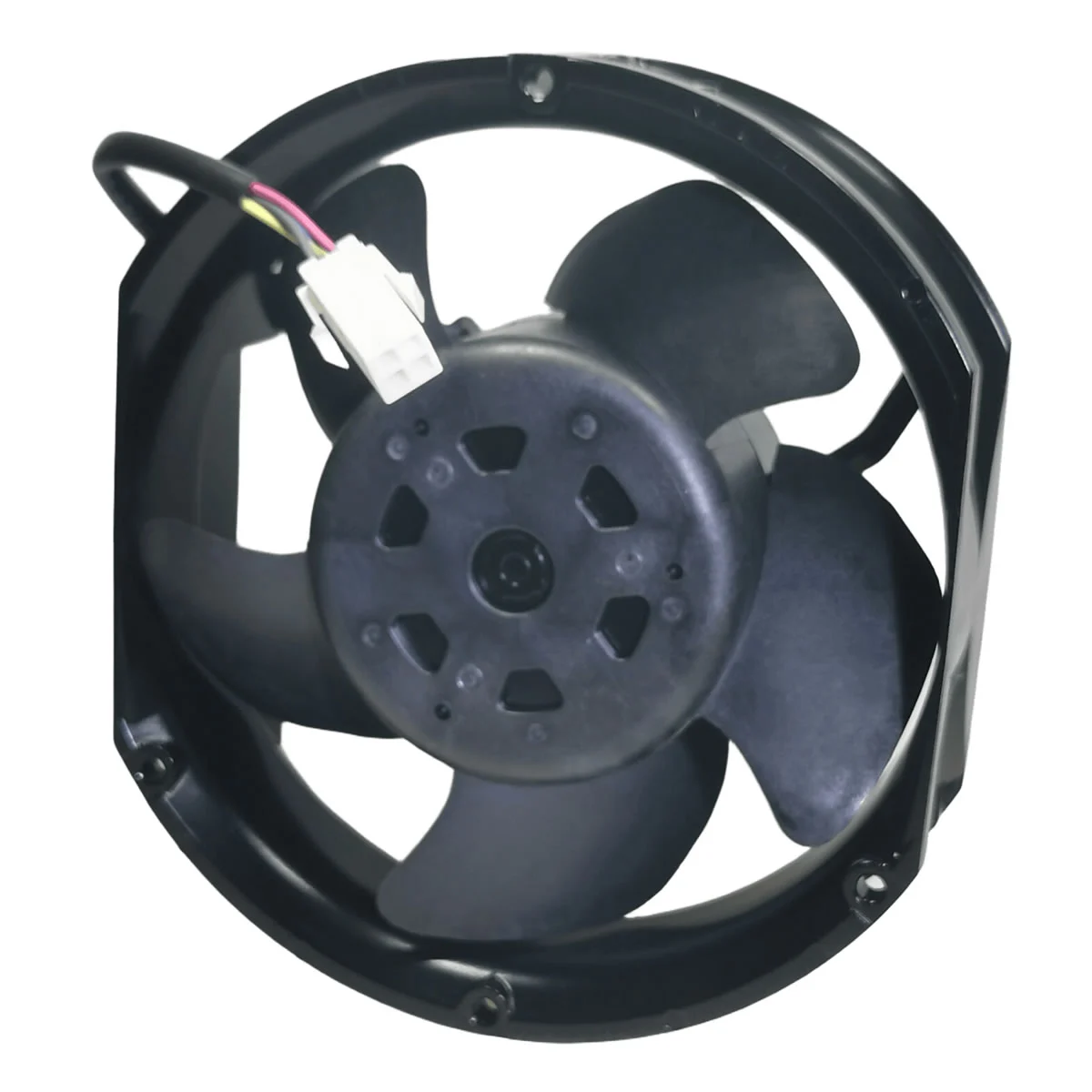

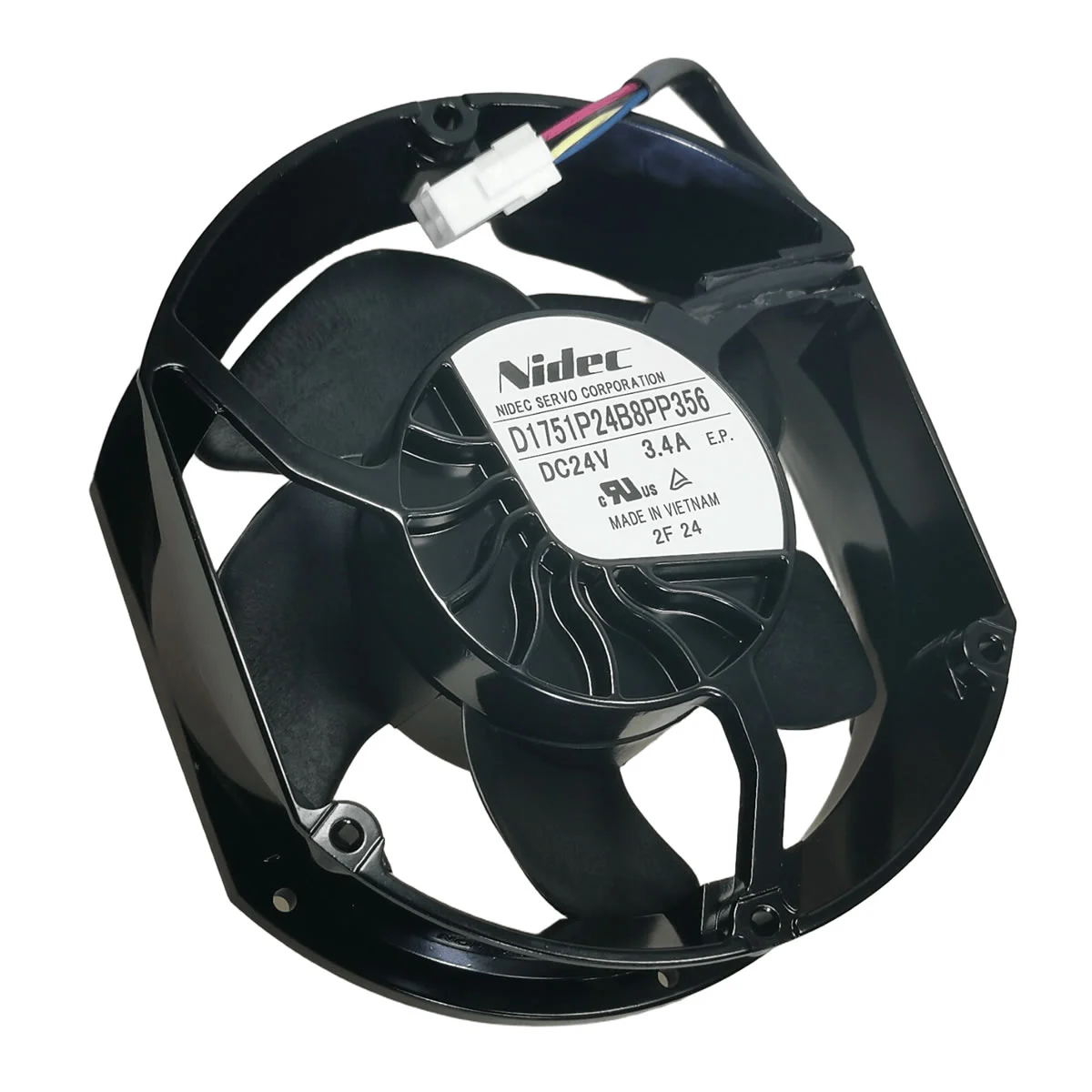

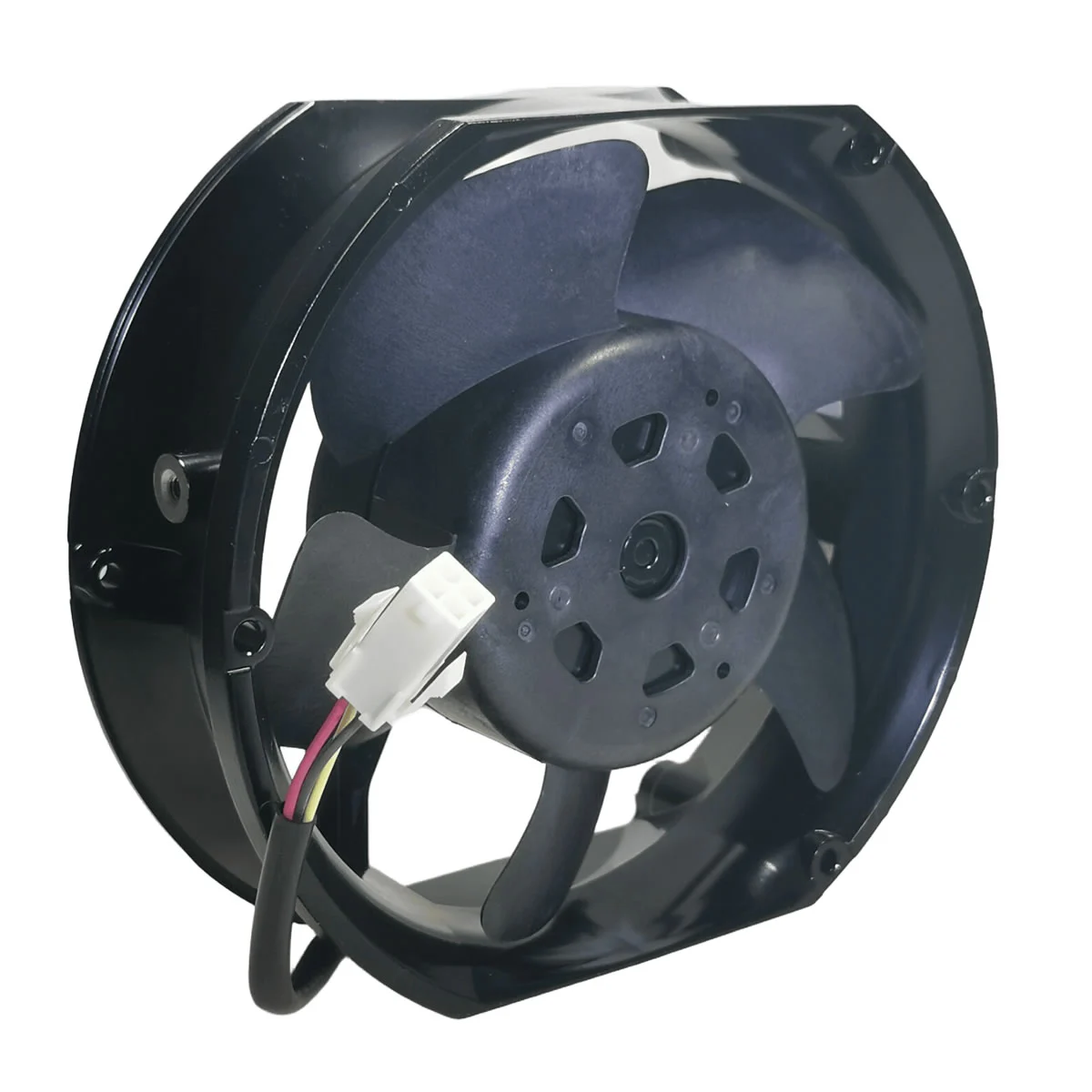

The Nidec D1751P24B8PP356 is a high-performance DC axial cooling fan manufactured by Nidec Servo Corporation. Designed for industrial thermal management applications, this fan provides reliable cooling performance for equipment requiring efficient airflow, compact dimensions, and continuous operation capability.
The D1751P24B8PP356 operates with a 24VDC rated voltage and 3.4A rated current. With a compact 172 x 150 x 51 mm frame size, this DC brushless axial fan is suitable for applications where high airflow and reliable cooling are required within limited installation space.
Featuring a durable motor construction and industrial-grade design, the Nidec D1751P24B8PP356 is widely used for cooling applications including industrial equipment, inverter systems, power electronics, automation equipment, and other high-density electronic systems.
Key Features
- Original Nidec D1751P24B8PP356 cooling fan
- Nidec Servo Corporation DC brushless fan design
- 24VDC operating voltage
- 3.4A rated current
- 172 x 150 x 51 mm compact frame size
- 4-wire connection design
- High-performance DC axial airflow structure
- Suitable for industrial cooling applications
Technical Specifications
| Brand | Nidec |
| Manufacturer | Nidec Servo Corporation |
| Model | D1751P24B8PP356 |
| Fan Type | DC Axial Fan |
| Motor Type | Brushless DC Motor |
| Rated Voltage | 24 VDC |
| Rated Current | 3.4 A |
| Power Consumption | 81.6 W |
| Dimensions | 172 x 150 x 51 mm |
| Connection | 4 Wire |
| Country of Origin | Vietnam |
Mechanical Characteristics
| Fan Structure | Axial Flow Design |
| Frame Size | 172 mm Class |
| Dimensions | 172 x 150 x 51 mm |
| Motor Design | Brushless DC Motor |
Applications
- Industrial equipment cooling
- Power electronics cooling
- Inverter cooling systems
- Automation equipment cooling
- Control cabinet cooling
- Electronic equipment thermal management
Replacement Information
The Nidec D1751P24B8PP356 is a 24VDC industrial axial cooling fan designed for high-performance thermal management applications. When selecting a replacement fan, verify voltage, current rating, dimensions, connector configuration, airflow requirements, and mechanical mounting compatibility.
Specifications
| Manufacturer | Nidec Corporation |
|---|---|
| Fan Size | 172 x 150 x 51 mm |
| Voltage Rated | 24 VDC |
| Cooling Type | Axial Fan |
| Shipping Weight | 1.5 kg |
