Description

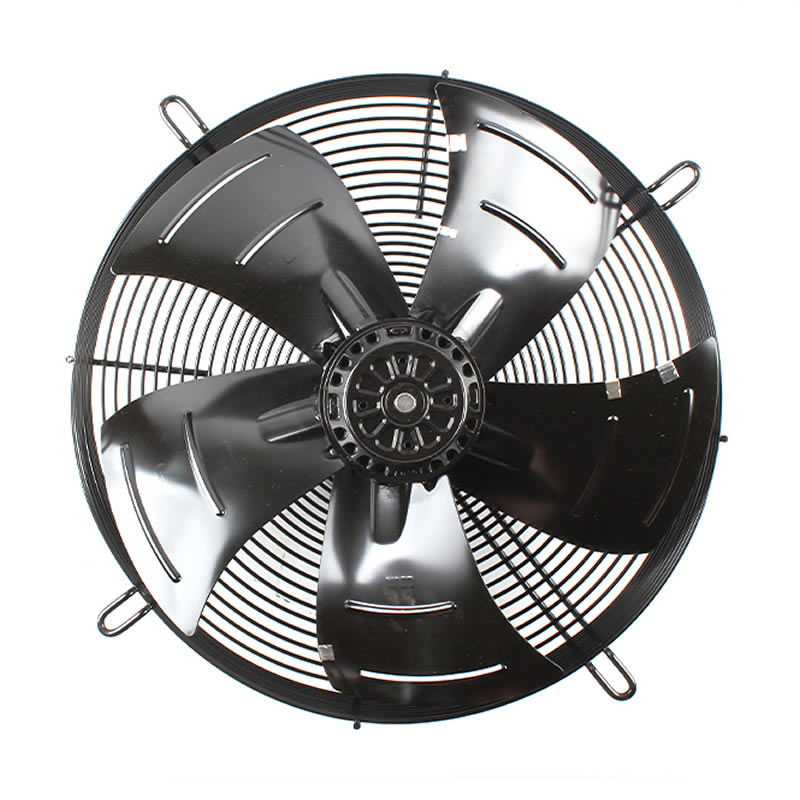

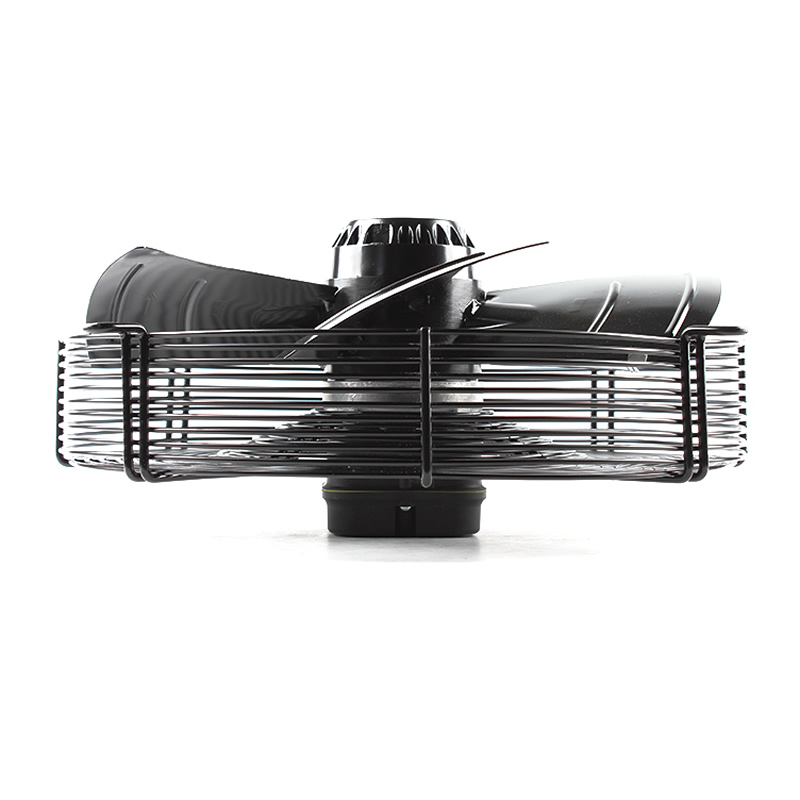

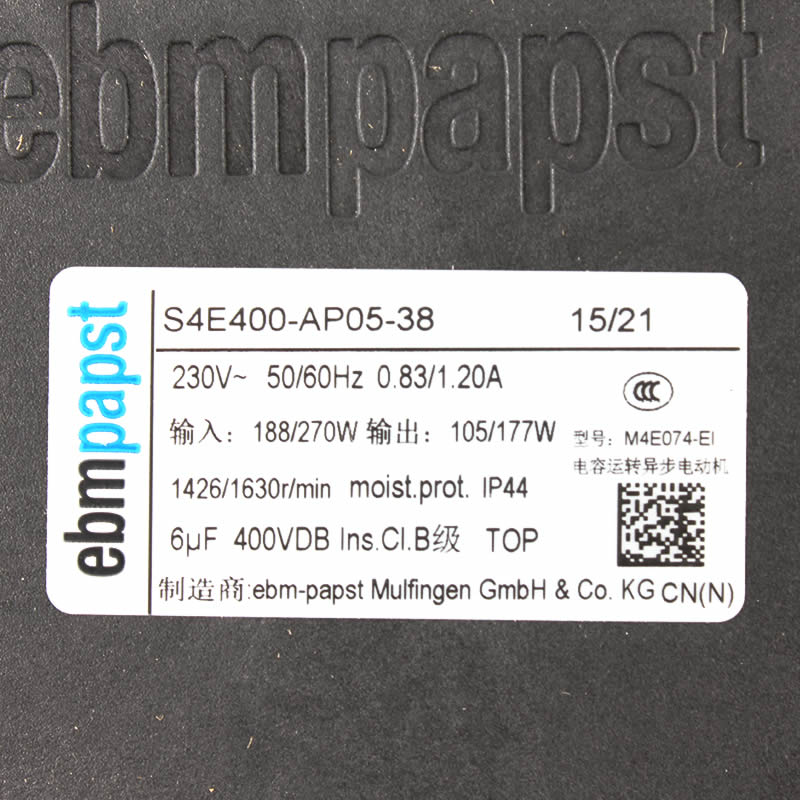

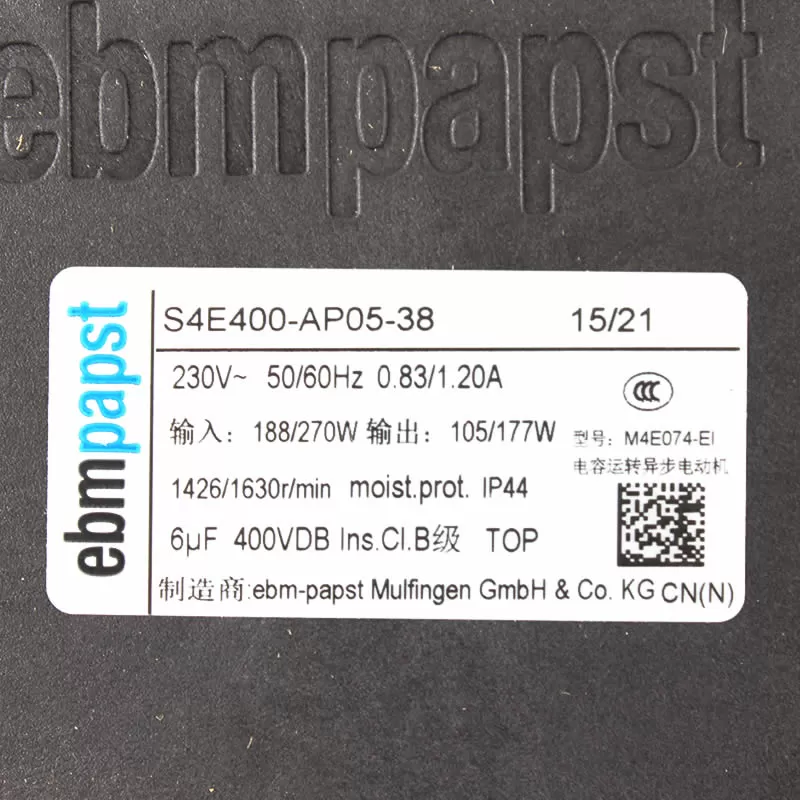

S4E400-AP05-38 ebmpapst 400mm 230VAC Ball Bearing IP44 2-Wire Leads AC axial fan
The ebm-papst S4E400-AP05-38 is a robust 230 VAC AC axial fan engineered for efficient air movement in demanding environments. This 400 mm fan features 5 steel sickle-shaped blades, operating at 1460 RPM (50Hz) / 1620 RPM (60Hz) with power consumption of 188 W (0.83 A) / 270 W (1.20 A) respectively. Its IP44 protection and integrated thermal overload protector enable it to withstand operating temperatures from -25°C to +35°C, weighing 6.16 kg. It provides stable and reliable performance whether used in condensers and evaporators for refrigeration, or various air conditioning and ventilation systems.
Specifications
| Model | S4E400-AP05-38 |
|---|---|
| Manufacturer | ebm-papst |
| Dimensions | 400 mm |
| Voltage Rating | 230 VAC |
| Current Rating | 0.83 A, 1.2 A |
| Power Rating | 188 W, 270 W |
| Number of blades | 5 |
| Bearing Type | Ball Bearing |
| Fan Type | AC |
| IP Rating | IP44 |
| Termination | 2 Wire Leads |
| Subcategory | AC axial fan |
