Description

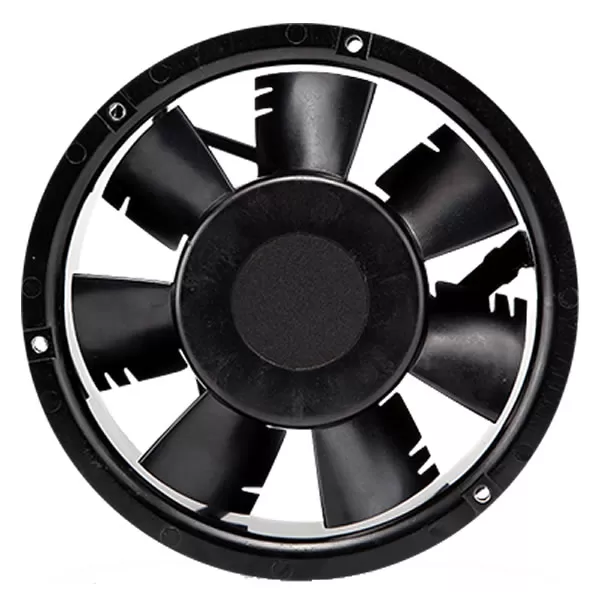

PQD48B6D3-E2 Comair Rotron 16002542A 172x51mm 48VDC 0.45A 22W 3600RPM 240CFM 415.2m³/h 52dB(A) Ball 0.82inH2O 204Pa Harness Axial DC fan
Specifications
| Model Number | PQD48B6D3-E2 |
|---|---|
| Air Flow | 240 CFM |
| Weight | 840 g |
| Manufacturer | Comair Rotron |
| Series | Patriot DC |
| Dimensions | 172×51 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 36-48VDC |
| Current Rating | 0.45 A |
| Power Rating | 22 W |
| Fan Speed | 3600 RPM |
| Air Flow (m3) | 415.2 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 16002542A |
| Noise Level | 52 dB(A) |
| Static Pressure | 0.82 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 58000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die Cast Aluminum |
| Termination | Harness |
| Category | Axial DC |
| Static Pressure Pa | 204 Pa |
| Product PDF | PQD48B6D3-E2-Comair-Rotron.pdf |
