Description

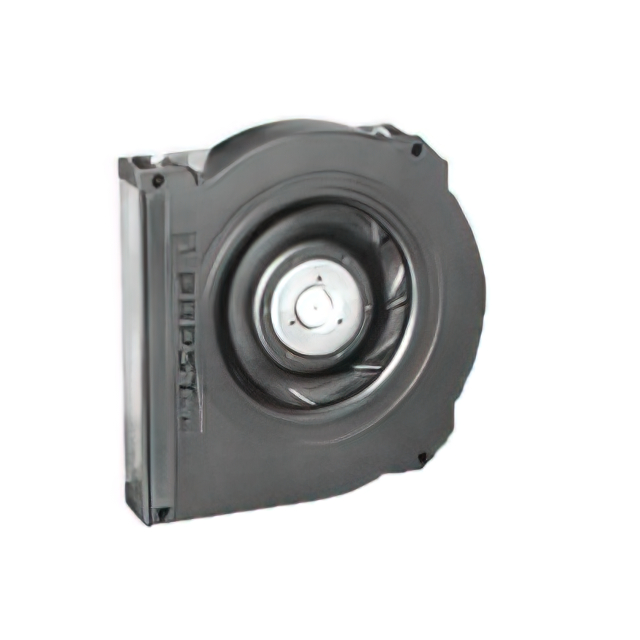

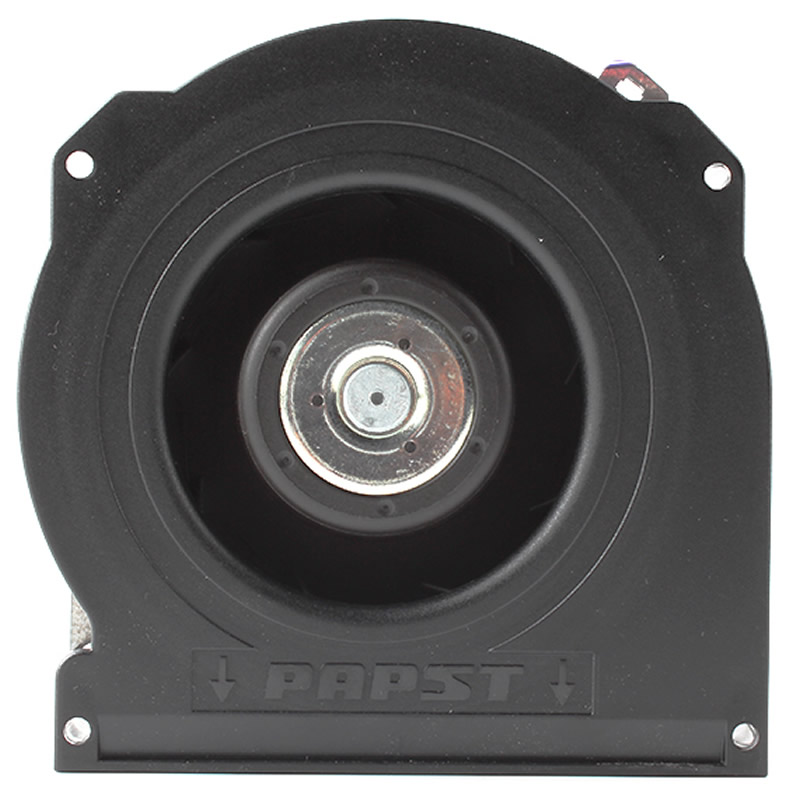

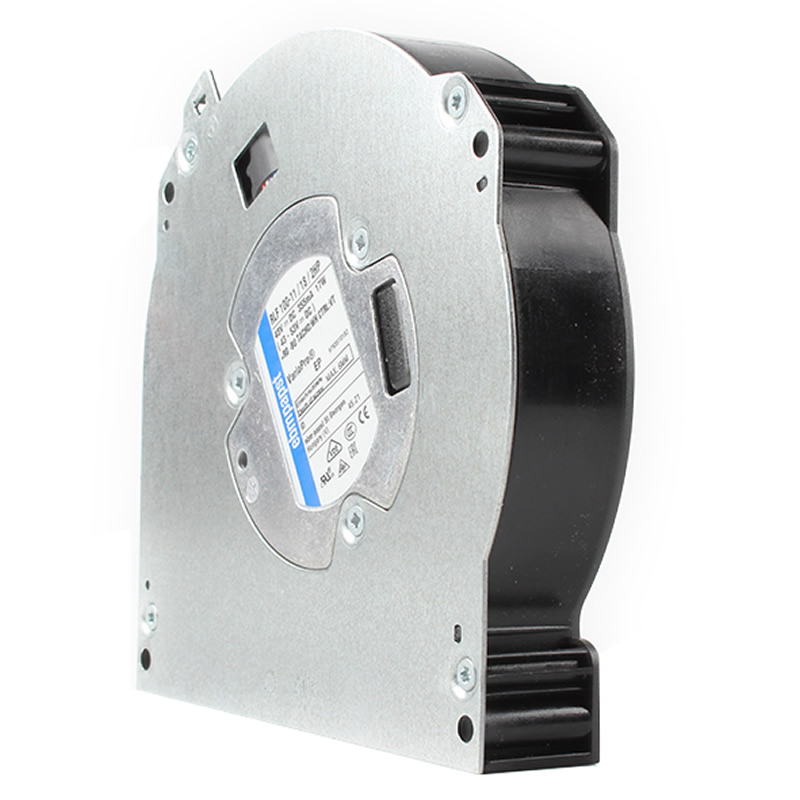

RLF100-11/18/2HP-182 ebmpapst DC 6400RPM 80m3/h 43~53V 127x127x25mm 48VDC 355mA 17W Ball Bearing 2 WireLeads centrifugal compact fan
Specifications
| Part Number | RLF100-11/18/2HP-182 |
|---|---|
| Manufacturer | ebm-papst |
| Fan Speed | 6400 RPM |
| Air Flow | 47.1 CFM |
| Voltage Range | 43~53V |
| Fan Type | DC |
| Air Flow (m3) | 1.32m³/min |
| Series | RLF100 |
| Voltage Rating | 48 VDC |
| Bearing Type | Ball Bearing |
| Power Rating | 17 W |
| Termination | 2 Wire Leads |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
| category | Blower, Centrifugal |
| Air Flow CMH | 80 m³/h |
| Dimensions | 127x127x25 mm |
| Lifetime @ Temp | 72500 Hrs @ 40°C |
| Subcategory | DC centrifugal compact fan |
| Shipping Weight | 0.5 kg |
| Product PDF | RLF100-11182HP-182-ebmpapst.pdf |
