Description

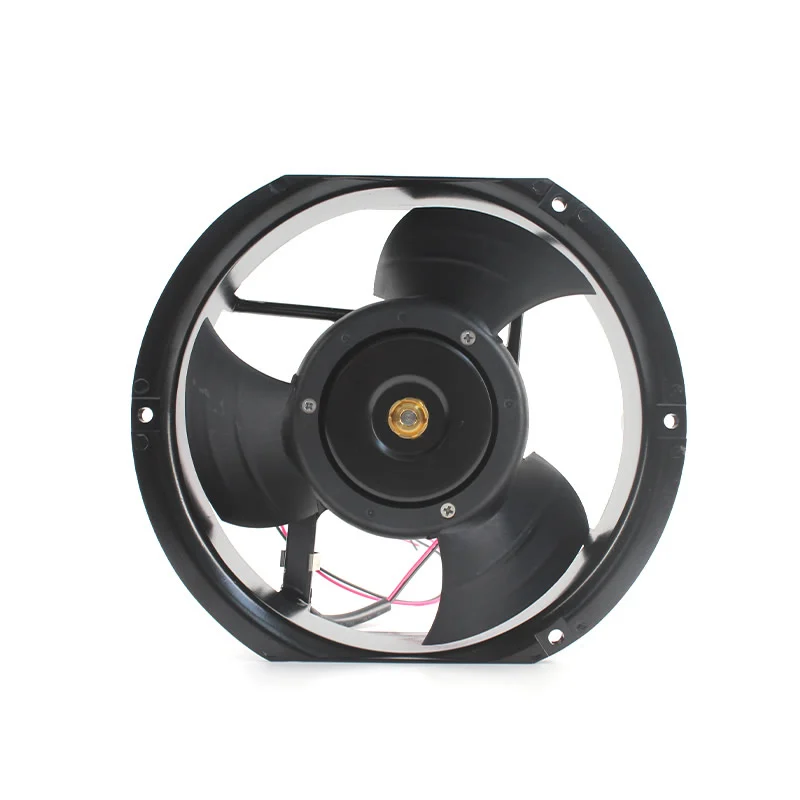

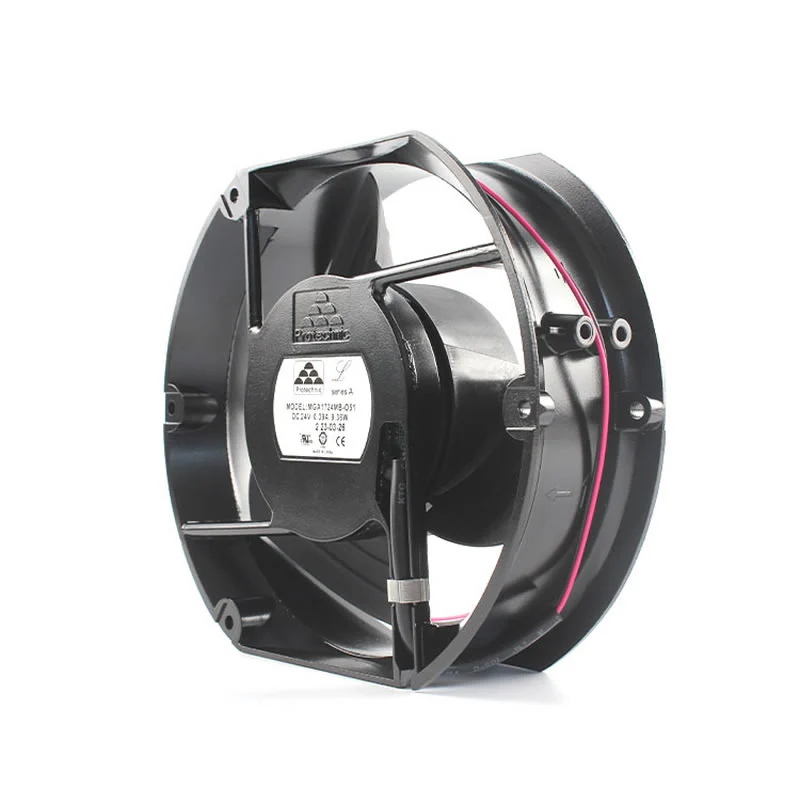

MGA1724MB-O51 Protechnic 24VDC 5.942m³/min 209.7CFM 122.63Pa 0.495inH2O 2800RPM 0.39A 9.36W 50dB(A) 172x150x50.8mm Ball Bearing 2 Wire Leads DC Axial Fan
Specifications
| Model Number | MGA1724MB-O51 |
|---|---|
| Actual Power | 8.88 W |
| Fan Type | DC |
| Voltage Rating | 24 VDC |
| Air Flow CMM | 5.942 m³/min |
| Air Flow | 209.7 CFM |
| Static Pressure Pa | 122.63 Pa |
| Static Pressure mmAq | 12.5 mmAq |
| Static Pressure | 0.495 in H2O |
| Fan Speed | 2800 RPM |
| Current Rating | 0.39 A |
| Actual Current | 0.37 A |
| Power Rating | 9.36 W |
| Manufacturer | Protechnic Electric |
| Weight | 830 g |
| Noise Level | 50 dB(A) |
| Dimensions | 172x150x50.8 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 2 Wire Leads |
| Category | Axial Fan |
| Features | Automatic restart,locked current protection |
| series | 172*150*50.8mm seriesA |
| Shipping Weight | 1.5 kg |
| Product PDF | MGA1724MB-O51-Protechnic.pdf |
