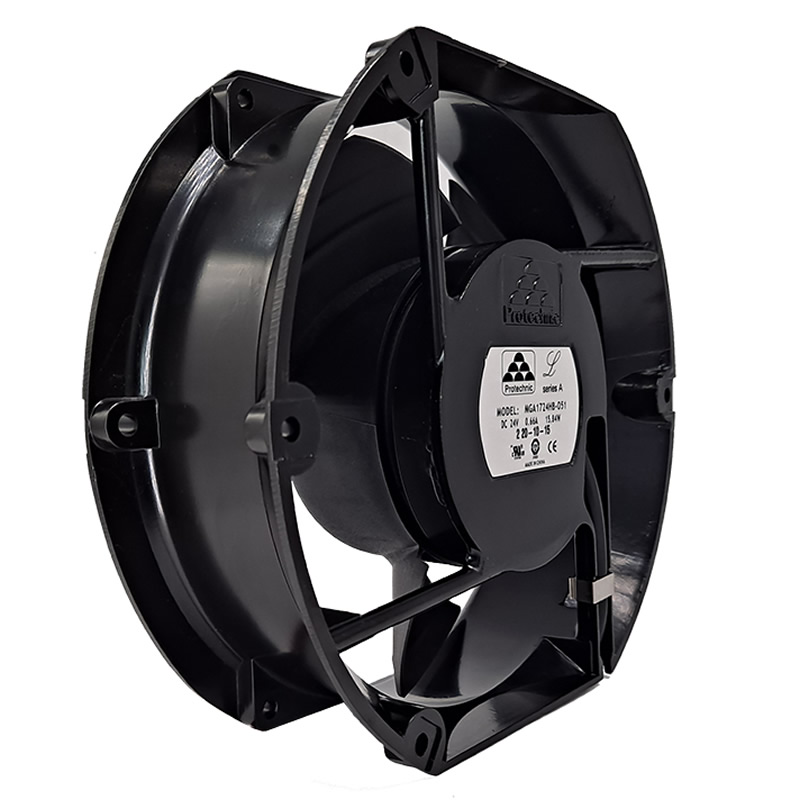

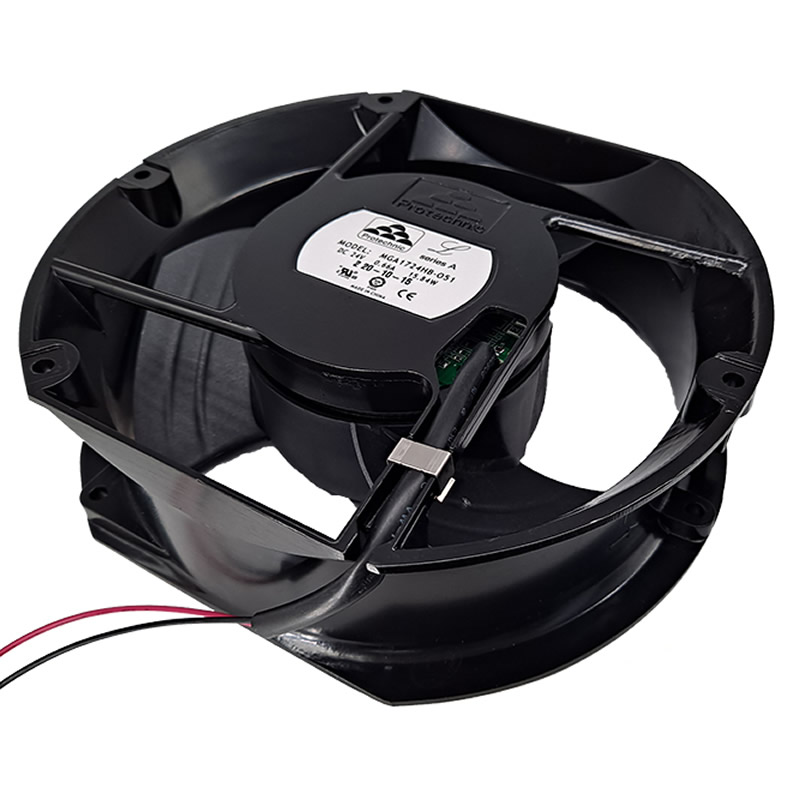

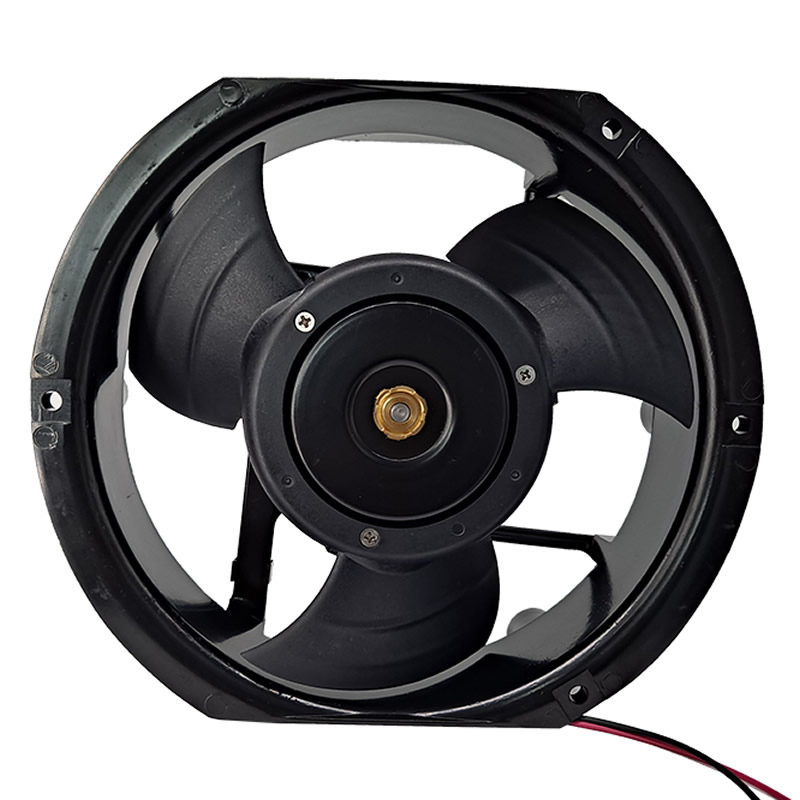

MGA1724HB-O51 Protechnic

$36.49

x
SKU: MGA1724HB-O51

Description

MGA1724HB-O51 Protechnic 24VDC 7.11m³/min 251CFM 176.58Pa 0.709inH2O 3350RPM 0.66A 15.84W 55dB(A) 172x150x50.8mm Ball Bearing 2 Wire Leads DC Axial Fan

Specifications

Model Number

MGA1724HB-O51

Actual Power

14.02 W

Fan Type

DC

Voltage Rating

24 VDC

Air Flow CMM

7.11 m³/min

Air Flow

251 CFM

Static Pressure Pa

176.58 Pa

Static Pressure mmAq

18 mmAq

Static Pressure

0.709 in H2O

Fan Speed

3350 RPM

Current Rating

0.66 A

Actual Current

0.58 A

Power Rating

15.84 W

Manufacturer

Protechnic Electric

Weight

830 g

Noise Level

55 dB(A)

Dimensions

172x150x50.8 mm

Bearing Type

Ball Bearing

Material Blade

Plastic

Material Frame

Plastic

Lifetime @ Temp

40000 Hrs @ 60°C

Operating Temperature

14 ~ 158°F (-10 ~ 70°C)

Storage Temperature

-40℃~70℃(5%~95% RH)

Approval Agency

CE, TUV, UL

Termination

2 Wire Leads

Category

Axial Fan

Features

Automatic restart,locked current protection

series

172*150*50.8mm seriesA
