Description

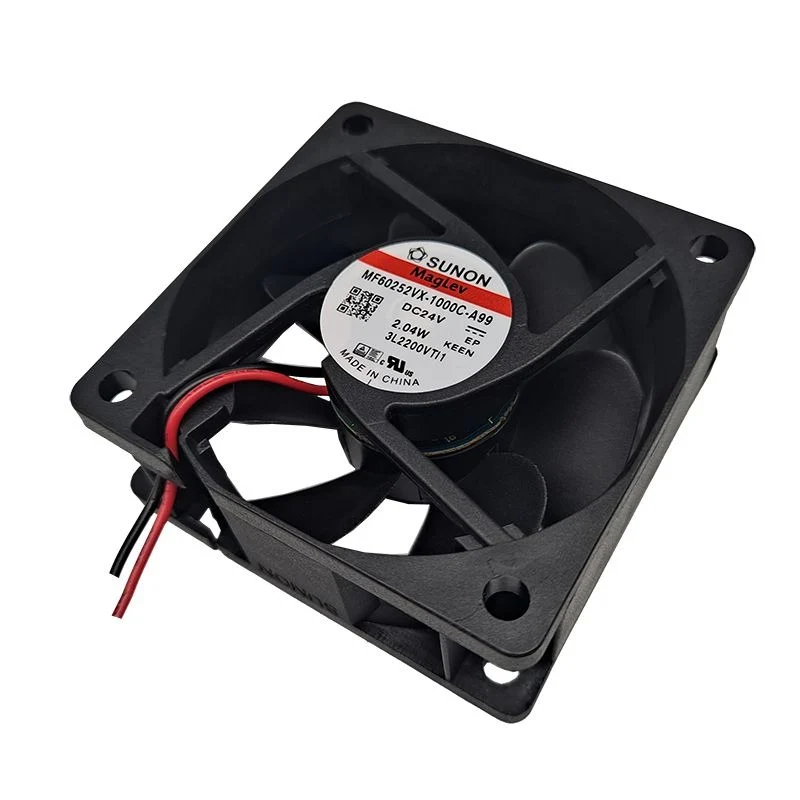

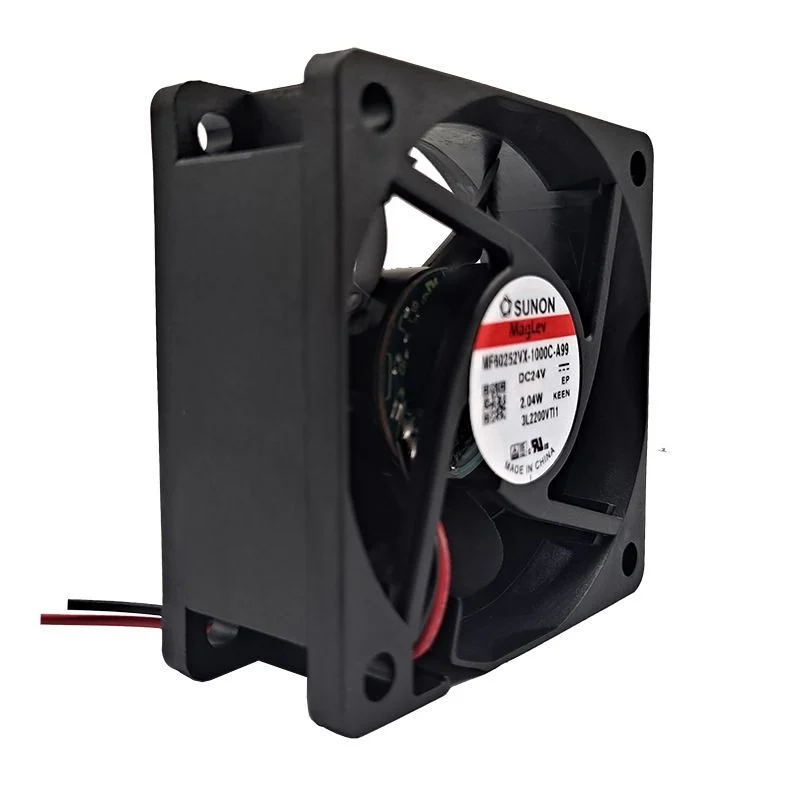

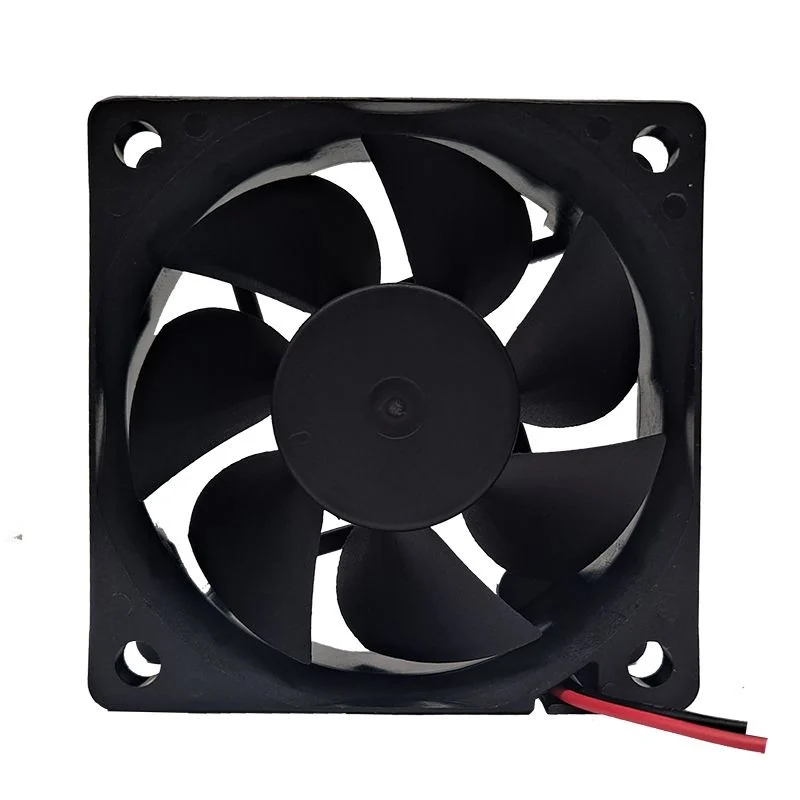

The SUNON MF60252VX-1000C-A99 is a 60mm DC axial fan from the SUNON MF Series, designed for reliable cooling in industrial equipment, electronic systems, and compact thermal management applications. Featuring a standard 60 x 60 x 25 mm frame size, 24 VDC rated voltage, and a Precise Vapo bearing system, this fan provides stable operation, reduced friction, and long service life. The MF60252VX-1000C-A99 uses a single phase, 4-pole brushless DC motor and operates at 5200 RPM, delivering 27 CFM airflow and 0.31 Inch-H₂O static pressure. With a UL 94V-0 thermoplastic PBT frame and blade construction, automatic restart protection, polarity protection, and a rated life expectancy of 70,000 hours, this 6025 axial fan is suitable for industrial controllers, power supplies, communication equipment, electronic enclosures, and OEM replacement applications.
Key Features
- Original SUNON MF Series DC axial fan
- Standard 60 x 60 x 25 mm (6025) frame size
- 24 VDC rated voltage
- Precise Vapo bearing system
- Single phase, 4-pole brushless DC motor
- Rated speed of 5200 RPM
- Airflow performance up to 27 CFM
- Low noise operation at 31.2 dB(A)
- Automatic restart and polarity protection
- UL 94V-0 thermoplastic PBT frame and fan blade
Technical Specifications
| Manufacturer | SUNON |
| Model | MF60252VX-1000C-A99 |
| Series | MF Series |
| Product Type | DC Axial Fan |
| Dimensions | 60 x 60 x 25 mm |
| Motor Design | Single Phase, 4 Pole Brushless DC Motor |
| Bearing System | Precise Vapo Bearing System |
| Rated Voltage | 24 VDC |
| Operating Voltage Range | 8~27.6 VDC |
| Starting Voltage | 8 VDC |
| Rated Current | 80 mA |
| Maximum Current | 92 mA |
| Rated Power Consumption | 1.92 W |
| Safety Power Consumption | 2.04 W |
| Maximum Power Consumption | 2.21 W |
| Rated Speed | 5200 RPM ±15% |
| Airflow | 27.0 CFM |
| Static Pressure | 0.31 Inch-H₂O |
| Noise Level | 31.2 dB(A) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Life Expectancy | 70,000 Hours at 40°C, 65% Humidity, 90% Confidence Level |
| Insulation Class | UL Class A |
| Frame Material | Thermoplastic PBT UL 94V-0 |
| Fan Blade Material | Thermoplastic PBT UL 94V-0 |
| Rotation Direction | Counter-clockwise viewed from front of fan blade |
| Mounting Holes | 4.3 mm diameter in 8 holes |
| Protection | Automatic Restart Protection, Polarity Protection |
| Weight | 45 g |
Applications
- Industrial control equipment
- Power supply cooling systems
- Communication equipment
- Electronic enclosures
- Networking equipment
- OEM replacement cooling applications
Replacement Information
The SUNON MF60252VX-1000C-A99 is suitable as a replacement 60mm DC axial fan for equipment requiring a standard 6025 fan size, 24VDC power supply, Precise Vapo bearing technology, and reliable airflow performance. Before replacement, verify the fan dimensions, voltage rating, connector configuration, airflow requirements, mounting specifications, and electrical characteristics.
Specifications
| Manufacturer | Sunon Fans |
|---|---|
| Fan Size | 60 x 60 x 25 mm |
| Voltage Rated | 24 VDC |
| Cooling Type | Axial Fan |
| Air Flow Range | < 50 CFM ( < 85 m³/h ) |
| Static Pressure Range | < 2.5 mmH₂O ( < 25 Pa ) |
| Fan Speed Range | 4,500 – 8,000 RPM |
| Shipping Weight | 0.25 kg |
