Description

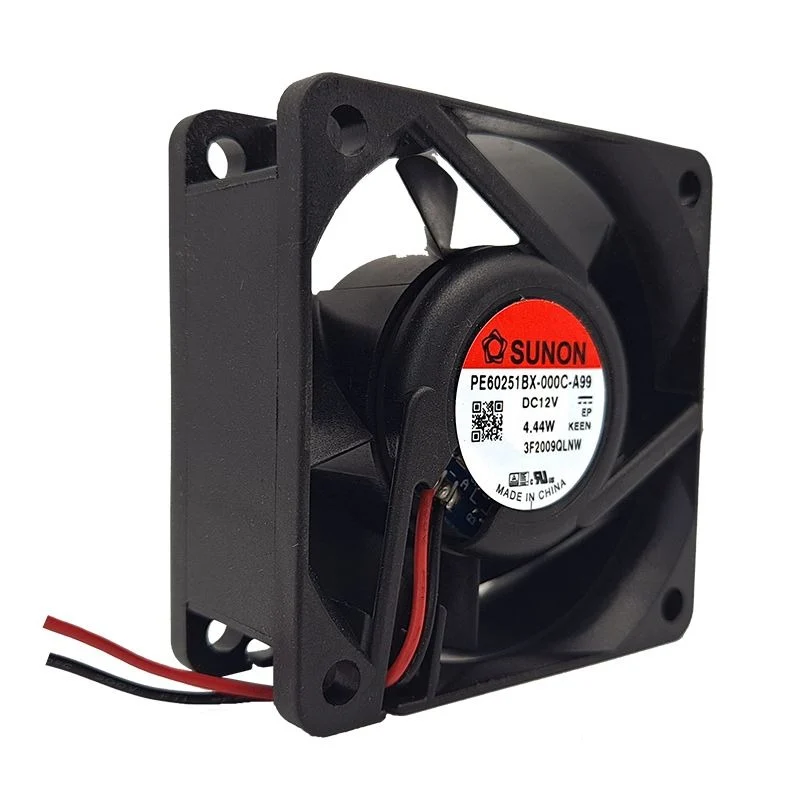

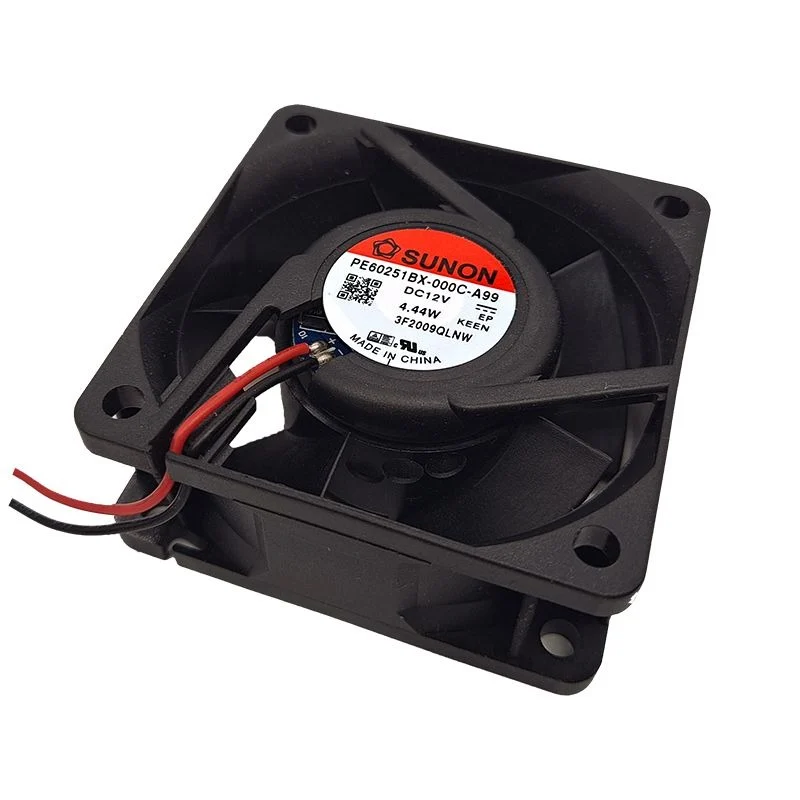

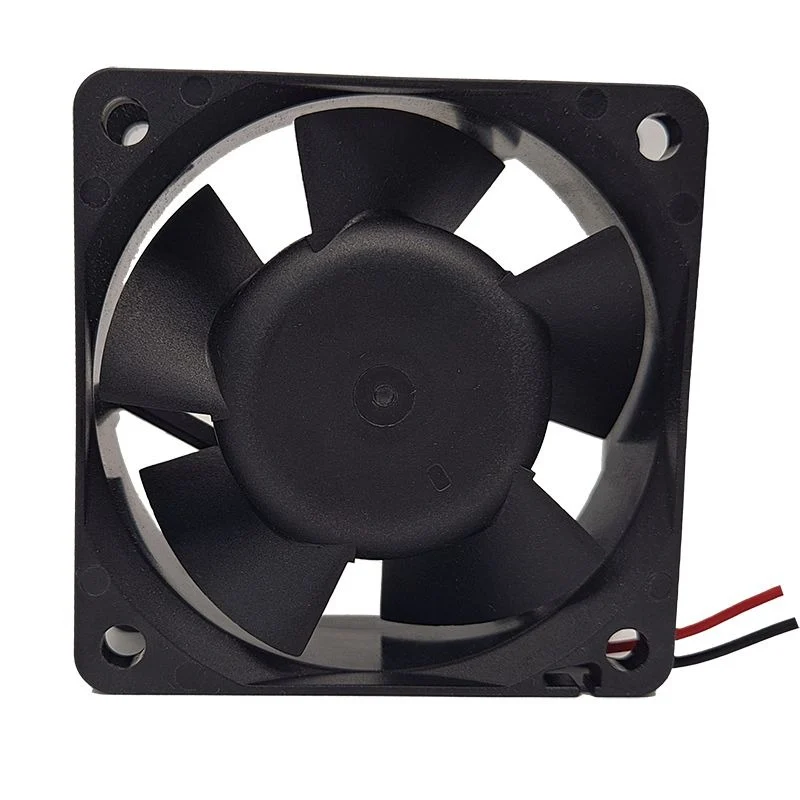

The SUNON PE60251BX-000C-A99 is a high-speed 60mm DC axial fan designed for industrial and electronic cooling applications requiring high airflow performance and reliable long-term operation. Featuring a standard 60 x 60 x 25 mm frame size, a 12 VDC rated voltage, and a precision ball bearing system, this fan provides stable performance for continuous equipment cooling. The PE60251BX-000C-A99 uses a 2-phase, 4-pole brushless DC motor and operates at 7600 RPM, delivering 40 CFM airflow and 0.64 inch-H₂O static pressure. With a UL 94V-0 rated thermoplastic PBT frame and fan blade, automatic restart protection, polarity protection, and a life expectancy of 70,000 hours, this 6025 axial fan is suitable for servers, networking equipment, industrial controllers, power supplies, and OEM cooling applications.
Key Features
- Original SUNON 6025 series DC axial fan
- 60 x 60 x 25 mm standard frame size
- 12 VDC rated voltage with 6~13.8 VDC operating range
- 2-phase, 4-pole brushless DC motor design
- Precision ball bearing system
- High-speed operation at 7600 RPM
- Airflow performance up to 40 CFM
- Automatic restart and polarity protection
- UL 94V-0 thermoplastic PBT frame and blade construction
- Long operating life up to 70,000 hours
Technical Specifications
| Manufacturer | SUNON |
| Model | PE60251BX-000C-A99 |
| Product Type | DC Axial Fan |
| Series | 6025 Series |
| Dimensions | 60 x 60 x 25 mm |
| Motor Type | 2 Phase, 4 Pole Brushless DC Motor |
| Bearing System | Precision Ball Bearing System |
| Rated Voltage | 12 VDC |
| Operating Voltage Range | 6~13.8 VDC |
| Starting Voltage | 6 VDC |
| Rated Current | 370 mA |
| Maximum Current | 426 mA |
| Rated Power Consumption | 4.44 W |
| Maximum Power Consumption | 5.12 W |
| Rated Speed | 7600 RPM ±15% |
| Airflow | 40 CFM |
| Static Pressure | 0.64 Inch-H₂O |
| Noise Level | 46.0 dB(A) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Life Expectancy | 70,000 Hours at 40°C, 65% RH, 90% Confidence Level |
| Insulation Class | UL Class A |
| Frame Material | Thermoplastic PBT UL 94V-0 |
| Fan Blade Material | Thermoplastic PBT UL 94V-0 |
| Rotation Direction | Counter-clockwise viewed from front of fan blade |
| Mounting Holes | 4.3 mm diameter in 8 holes |
| Protection | Automatic Restart Protection, Polarity Protection |
| Weight | 71 g |
Applications
- Servers and networking equipment
- Industrial control systems
- Power supply cooling
- Telecommunication equipment
- Electronic enclosures
- OEM replacement cooling systems
Replacement Information
The SUNON PE60251BX-000C-A99 is suitable as a replacement 60mm DC axial fan for equipment requiring a standard 6025 fan size, 12VDC power supply, high airflow performance, and reliable ball bearing operation. Before replacement, verify the fan dimensions, voltage rating, connector configuration, airflow requirements, mounting specifications, and electrical characteristics.
Specifications
| Manufacturer | Sunon Fans |
|---|---|
| Fan Size | 60 x 60 x 25 mm |
| Cooling Type | Axial Fan |
| Air Flow Range | < 50 CFM ( < 85 m³/h ) |
| Static Pressure Range | < 2.5 mmH₂O ( < 25 Pa ) |
| Fan Speed Range | 4,500 – 8,000 RPM |
| Noise | 45 – 60 dB(A) (Moderate) |
| Shipping Weight | 0.25 kg |
