Description

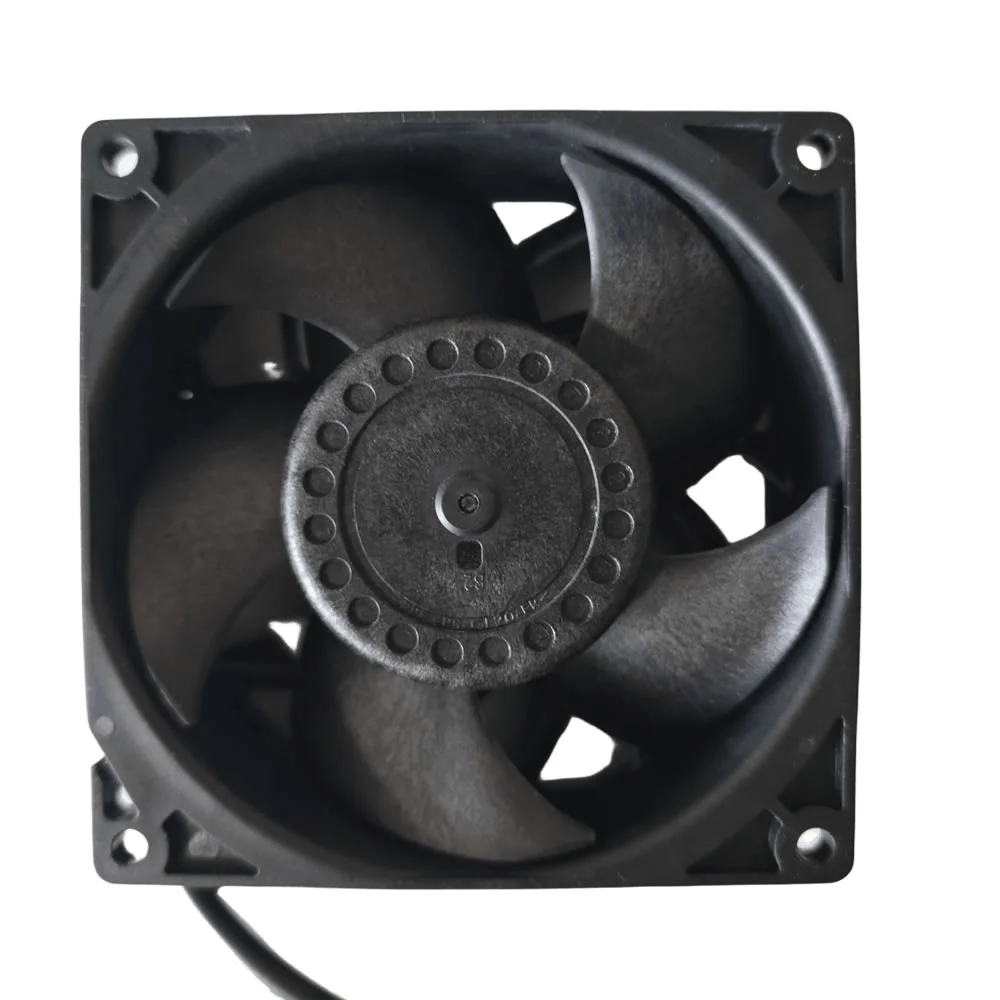

The Delta THD0924HE-FC7 is a high-performance 24V DC axial cooling fan manufactured by Delta Electronics for demanding thermal management applications. Designed with a compact 92 x 92 x 38 mm frame size, this fan delivers high airflow and high static pressure performance for industrial equipment, electronic systems, and high-density cooling applications.

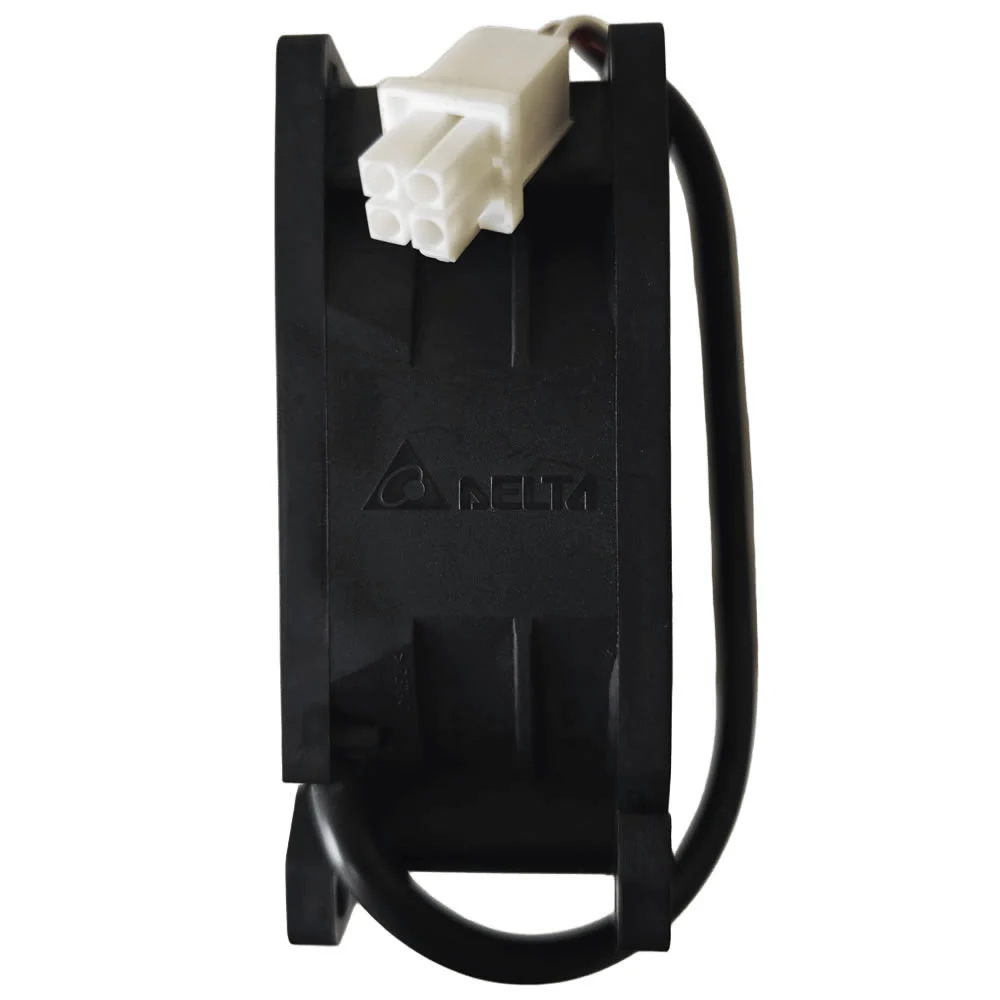

The THD0924HE-FC7 features a 4-wire brushless DC motor design with PWM speed control and tachometer feedback, allowing intelligent fan speed regulation and monitoring. With IP68 protection, ball bearing construction, and rotation lock protection, this fan is designed for reliable operation in demanding environments.
Providing a maximum airflow of 145.540 CFM and maximum static pressure of 2.334 inch-H2O, the Delta THD0924HE-FC7 is suitable for applications requiring strong cooling performance and stable airflow under high resistance conditions.
Key Features
- Original Delta Electronics THD0924HE-FC7 DC axial fan
- 24V DC brushless axial cooling fan
- 92 x 92 x 38 mm compact fan size
- 4-wire intelligent fan interface
- PWM speed control function
- Tachometer / FG speed feedback
- IP68 protection rating
- Ball bearing system
- High airflow and high static pressure design
- Rotation lock protection
- Long-life continuous operation design

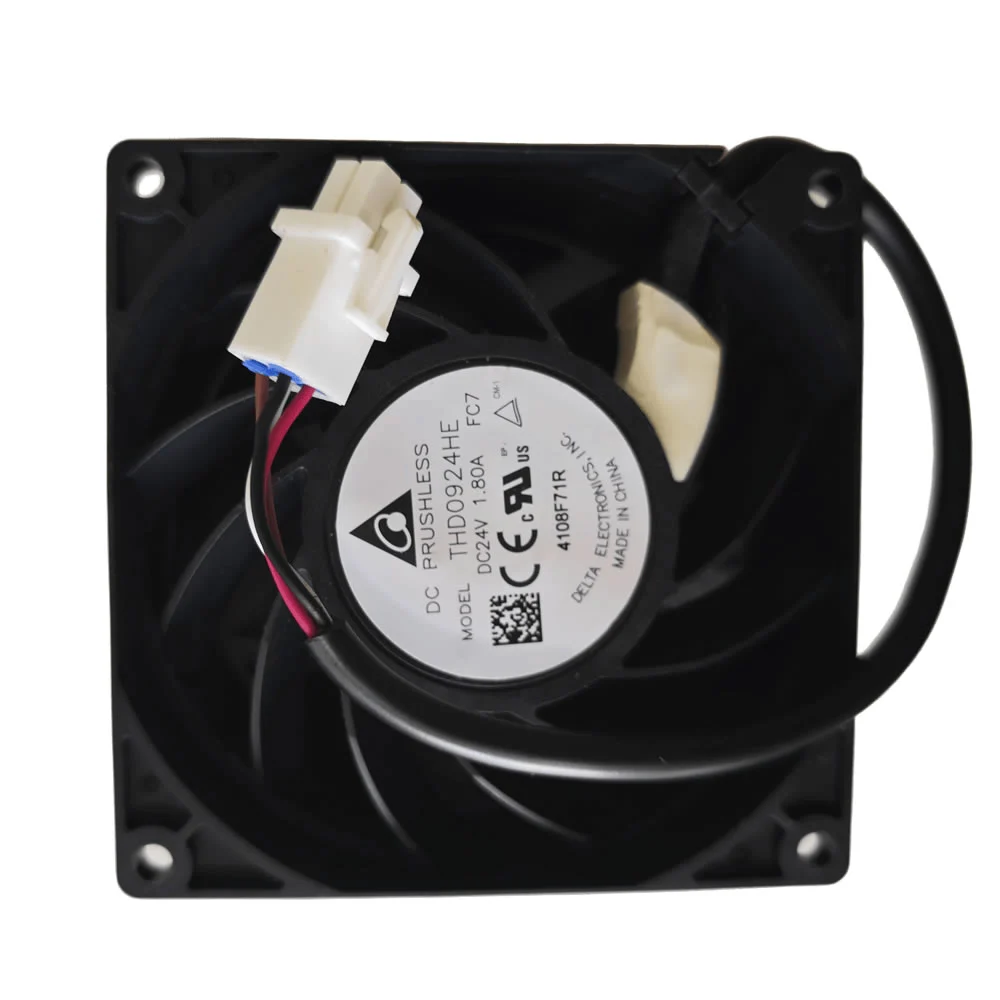

Technical Specifications
| Brand | Delta Electronics |
| Model | THD0924HE-FC7 |
| Product Type | DC Axial Fan |
| Fan Dimension | 92 x 92 x 38 mm |
| Rated Voltage | 24 VDC |
| Operating Voltage | 21.6 – 26.4 VDC |
| Input Current | 1.15 A (Maximum 1.38 A) |
| Safety Current | 1.80 A |
| Input Power | 27.60 W (Maximum 33.12 W) |
| Rated Speed | 10700 ±10% RPM |
| Maximum Airflow | 4.121 m³/min (145.540 CFM) |
| Minimum Airflow | 3.709 m³/min (130.986 CFM) |
| Maximum Air Pressure | 59.283 mmH2O (2.334 inch-H2O) |
| Minimum Air Pressure | 48.01 mmH2O (1.890 inch-H2O) |
| Noise Level | 64.0 dB-A (Maximum 68.0 dB-A) |
| Motor Type | Brushless DC Motor |
| Bearing System | Ball Bearing |
| Wire Configuration | 4 Wire |
| Control Function | PWM Speed Control |
| Feedback Signal | Tachometer / FG Signal |
| Protection Rating | IP68 |
| Insulation Type | UL Class A |
| Rotation Direction | Clockwise viewed from name plate side |
| Insulation Resistance | 10 Megohm minimum at 500 VDC between frame and (+) terminal |
| Dielectric Strength | 5 mA maximum at 500 VAC 50/60Hz for one minute |
| Operating Temperature | -10°C to +70°C |
| Life Expectancy | 70,000 hours continuous operation at 40°C with 15~65%RH |
| Protection Function | Rotation Lock Protection |
Applications
- Industrial equipment cooling
- Telecom equipment cooling
- Electronic enclosure ventilation
- Power electronics cooling
- Automation systems
- High-density thermal management applications
Replacement Information
The Delta THD0924HE-FC7 is suitable for direct replacement applications where the same electrical, mechanical, and airflow characteristics are required. Before replacement, confirm fan size, voltage, airflow, static pressure, connector configuration, PWM control compatibility, and tachometer feedback requirements.
Specifications
| Manufacturer | Delta Electronics |
|---|---|
| Fan Size | 92 x 92 x 38 mm |
| Voltage Rated | 24 VDC |
| Cooling Type | Axial Fan |
| Air Flow Range | 50 – 150 CFM ( 85 – 255 m³/h ) |
| Static Pressure Range | 50 – 120 mmH₂O ( 500 – 1200 Pa ) |
| Fan Speed Range | 8,000 – 15,000 RPM |
| Shipping Weight | 0.5 kg |
