Description

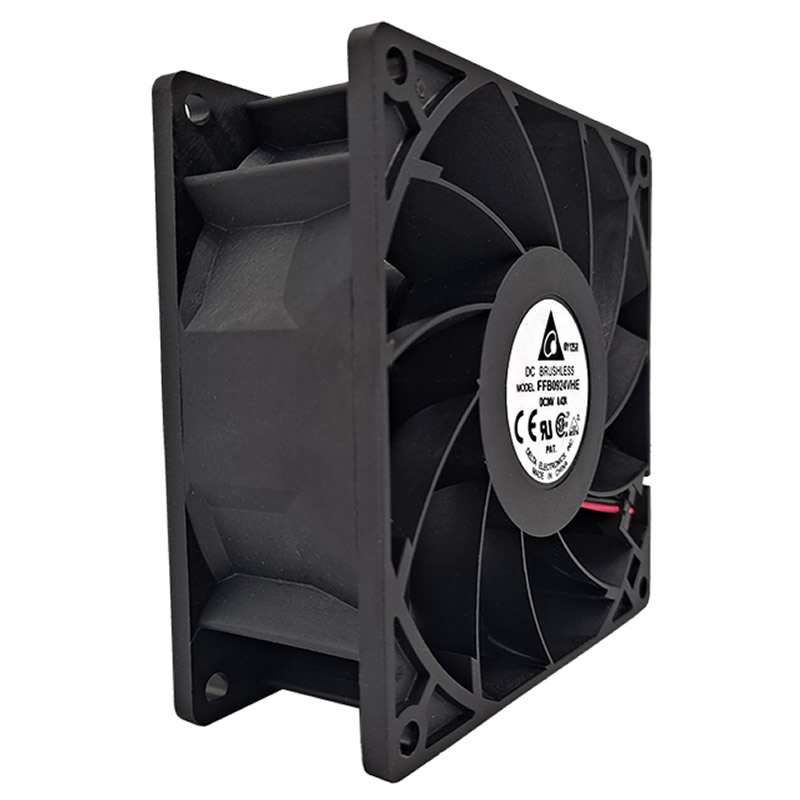

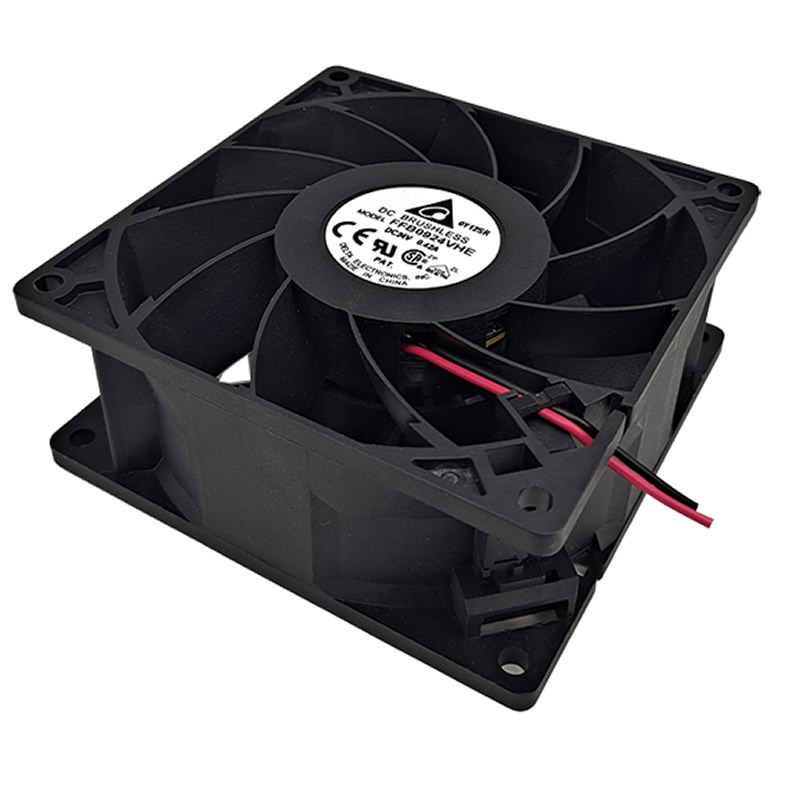

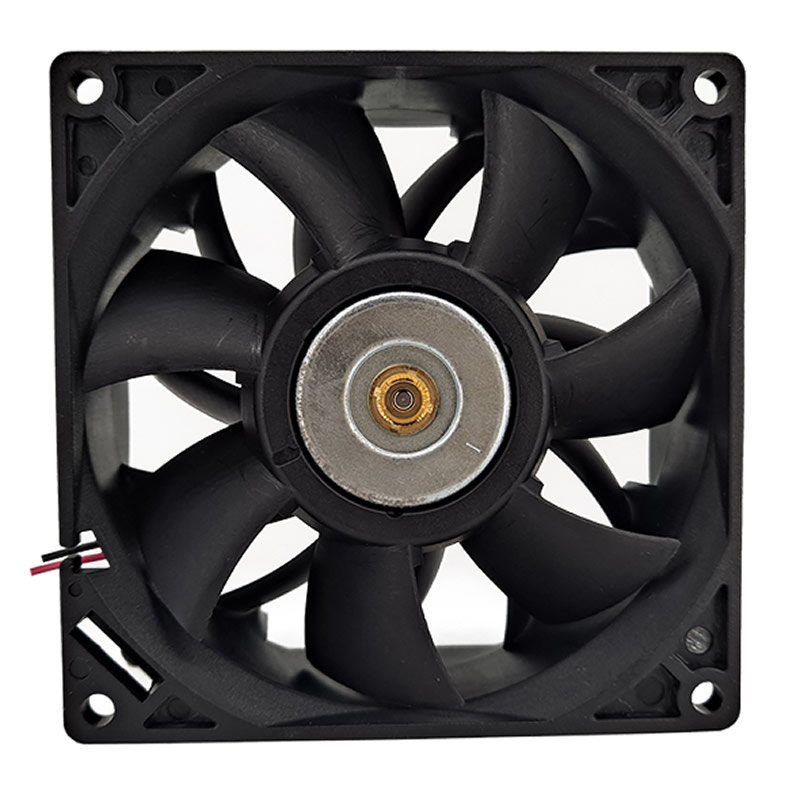

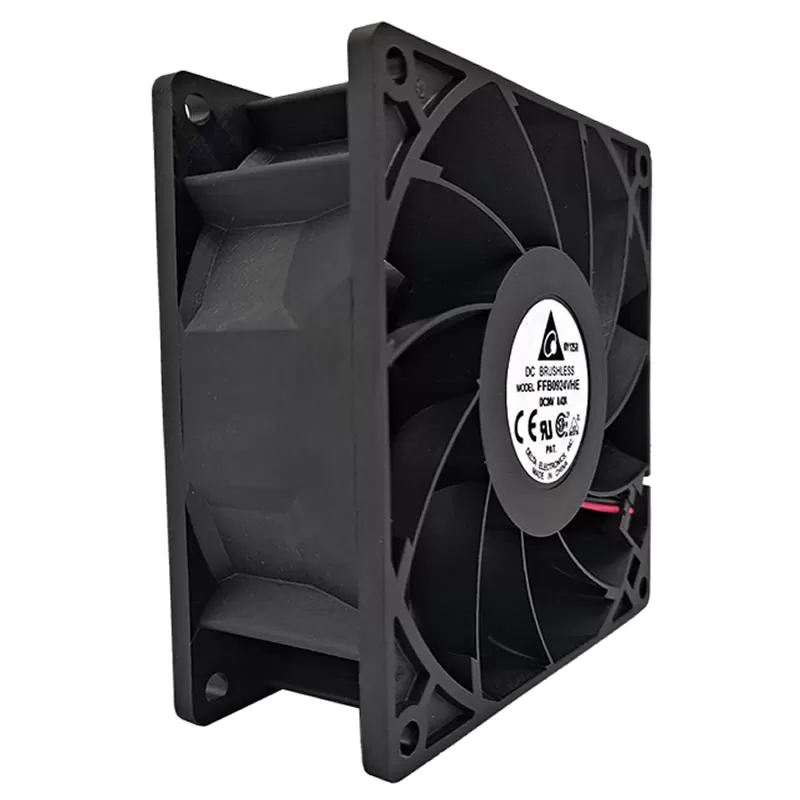

FFB0924VHE Delta 92x92x38mm Ball 24VDC 85.46CFM(2.420m3/min) 0.406inchH2O(10.30mmH2O) 47.5dB(A) 6.72W 3800RPM 2wireleads fan
Specifications
| Part Number | FFB0924VHE |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | FFB |
| Air Flow (m3) | 2.420 m3/min |
| Dimensions | 92x92x38 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 3800 RPM |
| Power Rating | 6.72 W |
| Noise Level | 47.5 dB(A) |
| Static Pressure | 0.406 inchH2O (10.30 mmH2O) |
| Air Flow | 85.46 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.437 lb (198.00 g) |
| Category | Axial |
| Current Rating | 0.28 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | FFB0924VHE-Delta.pdf |
