Description

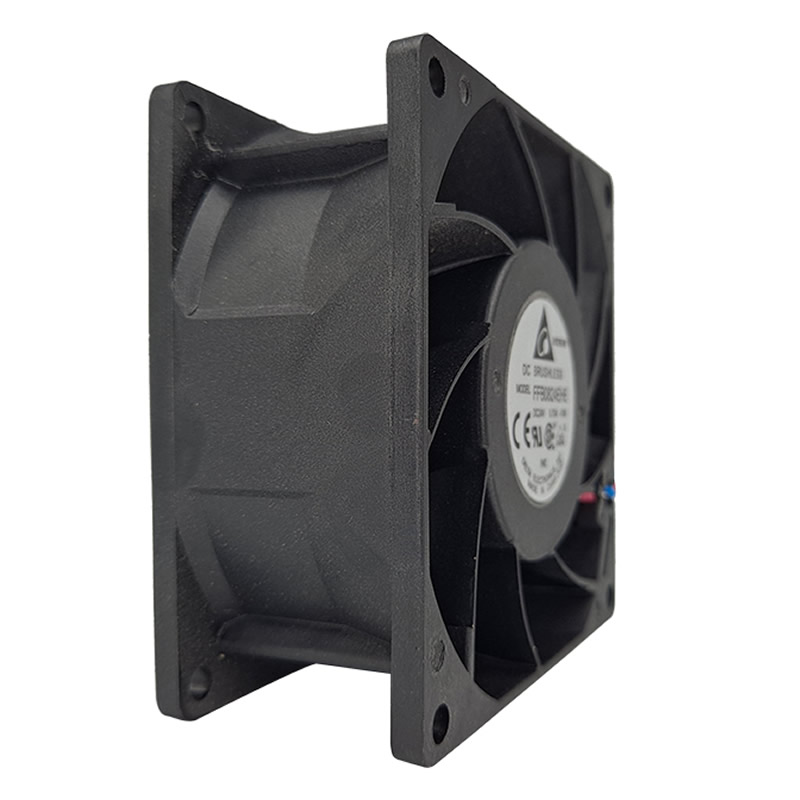

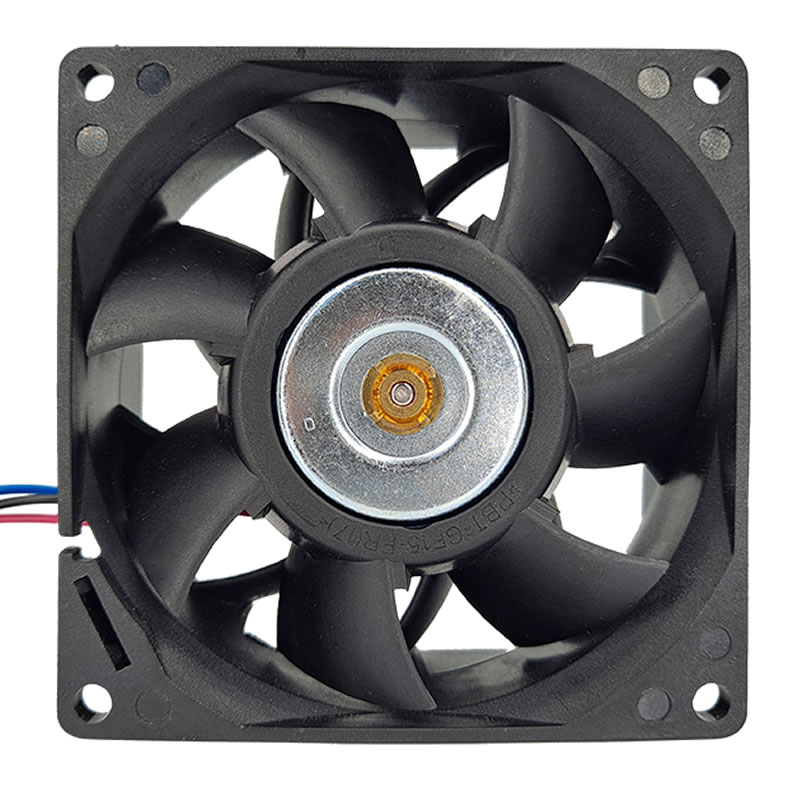

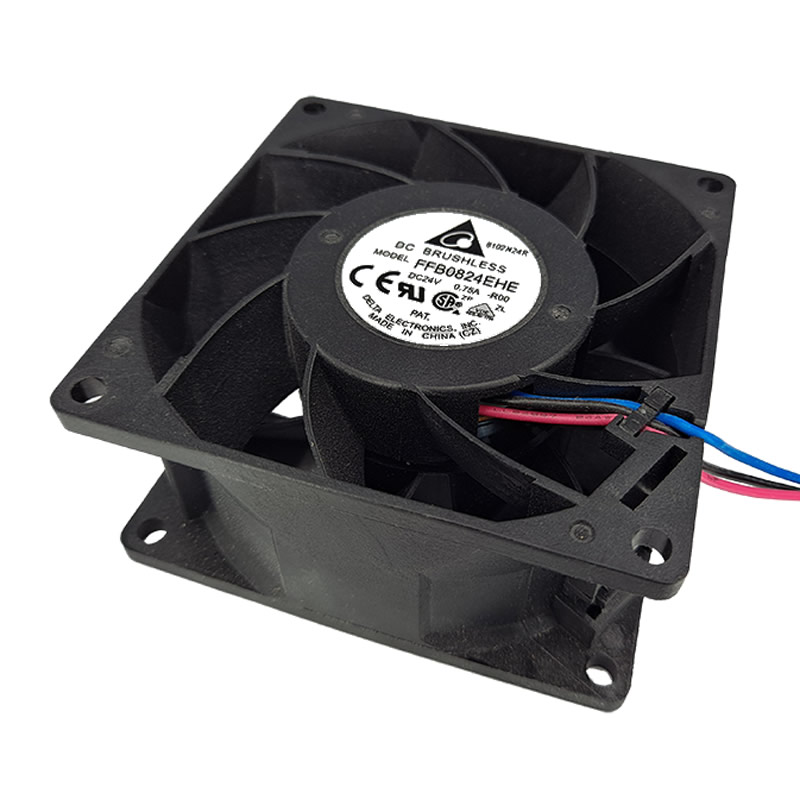

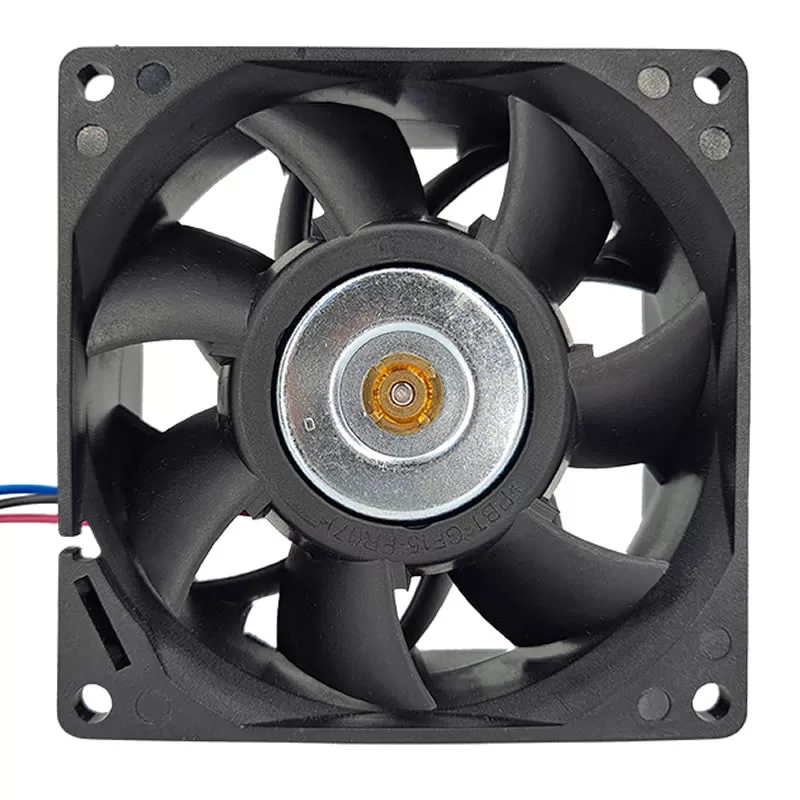

FFB0824EHE-R00 Delta 80x80x38mm Ball 24VDC 80.16CFM(2.270m3/min) 0.812inchH2O(20.63mmH2O) 52.5dB(A) 12.00W 5700RPM 3wireleads fan
Specifications
| Model | FFB0824EHE-R00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 80x80x38 mm |
| Power Rating | 12.00 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Sensor |
| Series | FFB |
| Air Flow (m3) | 2.270 m3/min |
| Termination | 3 wire leads |
| Fan Speed | 5700 RPM |
| Fan Type | DC |
| Static Pressure | 0.812 inchH2O (20.63 mmH2O) |
| Noise Level | 52.5 dB(A) |
| Air Flow | 80.16 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.375 lb (170.1 g) |
| Category | Axial |
| Current Rating | 0.75 A |
| Operating Voltage | 14 ~ 26.4 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | FFB0824EHE-R00-Delta.pdf |
