Description

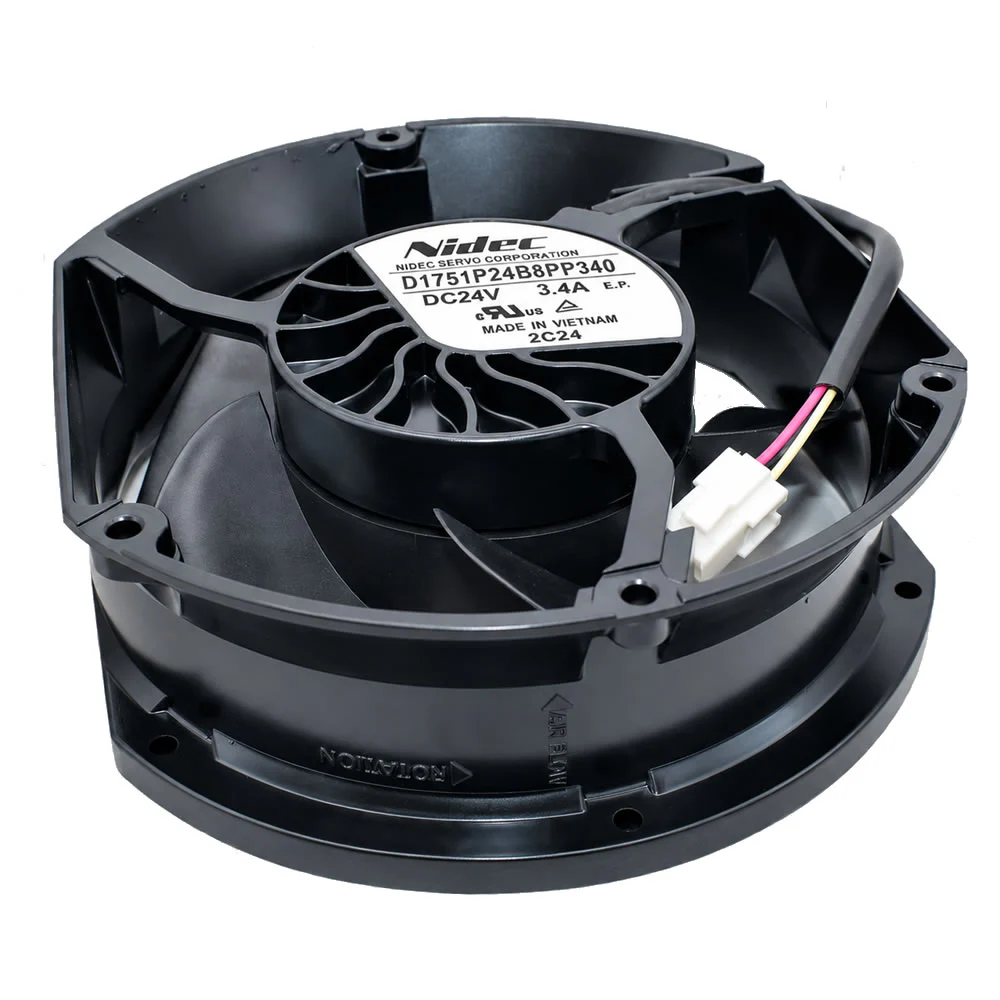

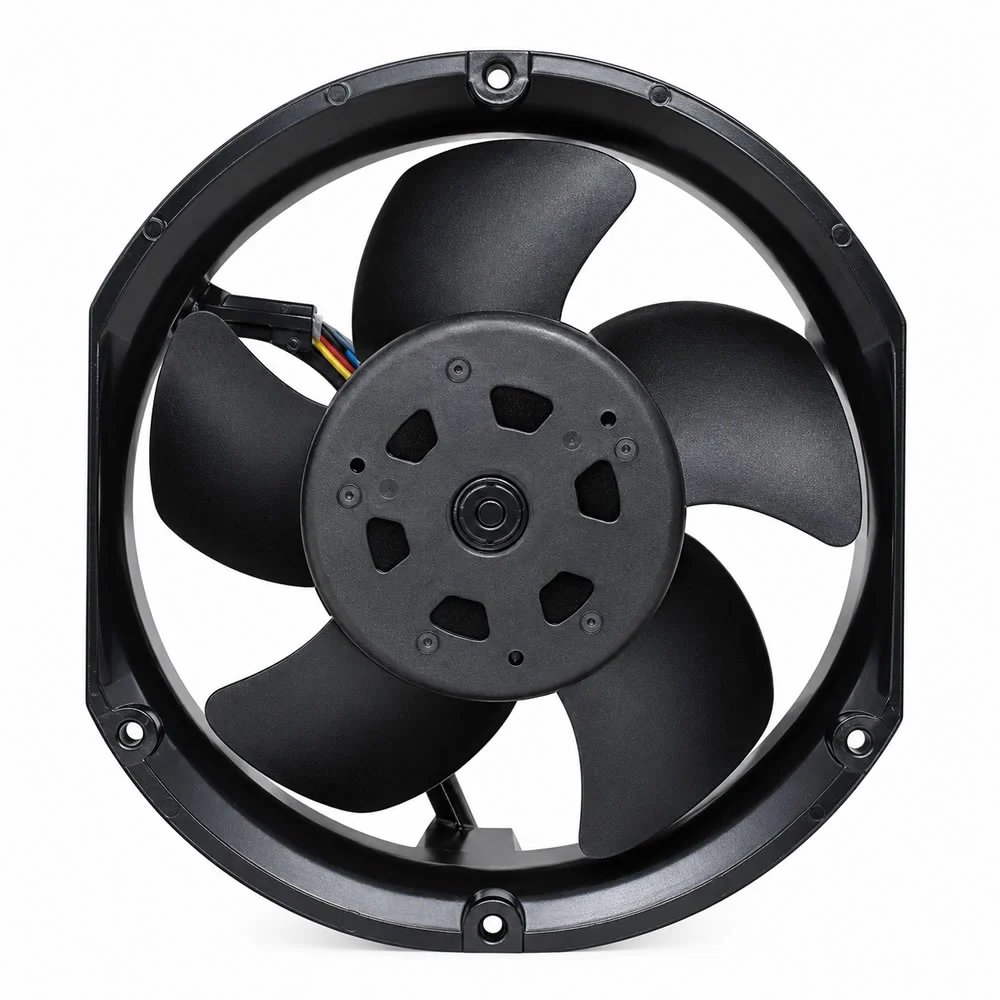

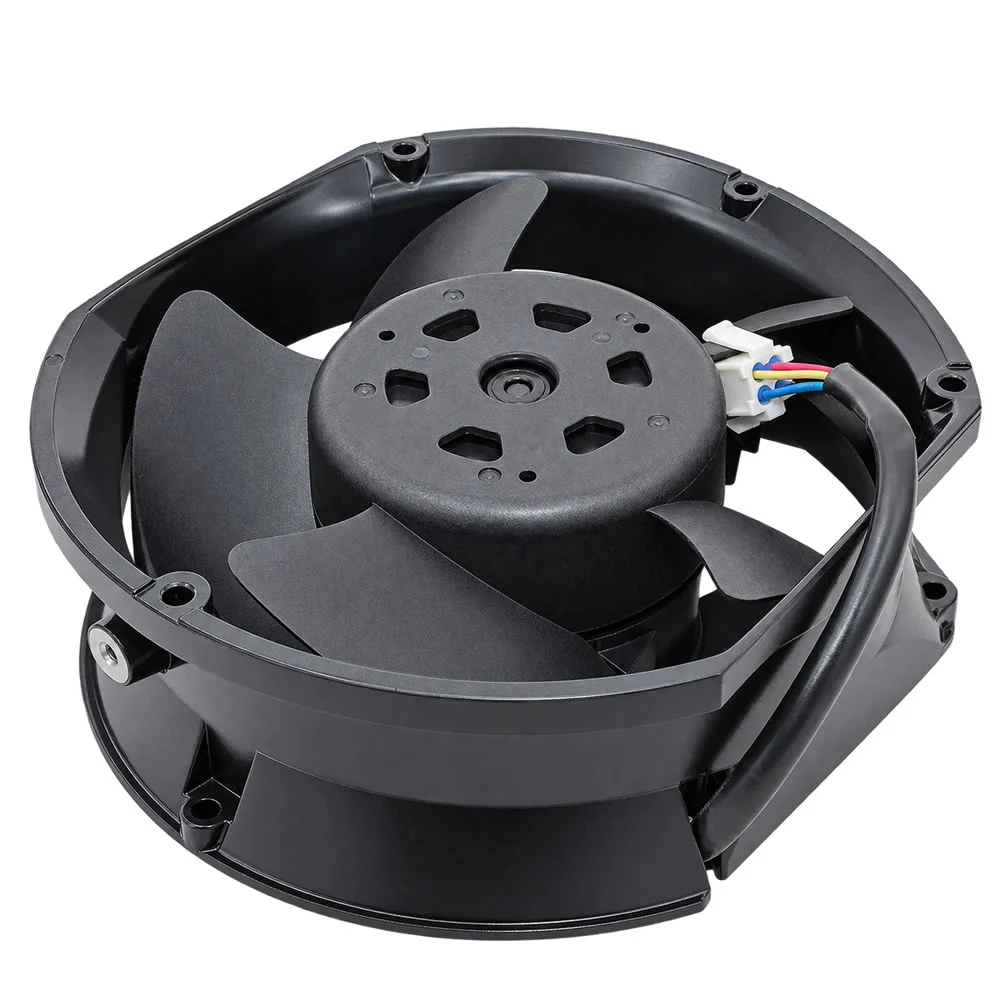

The Nidec D1751P24B8PP340 is a high-speed DC brushless axial cooling fan designed for industrial inverter and power electronics cooling applications. Featuring a compact 172 x 150 x 51 mm dimension, this fan provides high airflow and high static pressure performance for demanding thermal management environments.
Operating at 24VDC with a rated current of 3.4A, the D1751P24B8PP340 delivers a rated speed of 6100 RPM, airflow of 12.7 m³/min, and static pressure of 510 Pa. The high-performance axial design allows efficient heat dissipation in industrial drives, converters, and control systems requiring continuous cooling operation.
Manufactured by Nidec Servo Corporation, this model features a 4-wire connection design and is widely used as a replacement cooling fan for ABB ACS880 and ACS580 variable frequency drives, as well as other industrial automation and power conversion equipment.
Key Features
- Original Nidec Servo Corporation DC brushless axial fan
- Model: D1751P24B8PP340
- Designed for industrial inverter cooling applications
- Dimension: 172 x 150 x 51 mm
- Rated voltage: 24VDC
- Rated current: 3.4A
- High-speed operation: 6100 RPM
- High airflow performance: 12.7 m³/min
- High static pressure capability: 510 Pa
- 4-wire connection for industrial system integration
- Suitable replacement for ABB ACS880 / ACS580 inverter cooling fans
Technical Specifications
| Brand | Nidec |
| Manufacturer | Nidec Servo Corporation |
| Model | D1751P24B8PP340 |
| Fan Type | DC Brushless Axial Fan |
| Dimension | 172 x 150 x 51 mm |
| Rated Voltage | 24VDC |
| Rated Current | 3.4A |
| Rated Power | 81.6W |
| Speed | 6100 RPM |
| Airflow | 12.7 m³/min |
| Static Pressure | 510 Pa |
| Noise Level | 72 dBA |
| Bearing Type | Ball Bearing |
| Blade Count | 5 Blades |
| Connection | 4 Wire |
| Connector | 4 Pin Connector |
| Motor Type | Brushless DC Motor |
| Frame Material | Plastic |
| Certification | cRUus Recognized |
| Country of Origin | Vietnam |
Applications
- ABB ACS880 variable frequency drives
- ABB ACS580 variable frequency drives
- Industrial inverter cooling systems
- Power converters
- Servo drive systems
- Industrial automation equipment
- Electrical control cabinets
- Power electronics cooling applications
Replacement Information
The Nidec D1751P24B8PP340 is designed as a replacement cooling fan for industrial equipment requiring a high-performance 24VDC axial fan with 172 x 150 x 51 mm dimension.
This model is commonly selected as a replacement fan for ABB inverter cooling applications including ACS880 and ACS580 drive systems. Before replacement, verify the complete model number, dimension, voltage, connector type, and mounting configuration.
- Replacement Model: D1751P24B8PP340
- Dimension: 172 x 150 x 51 mm
- Voltage: 24VDC
- Current: 3.4A
- Connection: 4 Wire
- Application: ABB ACS880 / ACS580 inverter cooling
Specifications
| Manufacturer | Nidec Corporation |
|---|---|
| Fan Size | 172 x 150 x 51 mm |
| Voltage Rated | 24 VDC |
| Cooling Type | Axial Fan |
| Fan Speed Range | 4,500 – 8,000 RPM |
| Noise | 60 – 75 dB(A) (High Performance) |
| Shipping Weight | 1.5 kg |
