Description

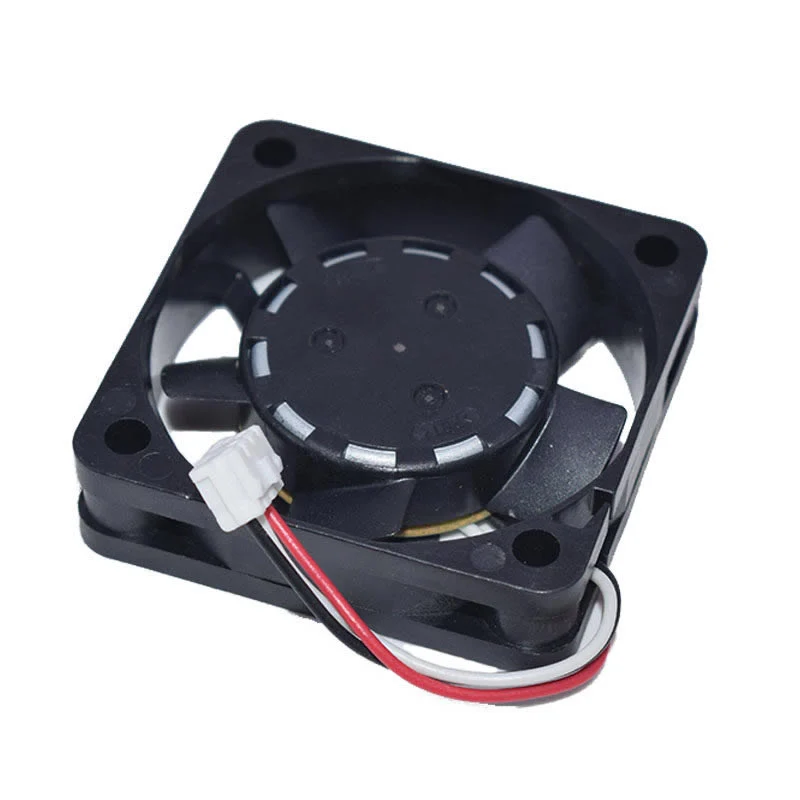

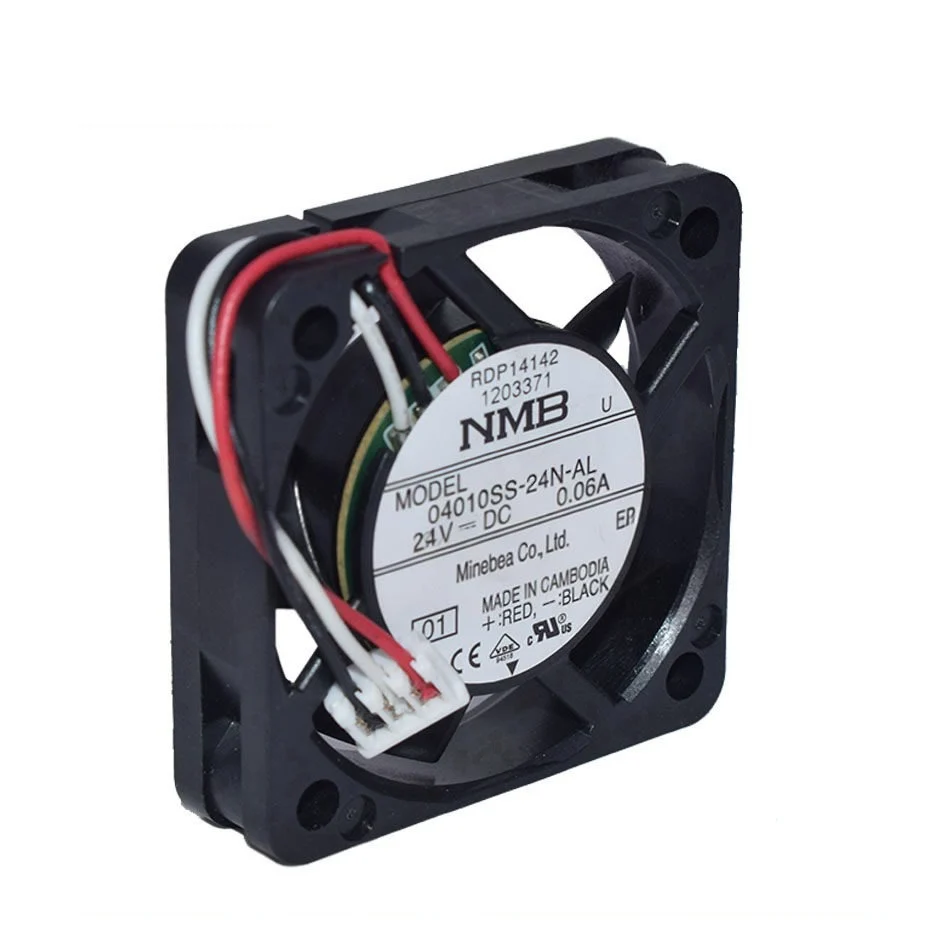

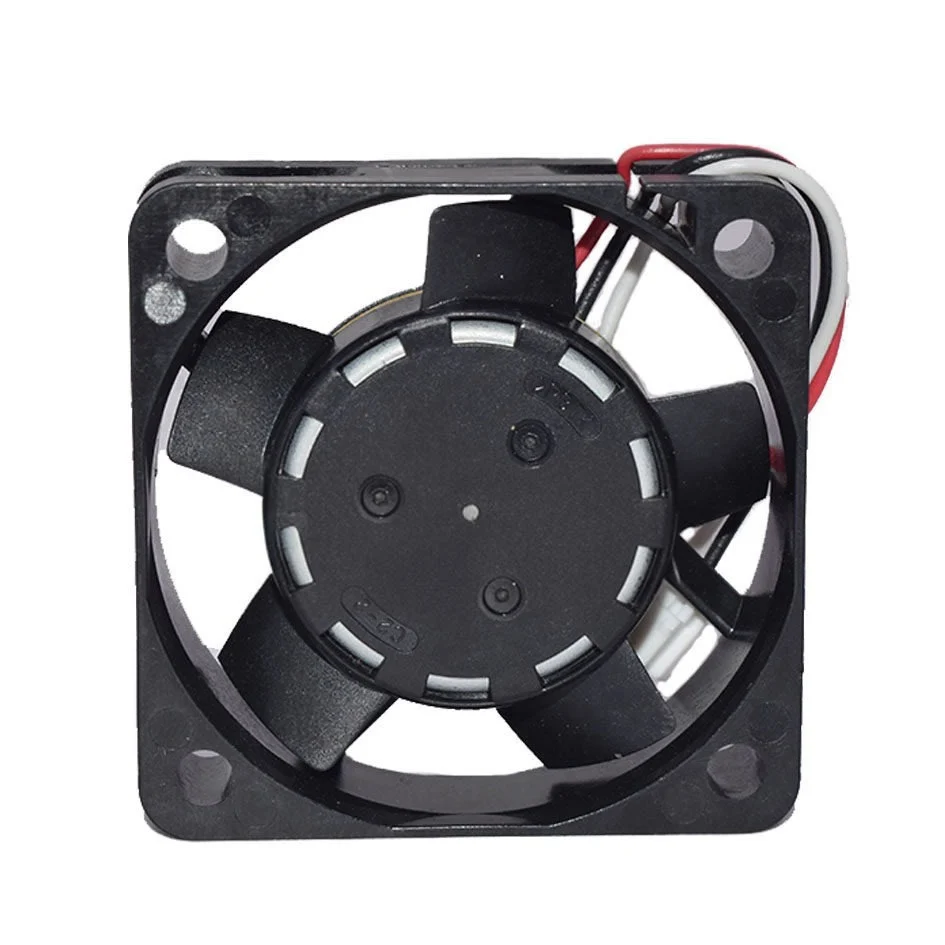

The NMB 04010SS-24N-AL is a compact 24VDC axial cooling fan manufactured by NMB (MinebeaMitsumi). Featuring a 40 x 40 x 10 mm form factor, a rotational speed of 7500 RPM, and an airflow of 6.71 CFM, this fan is designed for cooling compact electronic equipment and industrial assemblies.
Built with a black plastic frame and impeller made from UL94V-0 rated material, the NMB 04010SS-24N-AL combines a compact design with efficient airflow for space-constrained cooling applications. Its three-wire configuration supports equipment integration where the corresponding wiring arrangement is compatible.
Key Features
- Manufacturer: NMB (MinebeaMitsumi)
- Model: 04010SS-24N-AL
- Rated voltage: 24VDC
- Rated current: 0.06A
- Rotational speed: 7500 RPM
- Maximum airflow: 6.71 CFM (0.19 m³/min)
- Maximum static pressure: 50 Pa
- Noise level: 29 dB(A)
- Compact 40 x 40 x 10 mm dimensions
- Black plastic frame and impeller
- UL94V-0 flame-retardant material
- Sleeve bearing design
- Three-wire lead configuration
Technical Specifications
| Manufacturer | NMB (MinebeaMitsumi) |
|---|---|
| Model | 04010SS-24N-AL |
| Series | 04010SS |
| Product Type | DC Axial Cooling Fan |
| Dimension | 40 x 40 x 10 mm |
| Rated Voltage | 24VDC |
| Rated Current | 0.06A |
| Speed | 7500 RPM |
| Airflow | 6.71 CFM (0.19 m³/min) |
| Maximum Static Pressure | 50 Pa (0.20 in H₂O) |
| Noise Level | 29 dB(A) |
| Bearing Type | Sleeve Bearing |
| Housing Material | Black Plastic, UL94V-0 |
| Impeller Material | Black Plastic, UL94V-0 |
| Operating Voltage Range | 20.0–26.4VDC |
| Rotation Direction | Clockwise, viewed from the label side |
| Airflow Direction | Air outlet over the support struts |
| Wire Configuration | 3-Wire Leads |
| Positive Wire | Red (+) |
| Negative Wire | Black (-) |
| Country of Origin | Cambodia |
Applications
- Electronic equipment cooling
- Industrial control systems
- Compact electronic enclosures
- Printer and peripheral equipment cooling
- Embedded systems and electronic assemblies
- Ventilation for compact electrical equipment
- Replacement of compatible 24VDC axial cooling fans
Installation and Wiring
Use a compatible 24VDC power supply and observe the polarity indicated on the fan label. The red wire is positive (+), and the black wire is negative (-). Check the equipment wiring diagram for the correct connection of the third wire before installation.
Ensure that the mounting dimensions, connector arrangement, airflow direction, and electrical requirements match the target equipment. Allow sufficient clearance around the fan inlet and outlet to support effective airflow.
Replacement Information
When selecting a replacement fan, verify the complete model number, rated voltage, current rating, rotational speed, airflow, static pressure, noise level, mounting dimensions, and wire configuration. Matching these specifications helps maintain the cooling performance and compatibility of the original equipment.
The NMB 04010SS-24N-AL is suitable for replacement applications where the original fan requirements match its mechanical and electrical specifications.
Specifications
| Manufacturer | NMB Technologies |
|---|---|
| Fan Size | 40 x 40 x 10 mm |
| Voltage Rated | 24 VDC |
| Fan Speed Range | 4,500 – 8,000 RPM |
| Shipping Weight | 0.25 kg |
