Description

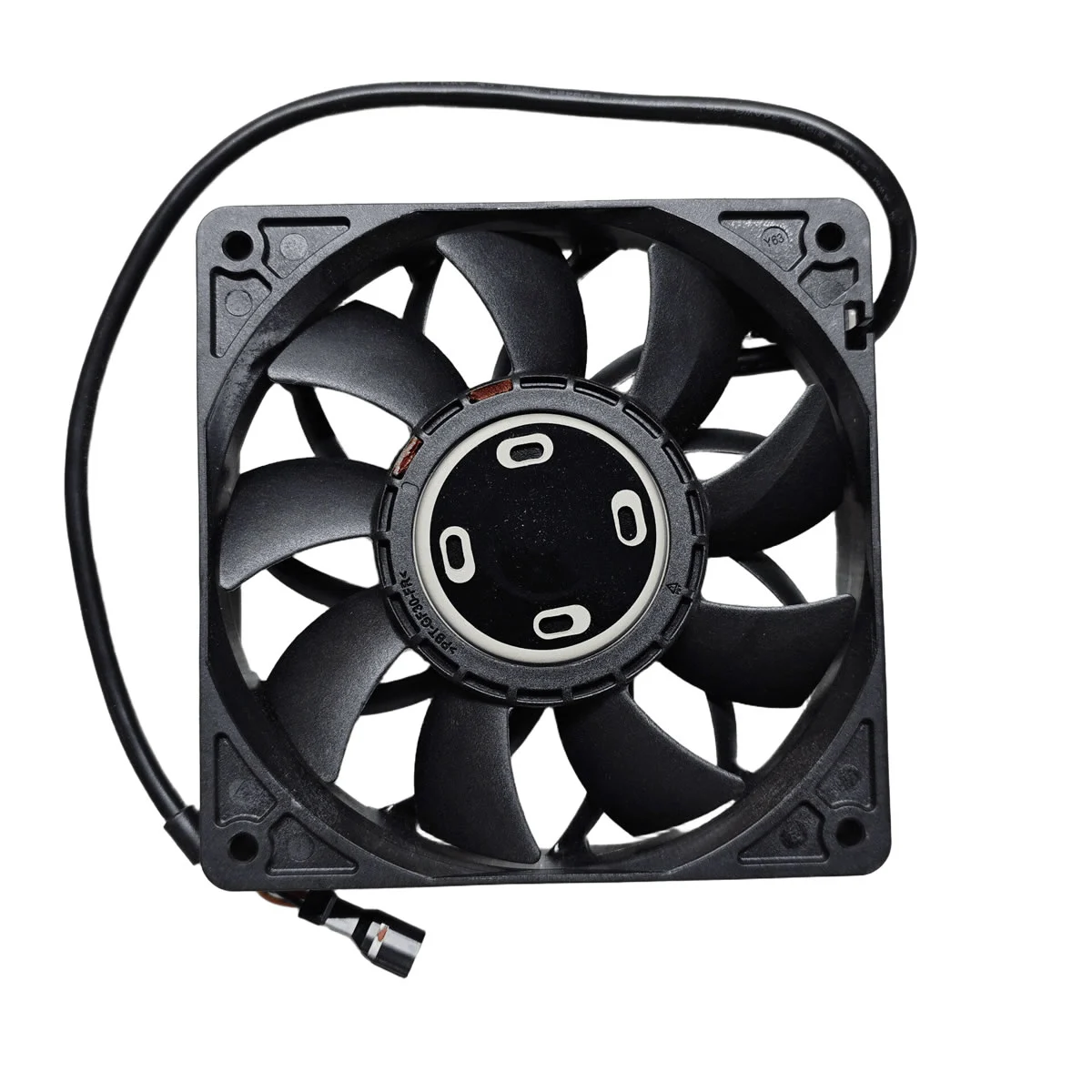

The AVC DBTB1225B8FP099 is a reliable 120mm DC brushless axial cooling fan designed for thermal management applications in servers, industrial equipment, and electronic systems. Featuring a standard 120 x 120 x 25 mm dimension, this compact cooling fan provides an efficient solution for applications requiring stable airflow performance within limited installation spaces.
Operating at 48VDC with a rated current of 0.48A, the DBTB1225B8FP099 delivers dependable cooling performance for high-density electronic equipment. The fan adopts a ball bearing structure and a 4-wire connection design, making it suitable for systems requiring reliable operation and advanced fan monitoring or control integration.
Manufactured by AVC (Asia Vital Components), the DBTB1225B8FP099 is commonly used in server platforms, networking equipment, industrial control systems, and other applications where continuous and reliable cooling is required.
Key Features
- Original AVC (Asia Vital Components) DC brushless axial fan
- Model: DBTB1225B8FP099
- Standard 120 x 120 x 25 mm compact design
- 48VDC operating voltage
- Rated current: 0.48A
- Ball bearing construction for reliable operation
- 4-wire lead connection design
- Suitable for server and industrial cooling applications
- Compact 12025 fan format for space-efficient installation
Technical Specifications
| Brand | AVC |
| Manufacturer | Asia Vital Components Co., Ltd. |
| Model | DBTB1225B8FP099 |
| Fan Type | DC Brushless Axial Fan |
| Dimension | 120 x 120 x 25 mm |
| Size Category | 12025 Fan |
| Rated Voltage | 48VDC |
| Rated Current | 0.48A |
| Rated Power | 23.04W |
| Bearing Type | Ball Bearing |
| Connection | 4 Wire |
| Motor Type | Brushless DC Motor |
| Frame Material | Plastic |
| Impeller Material | Plastic |
Applications
- Server cooling systems
- Network communication equipment
- Industrial control cabinets
- Power electronics cooling
- Automation equipment
- Telecommunication equipment
- Electronic enclosure ventilation
Replacement Information
The AVC DBTB1225B8FP099 is suitable as a replacement cooling fan for equipment requiring a 120 x 120 x 25 mm, 48VDC, 4-wire axial fan. Before replacement, confirm the fan dimension, voltage rating, current specification, connector type, and mounting compatibility.
- Replacement model: DBTB1225B8FP099
- Dimension: 120 x 120 x 25 mm
- Voltage: 48VDC
- Current: 0.48A
- Connection: 4 Wire
Specifications
| Manufacturer | AVC |
|---|---|
| Fan Size | 120 x 120 x 25 mm |
| Voltage Rated | 48 VDC |
| Cooling Type | Axial Fan |
| Shipping Weight | 1 kg |
