Description

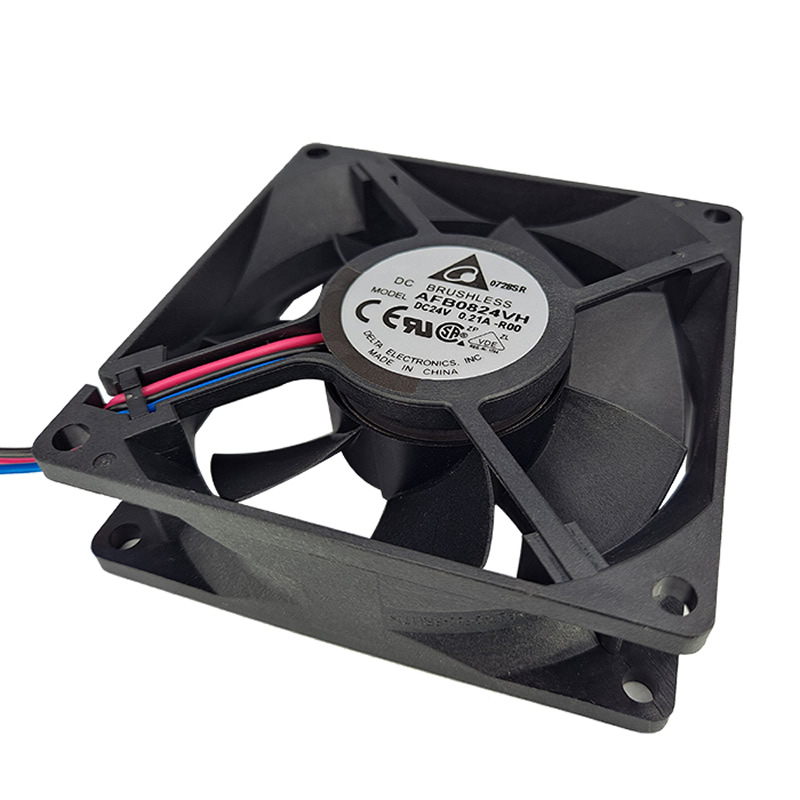

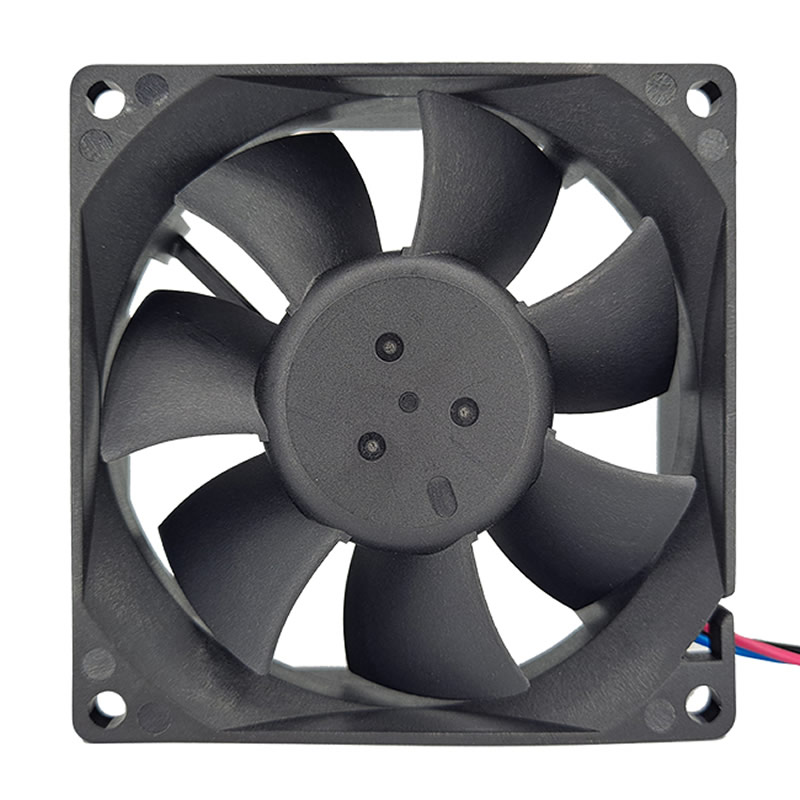

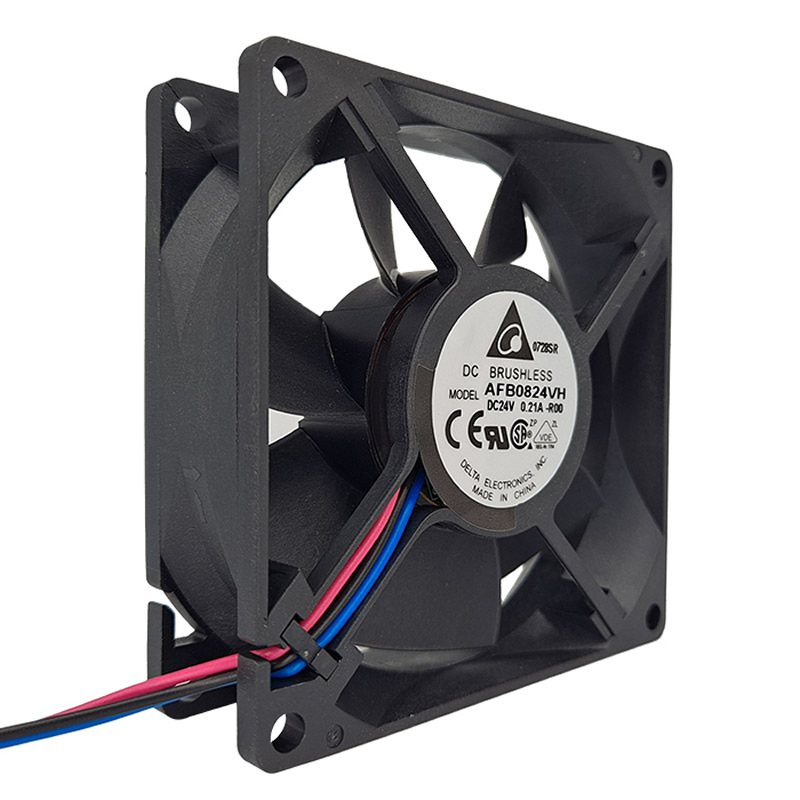

AFB0824VH-R00 Delta 24VDC 80x80x25.40mm 42CFM 0.217inH2O(54.1Pa) Ball 38dB(A) 3.36W 3600RPM 3 Wire Leads Locked Rotor Sensor DC Fan
Specifications
| Part Number | AFB0824VH-R00 |
|---|---|
| Manufacturer | Delta Electronics |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 24 VDC |
| Dimensions | 80x80x25.40 mm |
| Air Flow | 42 CFM |
| Air Flow (m3) | 1.18 m³/min |
| Static Pressure | 0.217 in H2O (54.1 Pa) |
| Features | Locked Rotor Sensor |
| Fan Type | DC |
| Noise Level | 38 dB(A) |
| Power Rating | 3.36 W |
| Fan Speed | 3600 RPM |
| Termination | 3 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.176 lb (80.00 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0824VH-R00-Delta.pdf |
