Description

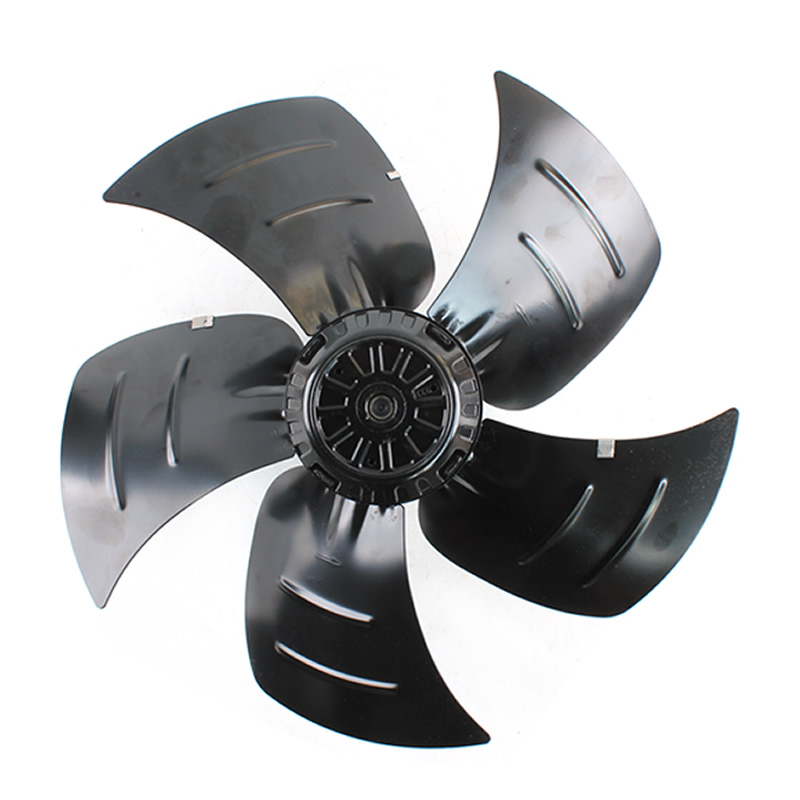

A4E450-BA09-01 ebmpapst 230VAC IP54 450mm Ball Bearing axial fan
The A4E450-BA09-01 is a compact 230VAC axial fan manufactured by EBM-PAPST, designed for ventilation, air conditioning, and refrigeration applications. It features 480W power consumption, a 2.1A rated current, and a rotational speed of 1350rpm, providing an airflow of up to 5705 m³/h (in free air conditions). This fan utilizes ball bearings, boasts an IP54 protection rating, and supports a wide operating temperature range from -40°C to 65°C, ensuring reliability and durability. Its external rotor motor design guarantees low installation depth and efficient operation.
Specifications
| Model | A4E450-BA09-01 |
|---|---|
| Manufacturer | ebm-papst |
| Motor | M4E094-HA |
| Dimensions | 450 mm |
| Fan Type | AC |
| Bearing Type | Ball Bearing |
| Voltage Rating | 230 VAC |
| Frequency | 50/60 Hz |
| Current Rating | 2.1 A, 2.9 A |
| Power Rating | 480 W, 665 W |
| Fan Speed | 1350 RPM, 1490 RPM |
| Capacitor | Capacitor: 10.0 µF / 400VDB |
| IP Rating | IP54 |
| Number of blades | 5 |
| Termination | 2 Wire Leads |
| Subcategory | AC axial fan |
| Shipping Weight | 10 kg |
| Product PDF | A4E450-BA09-01-ebmpapst.pdf |
