Description
7114N ebmpapst DC 12~30V 308m3/h 150x38mm 53dB(A) 6.2B 24V 0.5A 12W 2850RPM Ball Bearing 2-Wire Leads axial compact fan

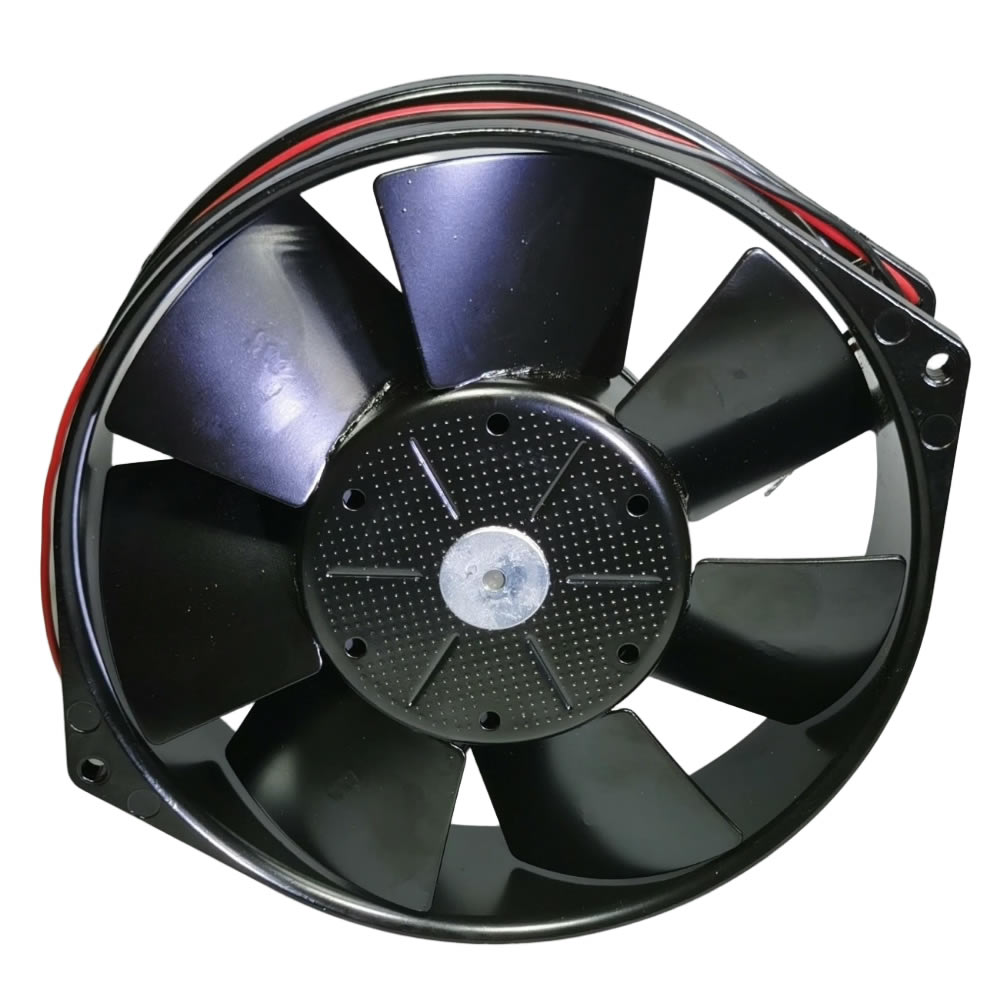

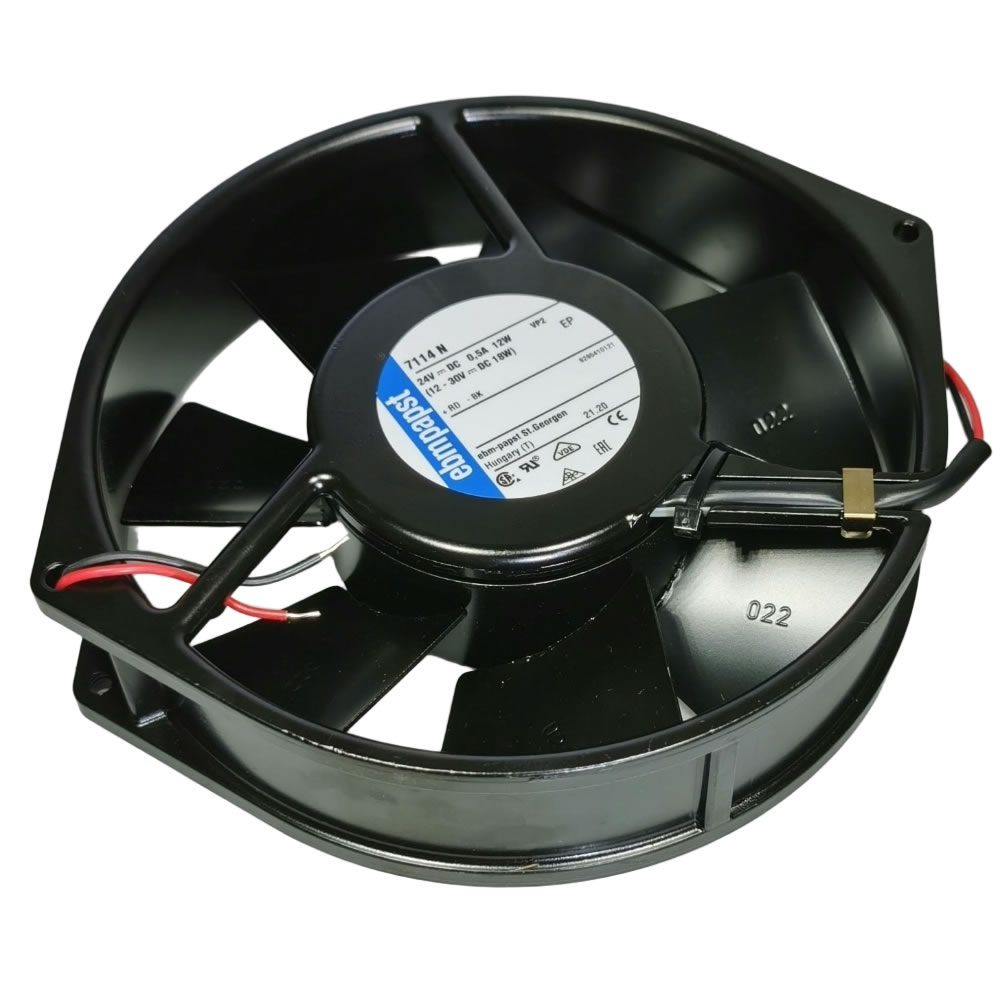

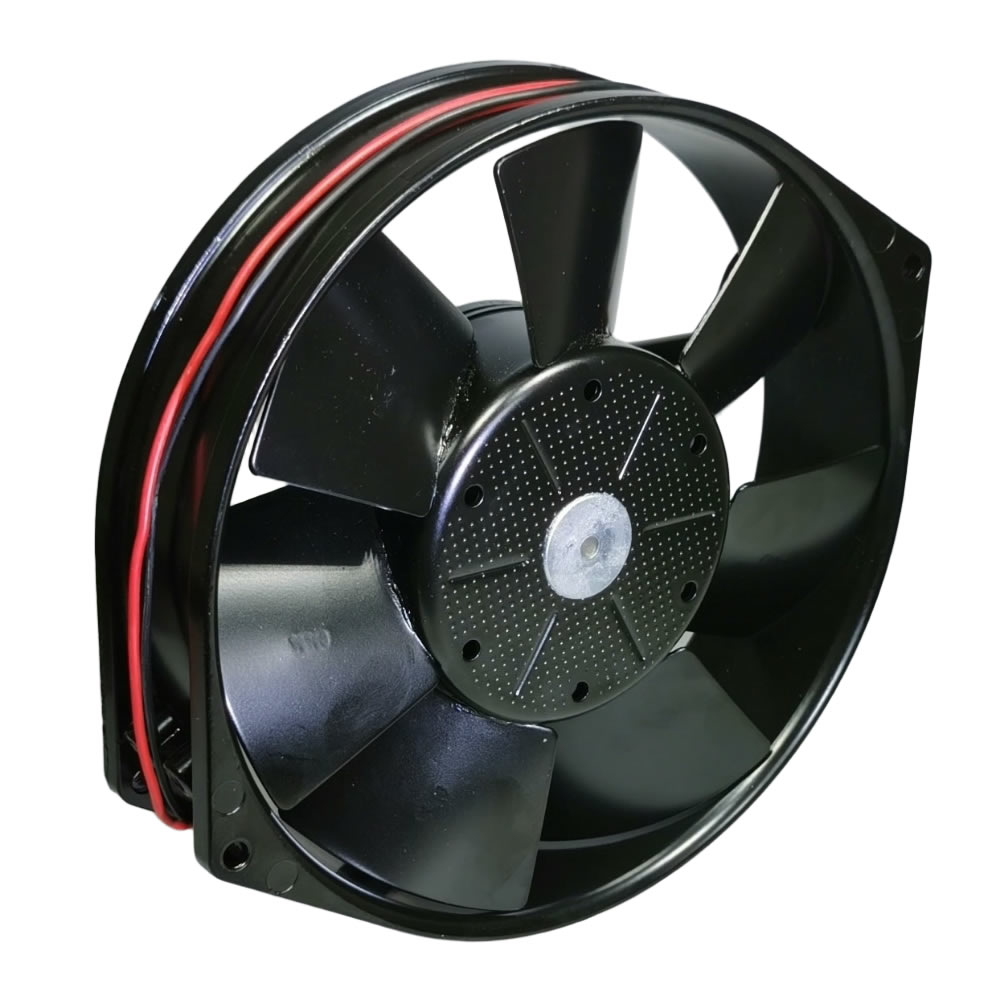

The 7114N DC axial compact fan manufactured by ebm-papst features a nominal voltage of 24 VDC (operating range 12–30 VDC), a rotational speed of 2850 rpm, power consumption of 12 W, and is suitable for ambient temperatures from -25°C to 72°C. With an airflow capacity of 308 m³/h and a sound pressure level of 53 dB(A), this fan measures 150 mm in diameter and 38 mm in thickness, weighing 0.62 kg. The impeller is constructed from painted steel, while the housing is made of die-cast aluminum. Equipped with ball bearings, it offers an L10 service life of 80,000 hours at 40°C (37,500 hours at maximum temperature). The fan is supplied with AWG 22 stripped and tinned leads, incorporates reverse polarity and electronic locked-rotor protection, and holds VDE, CSA, UL, and CE certifications.
Specifications
| Part Number | 7114N |
|---|---|
| Manufacturer | ebm-papst |
| Air Flow | 212 CFM |
| Voltage Range | 12~30V |
| Fan Type | DC |
| Noise Level | 53 dB(A) |
| Sound power level | 6.2B |
| Dimensions | 150×38 mm |
| Air Flow (m3) | 5.94m³/min |
| Series | 7100N |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Power Rating | 12 W |
| Fan Speed | 2850 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | -13 ~ 162°F (-25 ~ 72°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 1.4 lbs (635.0 g) |
| Subcategory | Tubeaxial |
