Description
414JHH ebmpapst DC 18~27V 24m³/h 40x40x25mm 46dB(A) 6.1B 24VDC 0.15A Ball Bearing 3.6W 13000RPM 2-Wire Leads axial compact fan

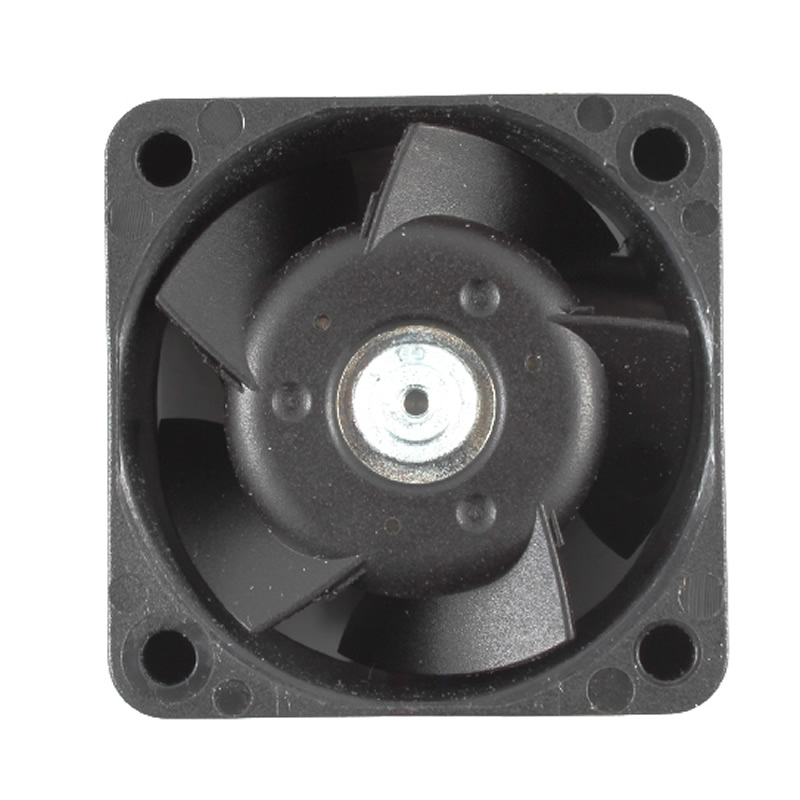

The 414 JHH is an ebm-papst 24V DC axial compact fan, measuring just 40x40x25mm. It delivers a high speed of 13000 RPM and an airflow of 24 m³/h with a mere 3.6W power consumption, while maintaining a low noise level of 46 dB(A). Featuring reverse polarity and blocked rotor protection, and equipped with ball bearings, this fan is ideal for space-constrained electronic devices, small servers, and various applications requiring efficient miniature cooling.
Specifications
| Part Number | 414JHH |
|---|---|
| Manufacturer | ebm-papst |
| Air Flow | 14.1 CFM |
| Voltage Range | 18~27V |
| Fan Type | DC |
| Noise Level | 46 dB(A) |
| Sound power level | 6.1B |
| Dimensions | 40x40x25 mm |
| Air Flow (m3) | 0.395m³/min |
| Series | 400J |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Power Rating | 3.6 W |
| Fan Speed | 13000 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | -4 ~ 140°F (-20 ~ 60°C) |
| Approval Agency | CSA, UL, VDE |
| Weight | 0.111 lb (50.35 g) |
| Current Rating | 0.15 A |
| Subcategory | DC axial compact fan |
| Shipping Weight | 0.25 kg |
| Product PDF | 414JHH-ebmpapst.pdf |
