Description

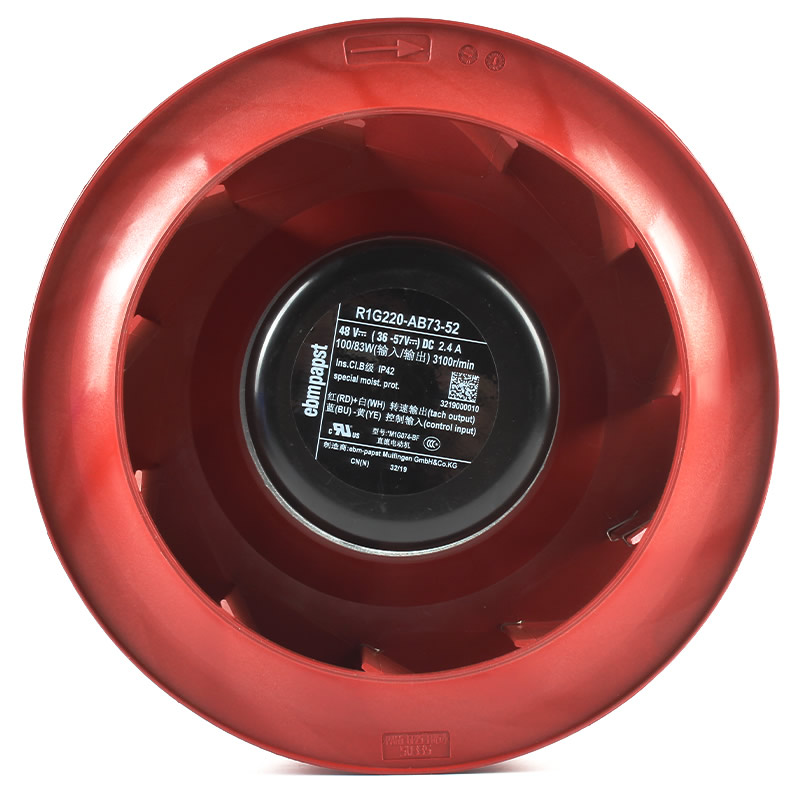

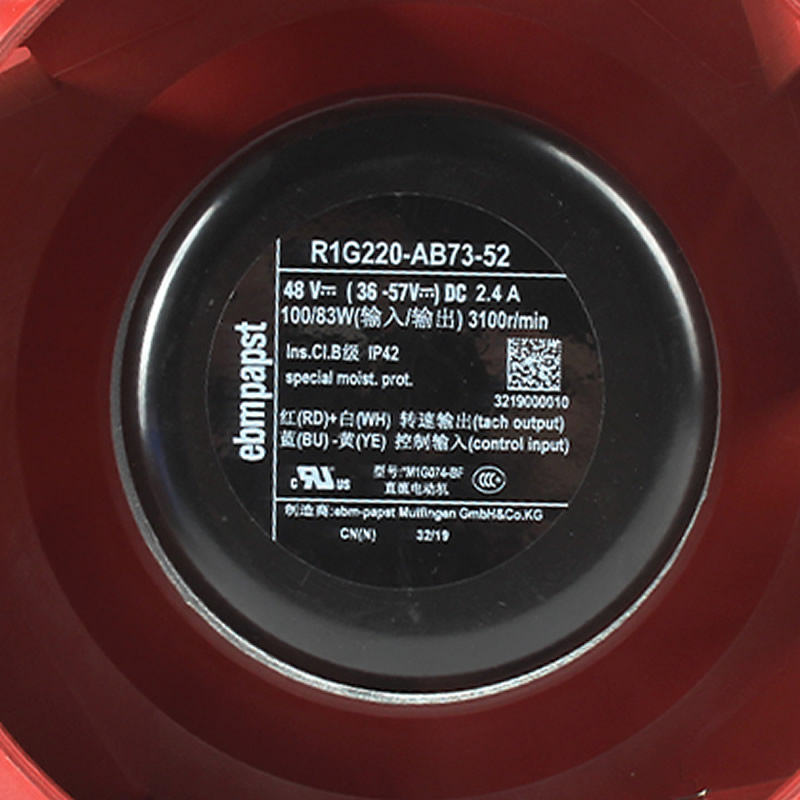

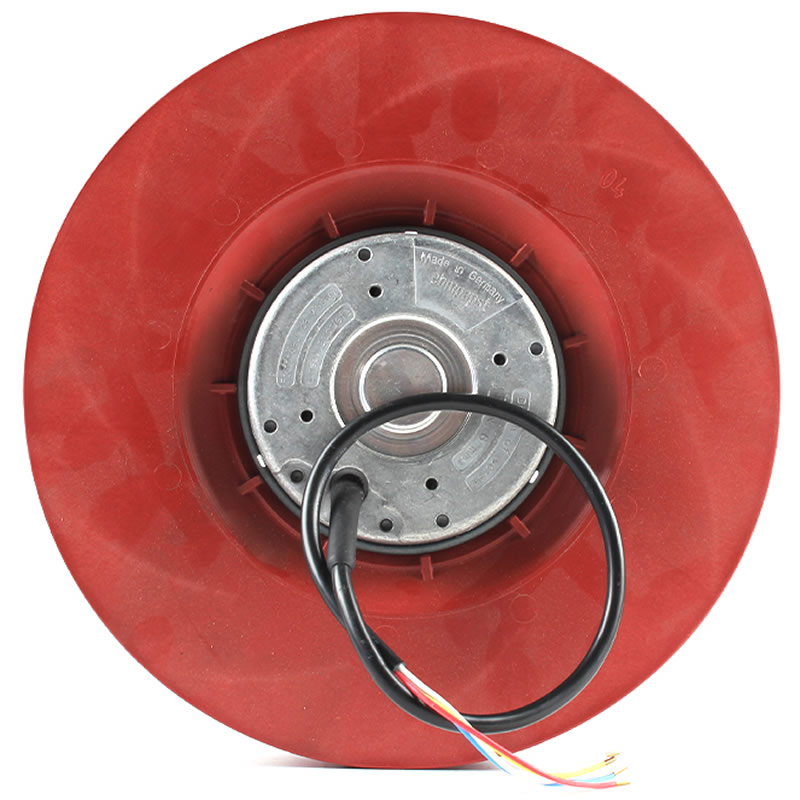

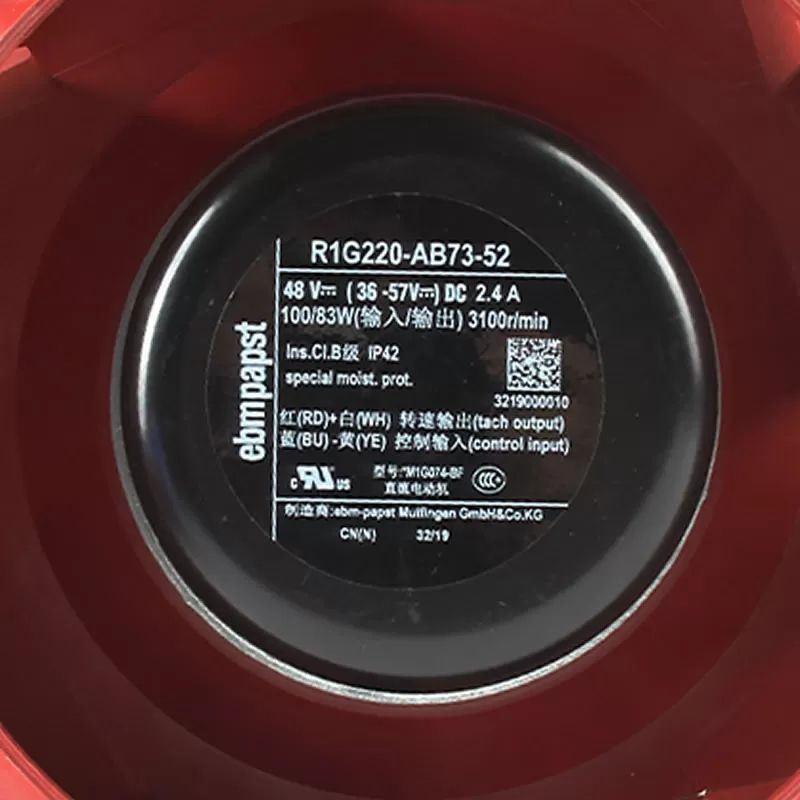

R1G220-AB73-52 ebmpapst 48VDC 220x71mm 597.4CFM Ball 100W 3100RPM 4 Wire Leads PWM Control, Speed Sensor (Tach) Motorized Impellers DC Fan
Specifications
| Part Number | R1G220-AB73-52 |
|---|---|
| Manufacturer | ebm-papst |
| Series | R1G220 |
| Voltage Rating | 48 VDC |
| Dimensions | 220×71 mm |
| Air Flow | 597.4 CFM |
| Air Flow (m3) | 16.73m³/min |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Features | PWM Control, Speed Sensor (Tach) |
| Noise Level | 73 dB(A) |
| Power Rating | 100 W |
| Fan Speed | 3100 RPM |
| Termination | 4 Wire Leads |
| Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
| Approval Agency | CCC, CSA, UL |
| Weight | 3.1 lbs (1.4 kg) |
| Subcategory | Motorized Impellers |
