Description

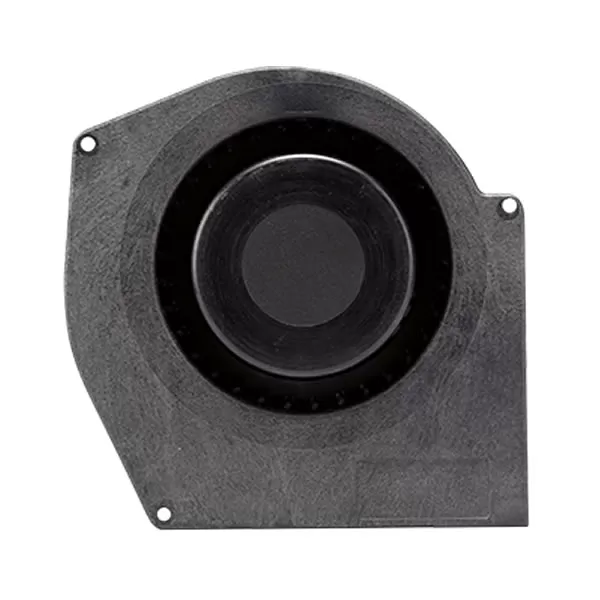

SPD24B1 Comair Rotron 19032183A 161x161x51mm 24VDC 1.25A 30W 2500RPM 59CFM 100.2m³/h 57dB(A) Ball 1.10inH2O 274Pa 2 Wire Leads Blower fan
Specifications
| Model Number | SPD24B1 |
|---|---|
| Air Flow | 59 CFM |
| Weight | 950 g |
| Manufacturer | Comair Rotron |
| Series | Spinnaker DC |
| Dimensions | 161x161x51 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 12 – 28VDC |
| Current Rating | 1.25 A |
| Power Rating | 30 W |
| Fan Speed | 2500 RPM |
| Air Flow (m3) | 100.2 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19032183A |
| Noise Level | 57 dB(A) |
| Static Pressure | 1.10 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 45000 Hrs @ 70°C |
| Propeller | Plastic, Black, UL94V-0 |
| Venturi | Plastic Housing and Metal Backplate |
| Termination | 2 Wire Leads |
| Category | Blower |
| Static Pressure Pa | 274 Pa |
| Product PDF | SPD24B1-Comair-Rotron.pdf |
