RER190-39/14/2TDMO ebmpapst

Description

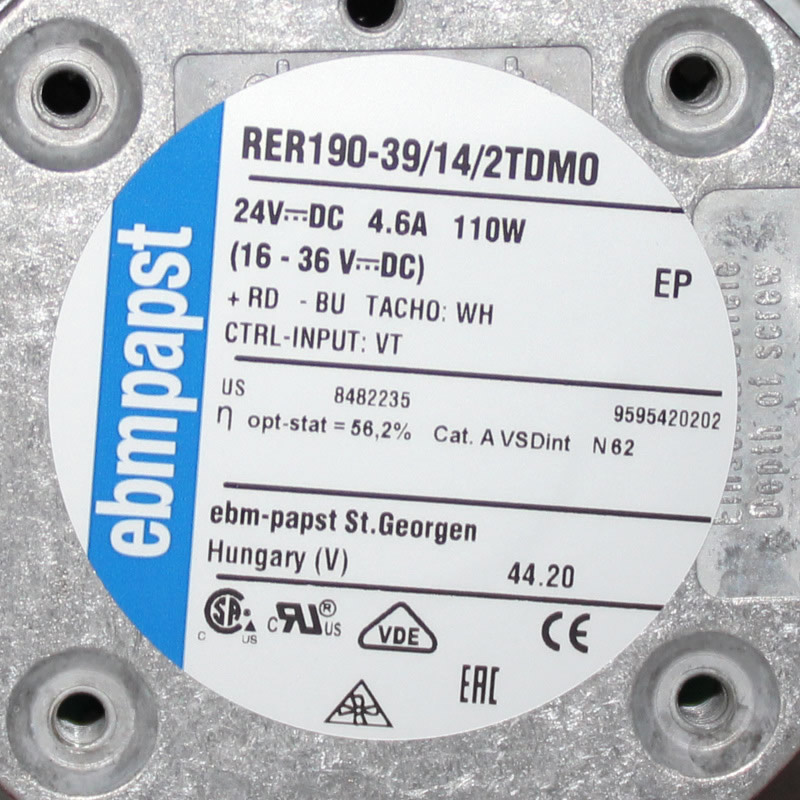

RER190-39/14/2TDMO ebmpapst DC 24VDC 3900RPM 860m3/h 16~36V 110W centrifugal compact fan
9595420202

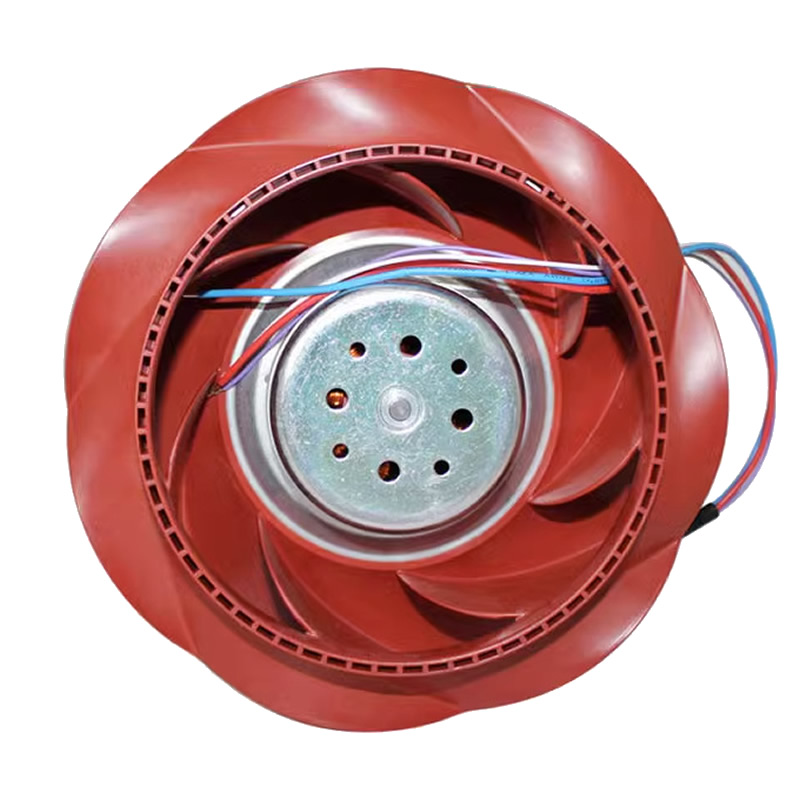

The RER 190-39/14/2TDMO is a DC centrifugal fan by ebm-papst, engineered for high-airflow heat dissipation scenarios. It features a 24VDC nominal voltage (16–36VDC wide voltage range), 3900rpm speed, 110W power consumption, and an operating temperature range of -20°C to 65°C, delivering 860m³/h air flow with a sound power level of 7.9B. Mechanically, it has a φ190×69mm size and weighs 0.87kg, with a glass-fiber reinforced plastic impeller, axial intake/radial discharge airflow, and clockwise rotation (when viewed toward the rotor). Equipped with ball bearings, it offers L10 service life of 52,500 hours at 40°C and 30,000 hours at maximum temperature. Cables support AWG 18/20/22 specifications with speed signal and control input lines. Technically, it uses a three-phase fan drive and backward-curved Radial impeller for smooth, high-efficiency operation, suitable for industrial equipment and ventilation systems requiring high pressure and large flow rates.

Specifications
