REF100-11/14 ebmpapst

Description

REF100-11/14 ebmpapst DC 5400RPM 86m3/h 16~30V centrifugal compact fan

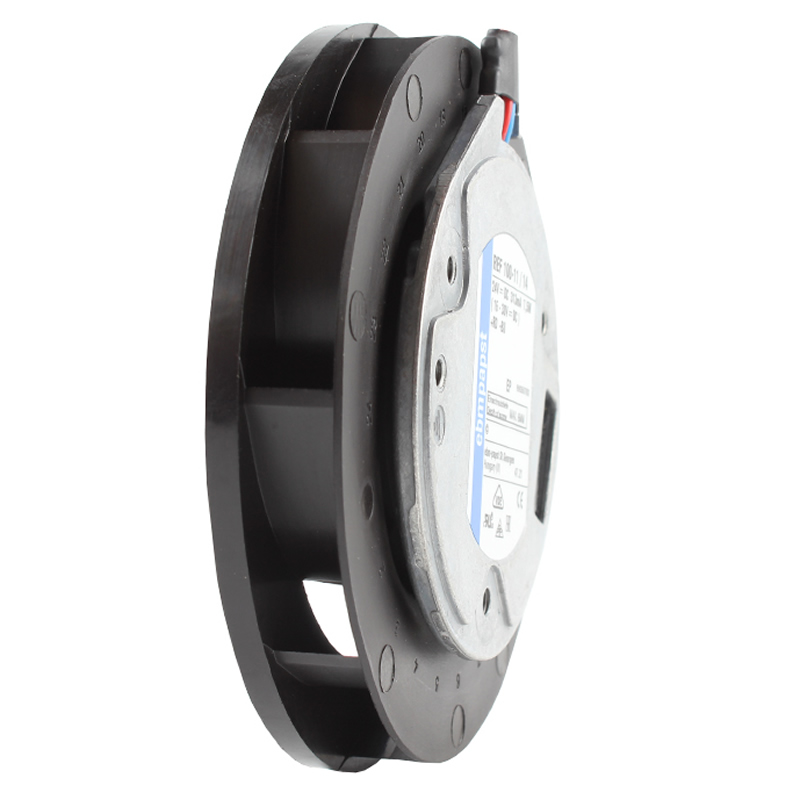

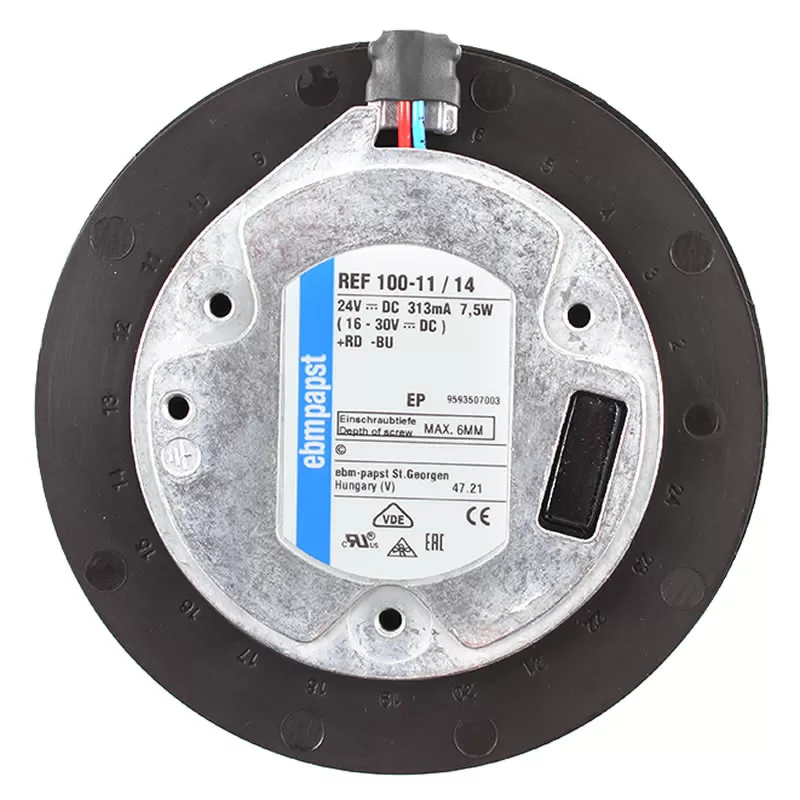

REF 100-11/14 is a single-intake DC centrifugal compact fan manufactured by ebm-papst, designed for high-efficiency cooling applications. Electrical specifications include a nominal 24VDC supply (16-30VDC operational range), 5400rpm rated speed, and 7.5W power consumption. Thermal performance allows operation from -20°C to 75°C, delivering 86m³/h airflow at 6.3B sound power level.

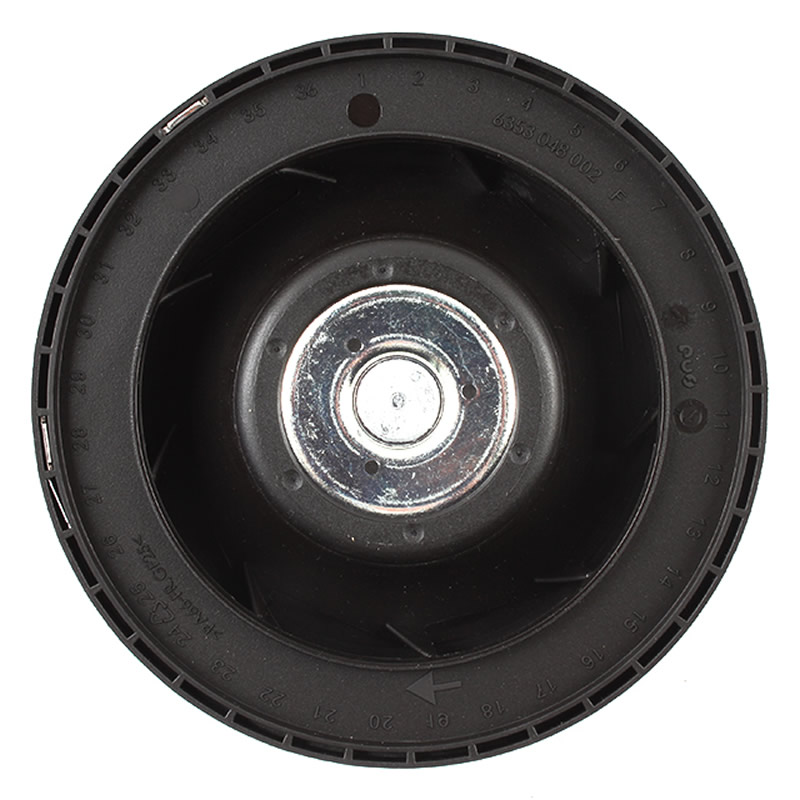

The fan features a backward-curved impeller and scroll housing constructed from glass-fiber reinforced plastic, ensuring structural rigidity and corrosion resistance. With axial inlet/radial outlet airflow configuration and clockwise rotation (viewed from rotor side), it integrates ball bearings for 80,000h L10 service life at 40°C (30,000h at max temperature). Electrical protections include reverse polarity, blocked rotor, and overload safeguards via electronic circuitry.

Mechanical dimensions are Ø100x25mm with 0.16kg mass, fitted with AWG22 TR64 leads. CE-certified, optional speed signal output enhances monitoring capability, making it suitable for industrial and commercial systems requiring reliable thermal management.

Specifications
