Description

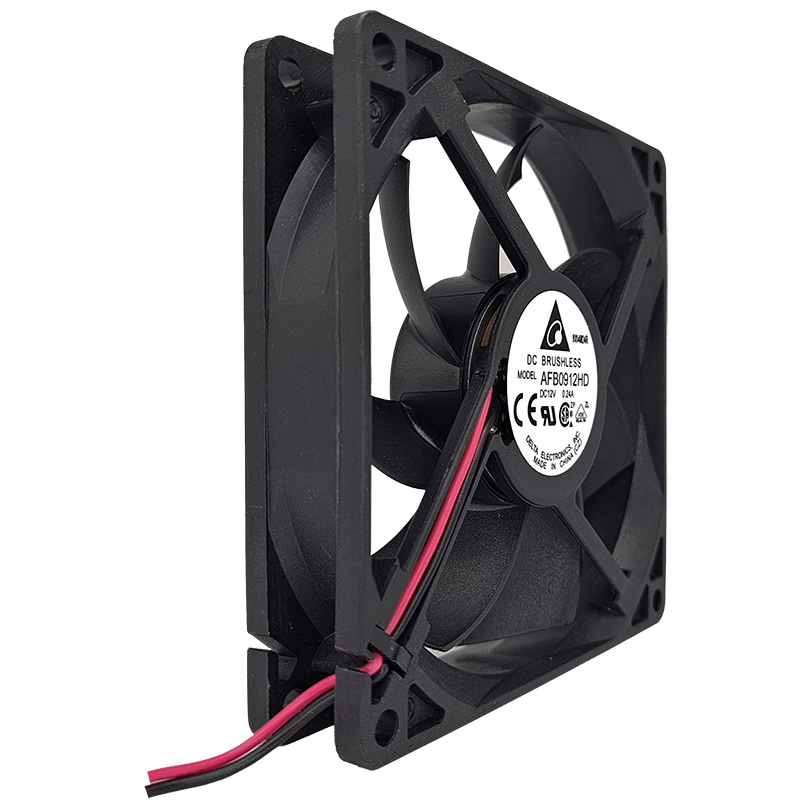

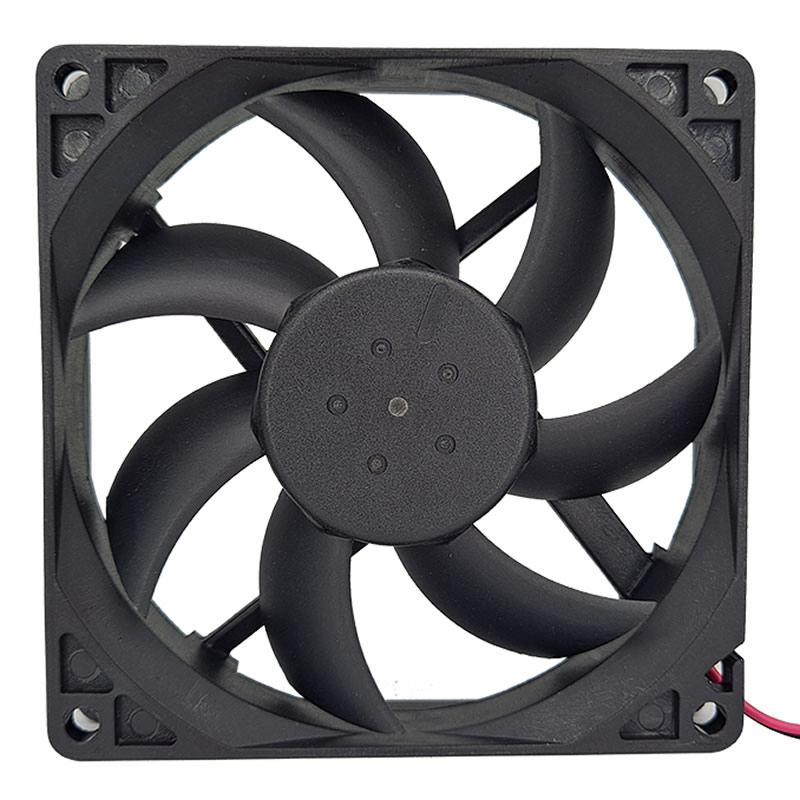

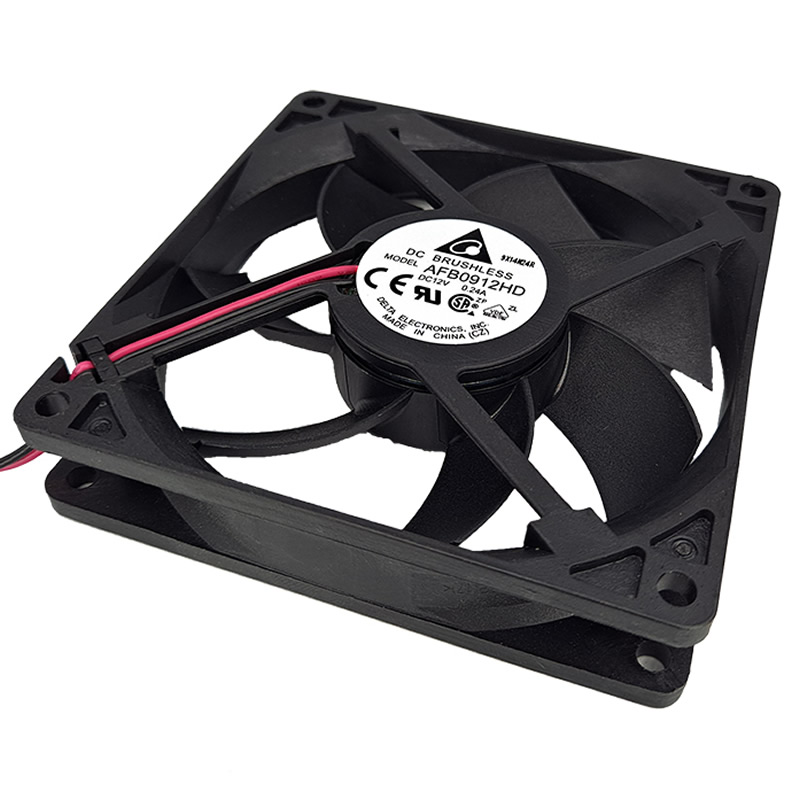

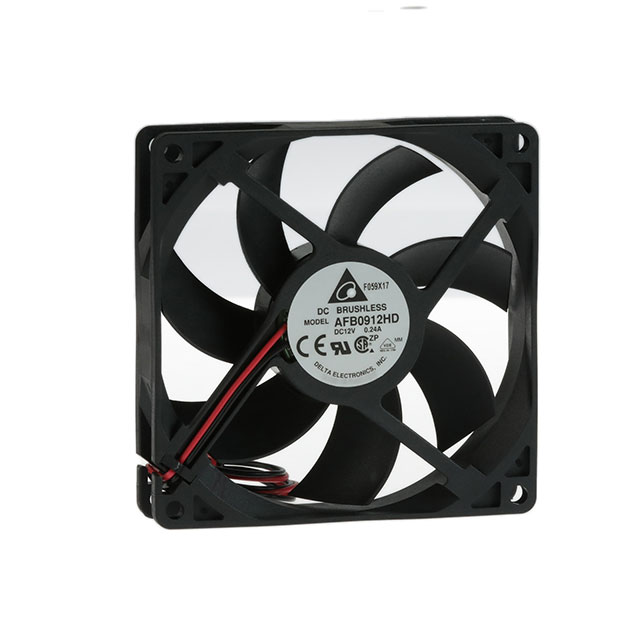

AFB0912HD Delta 12VDC 92x92x20mm 54.6CFM 0.138inH2O(34.3Pa) Ball 35dB(A) 1.92W 2700RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0912HD |
|---|---|
| Manufacturer | Delta Electronics |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 92x92x20 mm |
| Air Flow | 54.6 CFM |
| Air Flow (m3) | 1.53 m³/min |
| Static Pressure | 0.138 in H2O (34.3 Pa) |
| Features | Locked Rotor Protection |
| Fan Type | DC |
| Noise Level | 35 dB(A) |
| Power Rating | 1.92 W |
| Fan Speed | 2700 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.203 lb (92.08 g) |
| Shipping Weight | 0.125 kg |
| Product PDF | AFB0912HD-Delta.pdf |
