Description

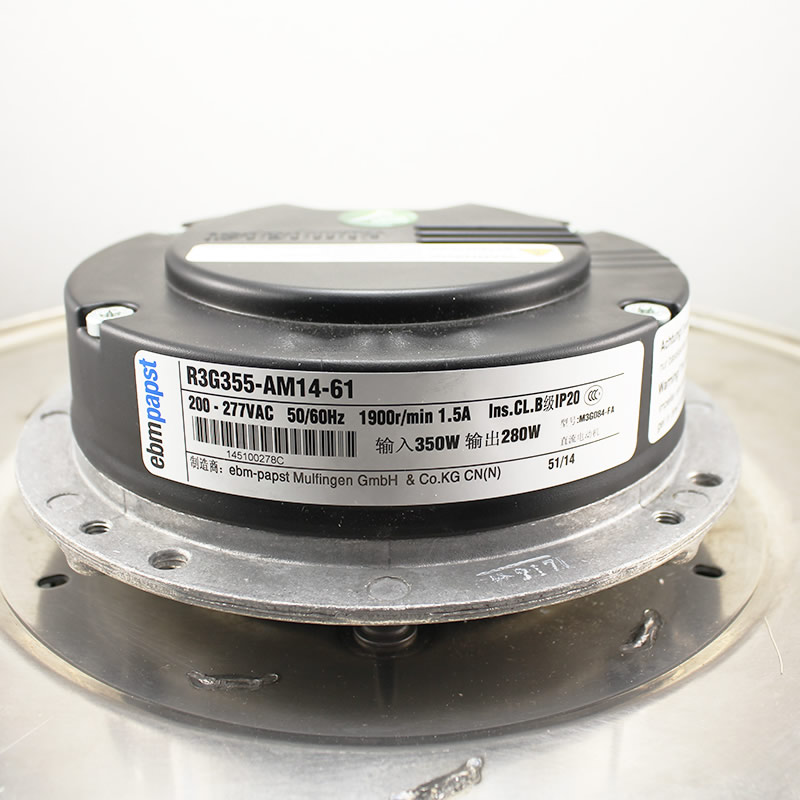

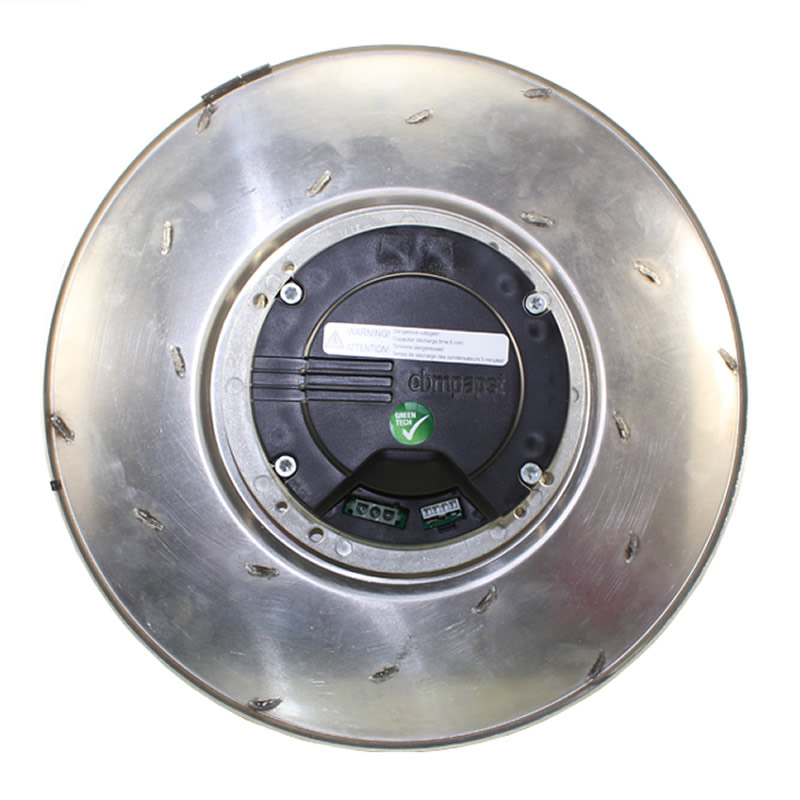

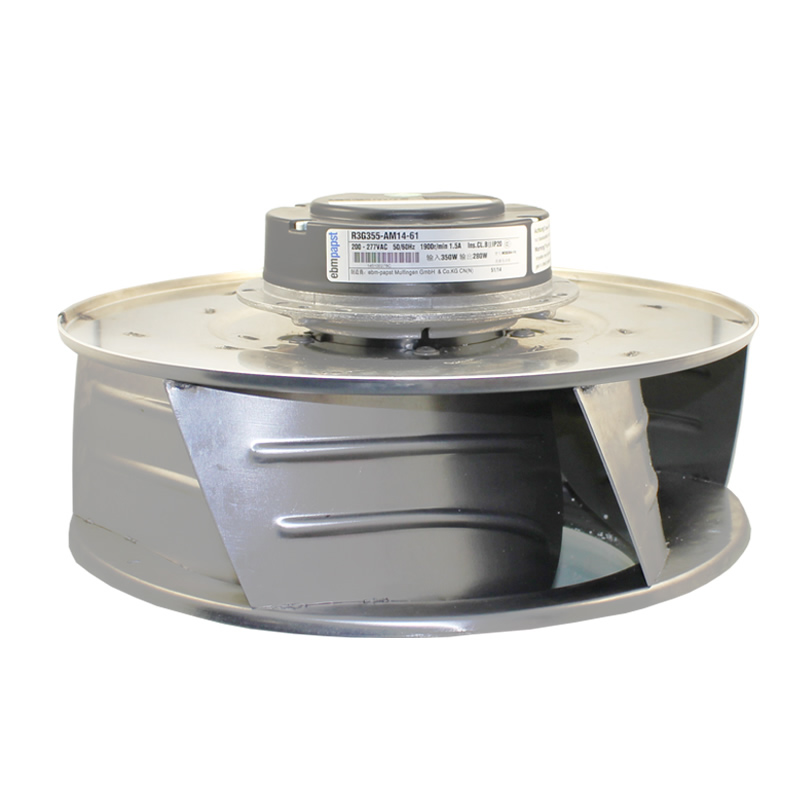

R3G355-AM14-61 ebmpapst 355mm 230VAC 1900RPM 1.5A Ball Bearing 350W 3500m³/h IP20 EC centrifugal fan
Product S3G300-AB56-01 is an axial flow fan manufactured by ebm-papst. It has a size of 300mm and weighs approximately 2.7kg. It features a die-cast aluminum housing and sheet steel blades with a black coating. The electrical parameters are 200/277V AC voltage, 0.76A current, 15W power, and a speed of 1580 RPM. The airflow direction is “V”, and the rotation direction is counter-clockwise. This fan has an IP44 protection rating, insulation class “B”, humidity class F3-1, and is suitable for continuous operation. It is equipped with a ball bearing motor, built-in thermal overload protection, supports 0-10VDC/PWM control input, has variable cable exit, is Protection Class I, and complies with multiple certifications including CE, CCC, CSA, and UL.
Specifications
| Part number | R3G355-AM14-61 |
|---|---|
| Manufacturer | ebm-papst |
| Dimensions | 355 mm |
| Voltage Rating | 230 VAC |
| Operating Voltage | 200 ~ 277 VAC |
| Fan Speed | 1900 RPM |
| Current Rating | 1.5 A |
| Bearing Type | Ball Bearing |
| Fan Type | AC |
| Power Rating | 350 W |
| Phase | 1~ |
| Motor | M3G084-FA |
| Air Flow CMH | 3500 m³/h |
| Number of blades | 6 |
| IP Rating | IP20 |
| Operating Temperature | -13 ~ 104°F (-25 ~ 40°C) |
| Subcategory | EC centrifugal fan |
| Shipping Weight | 6 kg |
| Product PDF | R3G355-AM14-61-ebmpapst.pdf |
