Description

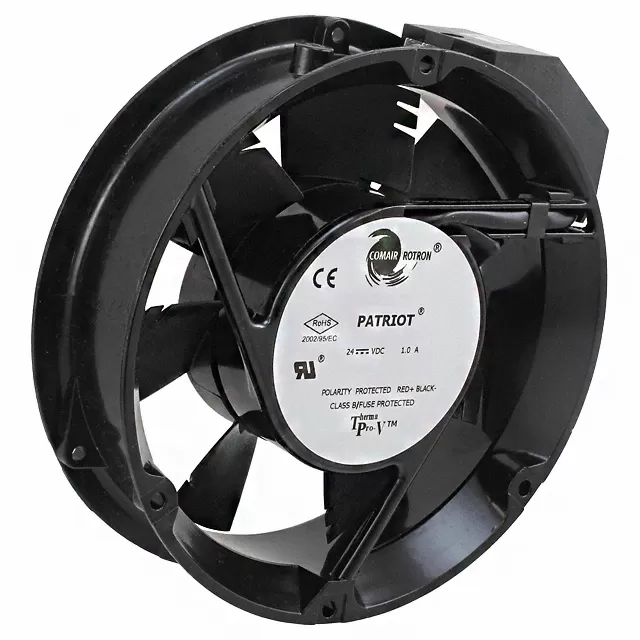

PQ24S4H Comair Rotron 19031397A 172x51mm 24VDC 1.00A 24W 3425RPM 235CFM 399.3m³/h 51.2dB(A) Ball 0.83inH2O 207Pa 2 Terminals Axial DC fan
Specifications
| Model Number | PQ24S4H |
|---|---|
| Air Flow | 235 CFM |
| Weight | 840 g |
| Manufacturer | Comair Rotron |
| Series | Patriot DC |
| Dimensions | 172×51 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 12 – 28VDC |
| Current Rating | 1.00 A |
| Power Rating | 24 W |
| Fan Speed | 3425 RPM |
| Air Flow (m3) | 399.3 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19031397A |
| Noise Level | 51.2 dB(A) |
| Static Pressure | 0.83 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 75000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die Cast Aluminum |
| Termination | 2 Terminals |
| Category | Axial DC |
| Static Pressure Pa | 207 Pa |
| Product PDF | PQ24S4H-Comair-Rotron.pdf |
