D2E097-CB01-02 ebmpapst

Description

D2E097-CB01-02 ebmpapst 230VAC 144x137x140mm 106CFM Ball 47dB(A) 42W 2 Wire Leads Blower, Centrifugal AC Fan

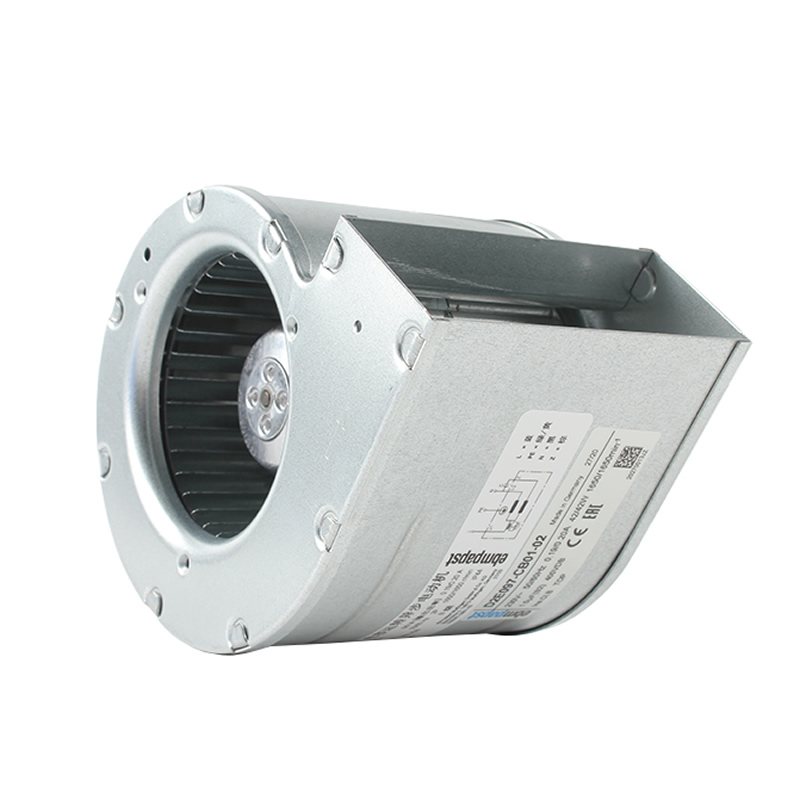

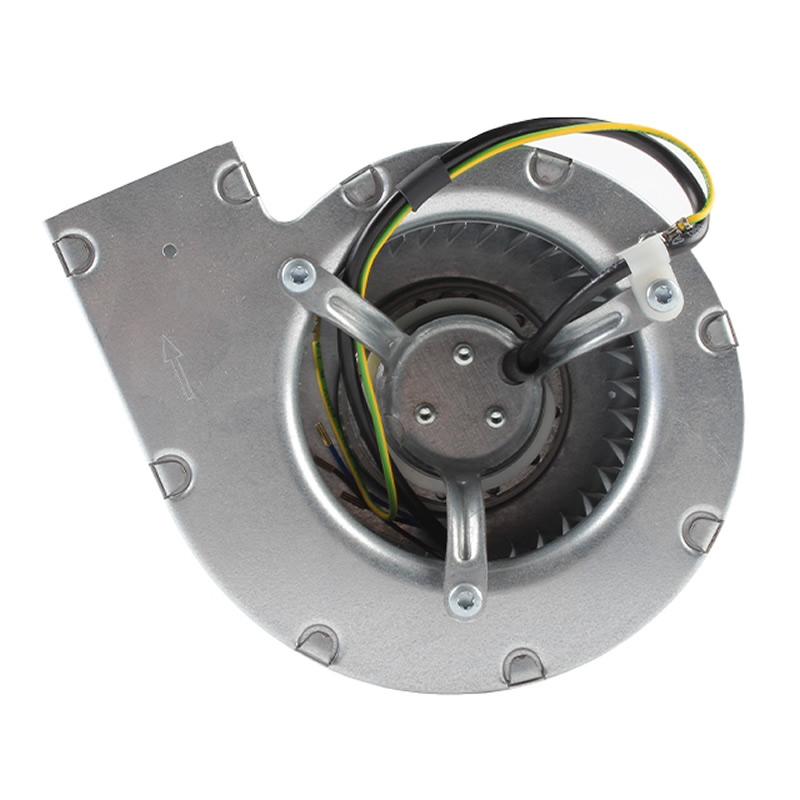

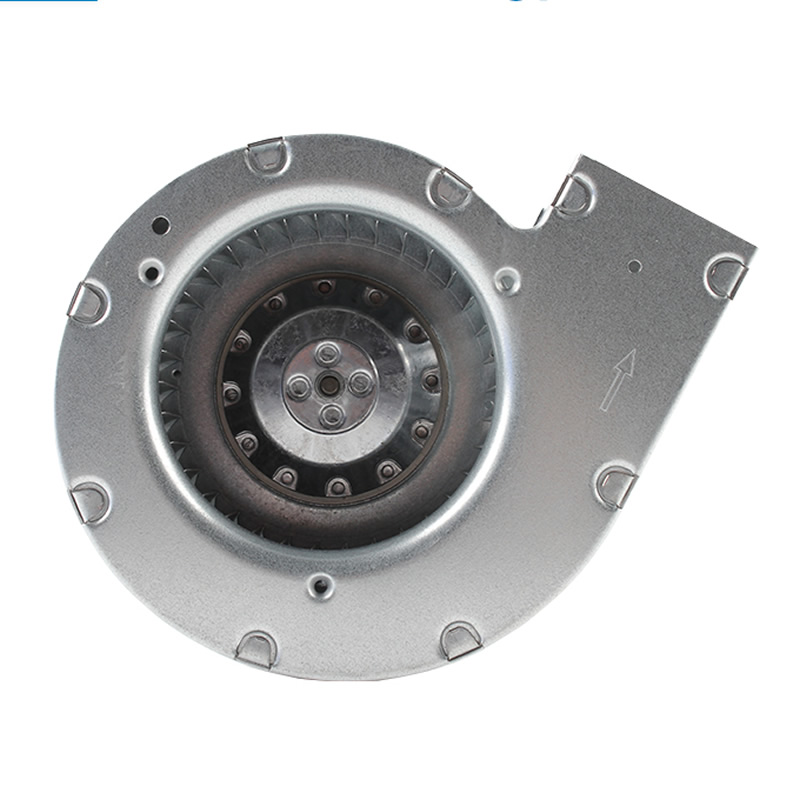

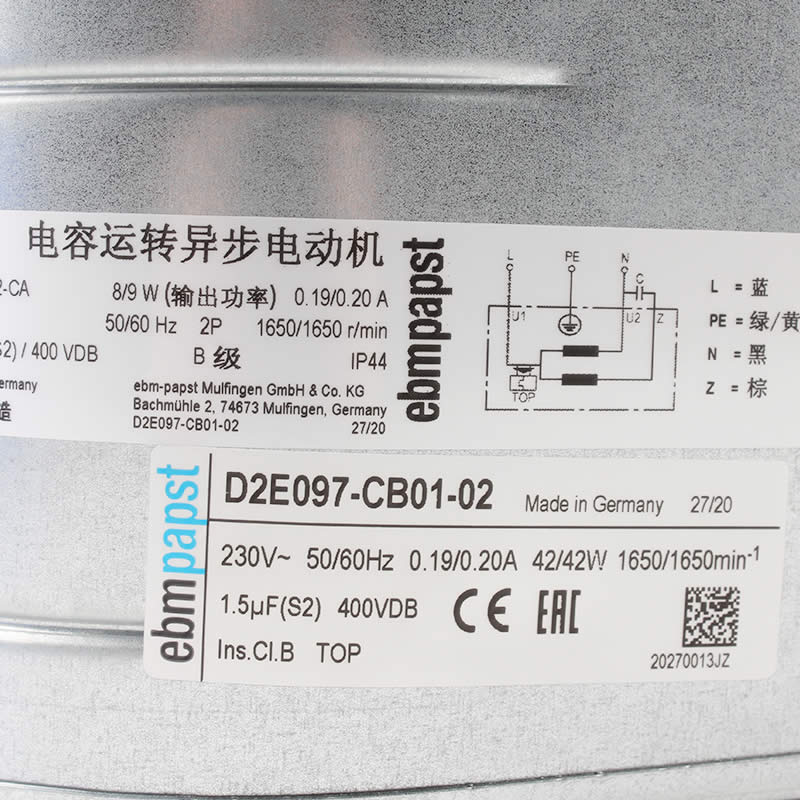

The D2E097-CB01-02 is an AC centrifugal fan with a forward-curved, dual-intake design and housing (without flange), manufactured by ebm-papst Mulfingen GmbH & Co. KG. Featuring the M2E042-CA motor, it operates on a nominal voltage of 230 VAC for both 50 Hz and 60 Hz frequencies, with a speed of 1650 rpm, power consumption of 42 W, and current draw of 0.19 A (50 Hz) / 0.20 A (60 Hz). The fan includes a 1.5 µF capacitor rated for 400 VDC (S2 CE standard), suitable for ambient temperatures ranging from -25°C to 50°C (50 Hz) or 55°C (60 Hz) during operation. Weighing 1.1 kg with a 97 mm fan size, it has a hot-dip galvanized sheet steel impeller and housing, rotating counterclockwise when viewed toward the rotor. The IP44 protection rating (installation/position-dependent), insulation class “B”, and ball bearings ensure reliable performance. It allows any installation position, includes a thermal overload protector, and meets EN 60335-1, CE, and CCC standards. The fan is connected via a 3×0.25 mm² PVC wire with crimped splices (U1: blue, Z: brown, U2: black, PE: green/yellow), suitable for various applications requiring dual-intake airflow with specified thermal and electrical protections.

Specifications
