Description

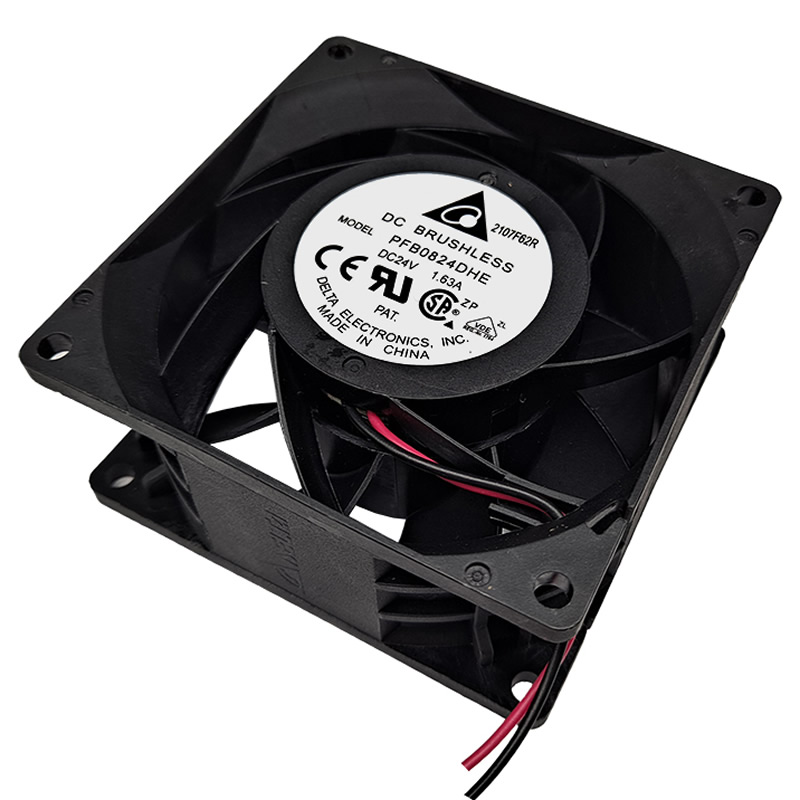

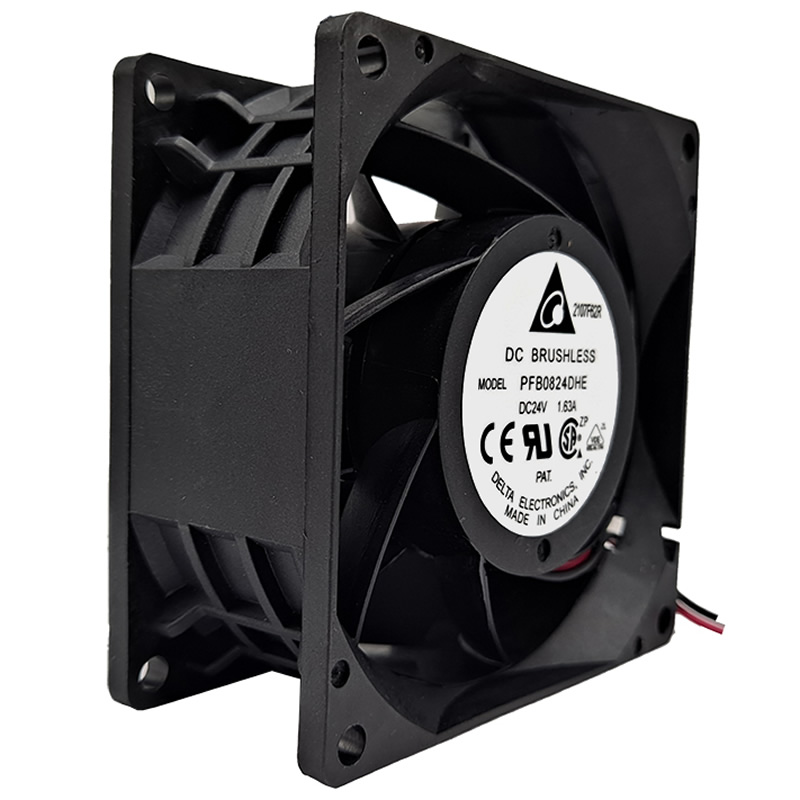

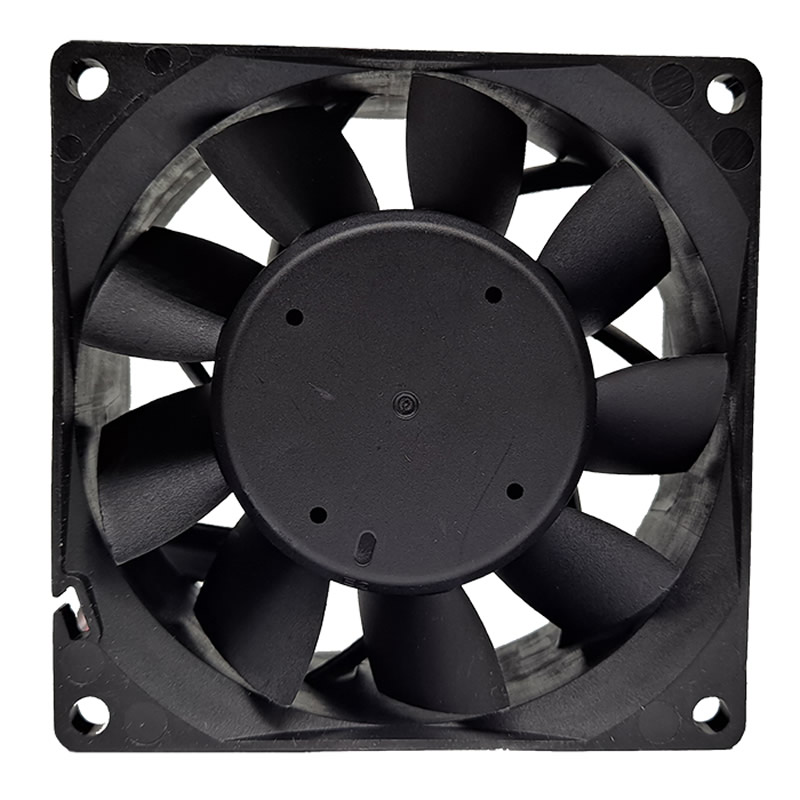

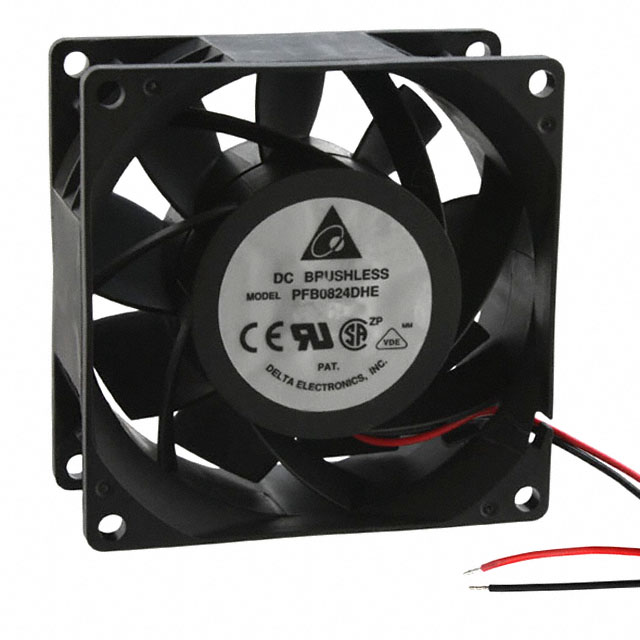

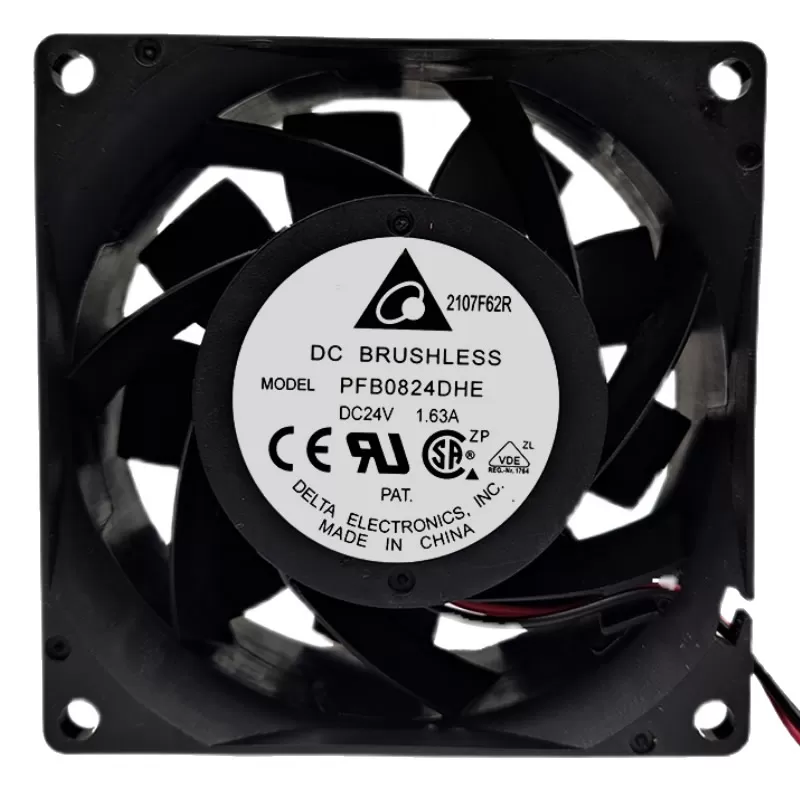

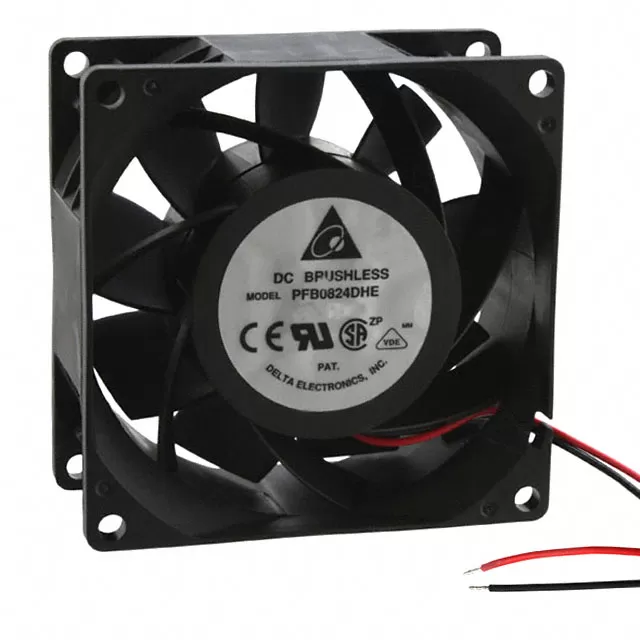

PFB0824DHE Delta 80x80x38mm Ball 24VDC 132.56CFM(3.754m3/min) 2.03inchH2O(51.57mmH2O) 65.0dB(A) 32.40W 9000RPM 2wireleads fan
Specifications
| Part Number | PFB0824DHE |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 32.40 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | PFB |
| Air Flow (m3) | 3.754 m3/min |
| Dimensions | 80x80x38 mm |
| Termination | 2 wire leads |
| Fan Speed | 9000 RPM |
| Fan Type | DC |
| Static Pressure | 2.03 inchH2O (51.57 mmH2O) |
| Noise Level | 65.0 dB(A) |
| Air Flow | 132.56 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.452 lb (205.02 g) |
| Category | Axial |
| Current Rating | 1.35 A |
| Operating Voltage | 14 ~ 26.4 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 50000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | PFB0824DHE-Delta.pdf |
