Description

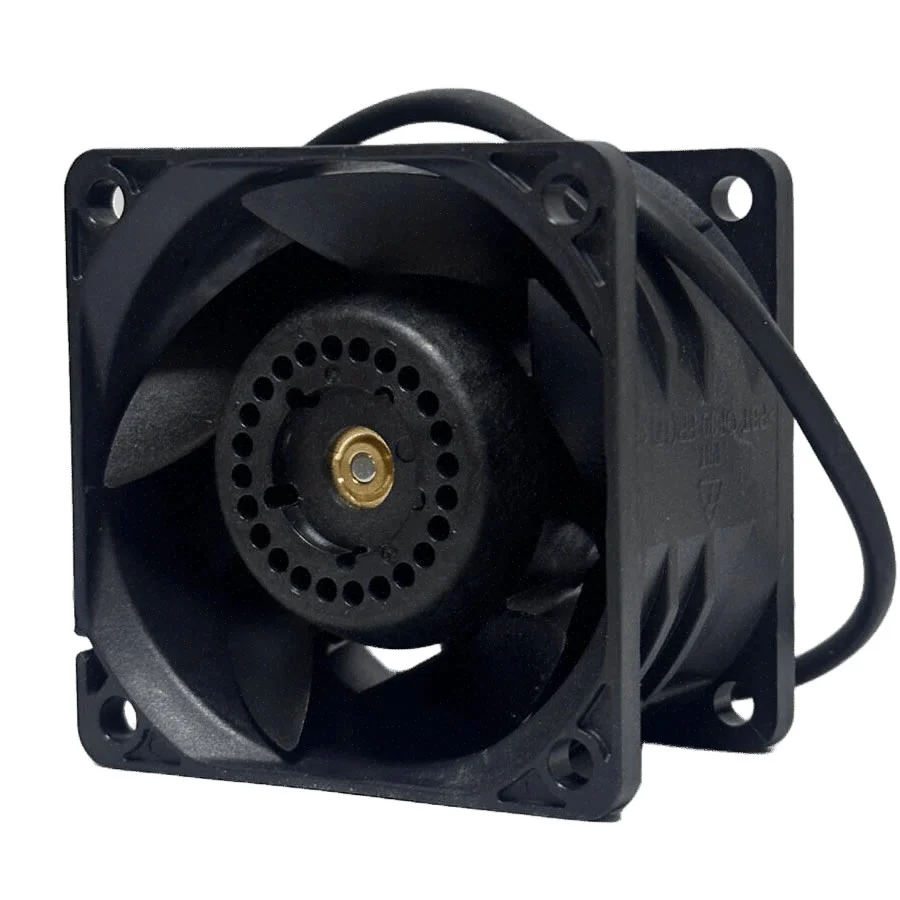

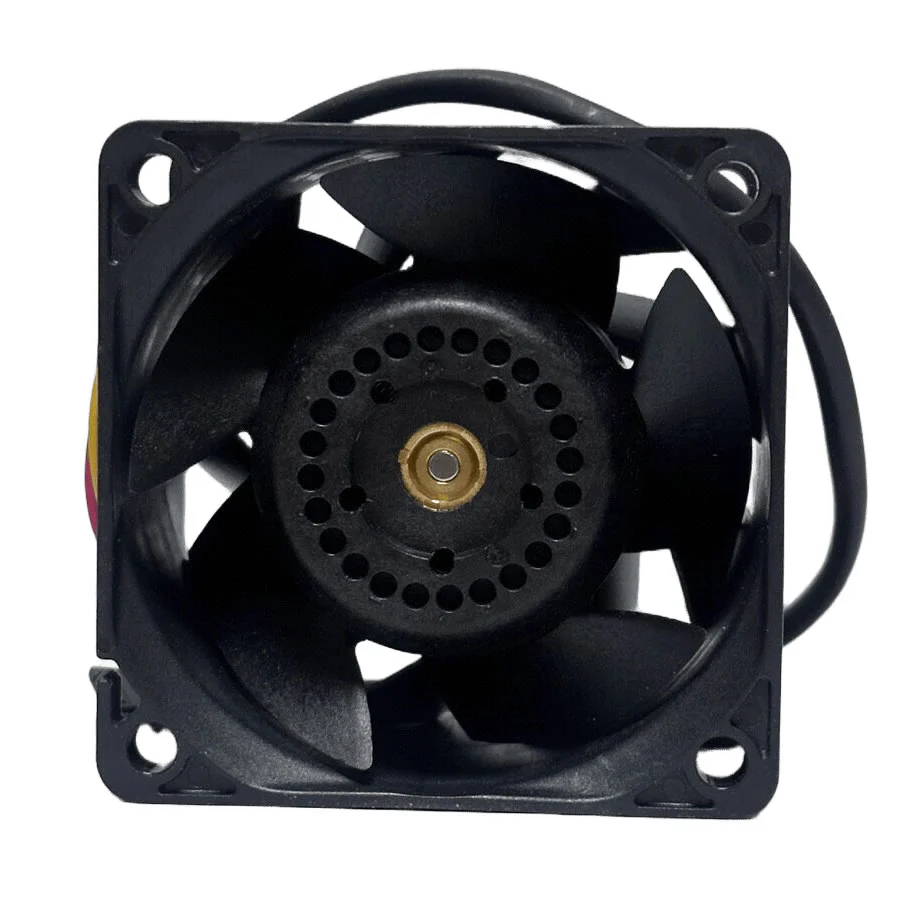

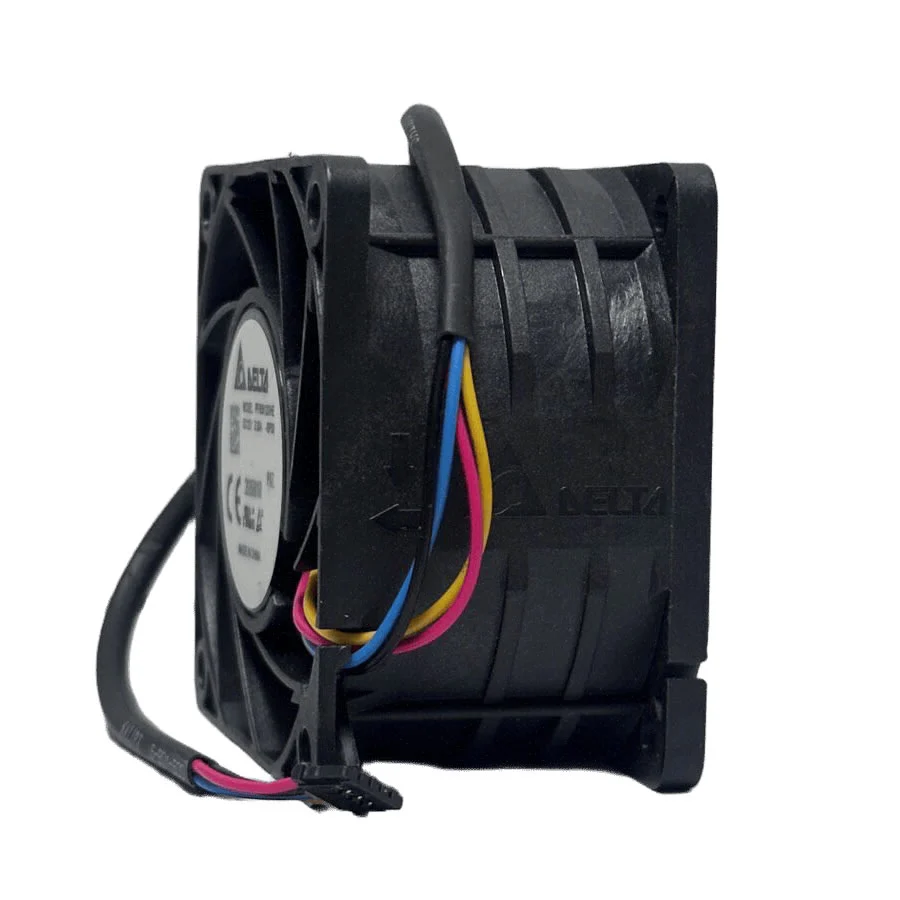

The Delta PFR0612XHE-SP00 is a high-performance 12V DC brushless axial fan from Delta Electronics’ PFR series. Designed for applications requiring high airflow and high static pressure capability, this compact 60 x 60 x 38 mm fan provides reliable cooling performance for industrial equipment, electronic systems, and thermal management applications.
The PFR0612XHE-SP00 features a 4-wire fan interface with PWM speed control and tachometer feedback for intelligent fan monitoring and speed regulation. With a high-speed 16500 RPM motor, ball bearing construction, and locked rotor protection, this fan is designed for demanding continuous cooling environments.
Delivering up to 76.16 CFM airflow and 3.185 inch-H2O static pressure, the Delta PFR0612XHE-SP00 is suitable for applications where strong airflow performance is required in a compact fan package.
Key Features
- Original Delta Electronics PFR0612XHE-SP00 fan
- 12V DC brushless axial cooling fan
- 60 x 60 x 38 mm compact fan size
- High-speed 16500 RPM operation
- 4-wire fan connection
- PWM speed control
- Tachometer / speed sensor feedback
- Ball bearing system
- Locked rotor protection
- High airflow and high static pressure performance
- Suitable for industrial thermal management applications
Technical Specifications
| Brand | Delta Electronics |
| Model | PFR0612XHE-SP00 |
| Series | PFR Series |
| Product Type | DC Brushless Axial Flow Fan |
| Fan Dimension | 60 x 60 x 38 mm |
| Rated Voltage | 12 VDC |
| Operating Voltage | 7.0 – 13.2 VDC |
| Input Current | 2.30 A (Maximum 2.76 A) |
| Current on Label | 3.30 A |
| Input Power | 27.60 W (Maximum 33.12 W) |
| Speed | 16500 RPM (Reference) |
| Maximum Airflow | 2.157 m³/min (76.16 CFM) |
| Minimum Airflow | 1.941 m³/min (68.54 CFM) |
| Maximum Air Pressure | 80.90 mmH2O (3.185 inch-H2O) |
| Minimum Air Pressure | 65.52 mmH2O (2.579 inch-H2O) |
| Noise Level | 67.7 dB-A (Maximum 71.7 dB-A) |
| Motor Type | DC Brushless Motor |
| Motor Design | Single Phase, Four Pole |
| Bearing System | Ball Bearing |
| Wire Configuration | 4 Wire Leads |
| Control Function | PWM Speed Control |
| Feedback | Tachometer / Speed Sensor |
| Protection Function | Locked Rotor Protection |
| Insulation Type | UL Class A |
| Operating Temperature | -10°C to +70°C |
| Frame Material | Plastic |
| Blade Material | Plastic |
| Life Expectancy | 70,000 Hours at 40°C |
| Approval | CE, cURus, TUV |
Applications
- Industrial control equipment
- Power electronics cooling
- Telecommunication equipment
- Server and networking equipment
- Electronic enclosure cooling
- High-density thermal management systems
Replacement Information
The Delta PFR0612XHE-SP00 is designed for applications requiring compact size combined with high airflow and high static pressure performance. When replacing this fan, verify voltage, dimensions, airflow, static pressure, connector configuration, PWM control compatibility, and tachometer feedback requirements.
Specifications
| Part Number | PFR0612XHE-SP00 |
|---|---|
| Power Rating | 27.60 W |
| Approval Agency | CE, cURus, TUV |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Series | PFR |
| Air Flow (m3) | 2.157 m3/min |
| Dimensions | 60x60x38 mm |
| Termination | 4 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 16500 RPM |
| Fan Type | DC |
| Static Pressure | 3.185 inchH2O (80.90 mmH2O) |
| Noise Level | 67.7 dB(A) |
| Air Flow | 76.16 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.287 lb (130.18 g) |
| Category | Axial |
| Current Rating | 2.30 A |
| Operating Voltage | 7 ~ 13.2 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Fan Size | 60 x 60 x 38 mm |
| Voltage Rated | 12 VDC |
| Cooling Type | Axial Fan |
| Air Flow Range | 50 – 150 CFM ( 85 – 255 m³/h ) |
| Static Pressure Range | 50 – 120 mmH₂O ( 500 – 1200 Pa ) |
| Fan Speed Range | > 15,000 RPM |
| Noise | 60 – 75 dB(A) (High Performance) |
| Shipping Weight | 0.5 kg |
