Description

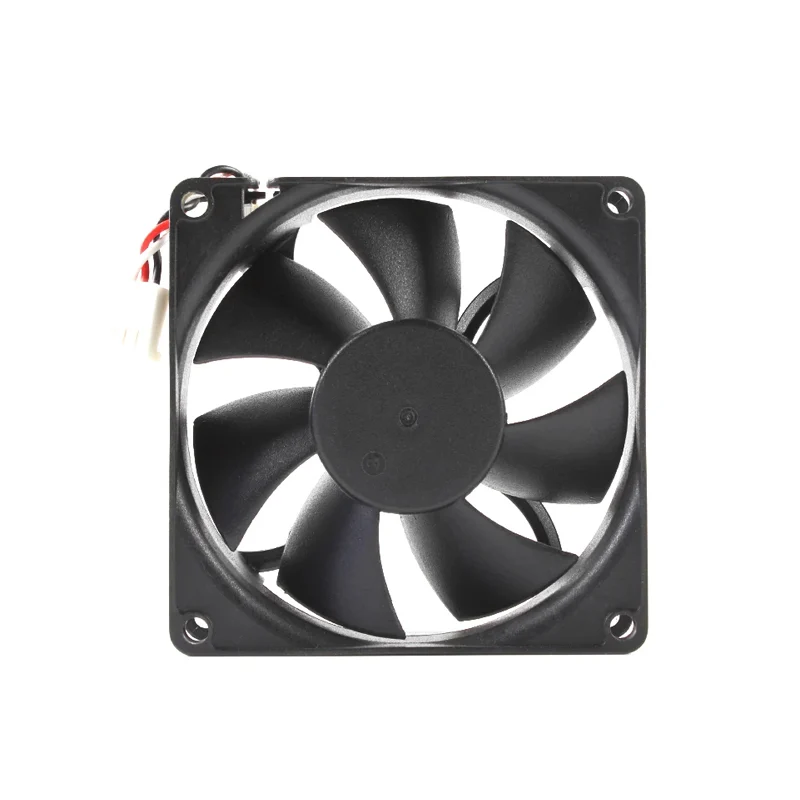

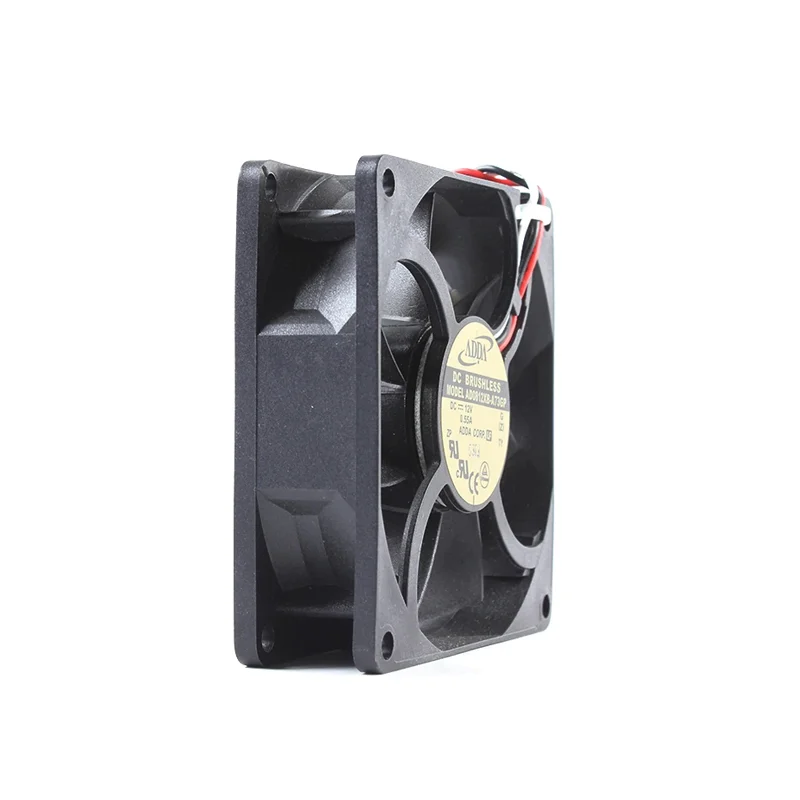

The ADDA AD0812XB-A73GP is an 80mm DC axial fan from the AD8025GP series, designed for reliable air cooling in industrial and electronic equipment. Featuring a standard 80 x 80 x 25 mm frame size, 12 VDC rated voltage, and ball bearing structure, this fan provides stable airflow performance and long operating life for continuous cooling applications. The AD0812XB-A73GP operates at 4500 RPM and delivers an airflow of 67 CFM with a maximum static pressure of 7.62 mmAq. Equipped with a 3-wire connection and tachometer speed signal output, this 8025 axial fan is suitable for servers, networking equipment, industrial control systems, power supplies, and OEM replacement applications.
Key Features
- Original ADDA AD8025GP series DC axial fan
- Standard 80 x 80 x 25 mm compact frame size
- 12 VDC operating voltage
- Ball bearing design for extended service life
- 3-wire connection with speed sensor output
- High airflow performance up to 67 CFM
- Suitable for industrial and electronic cooling applications
- UL 94V-0 rated plastic frame and impeller
Technical Specifications
| Manufacturer | ADDA |
| Model | AD0812XB-A73GP |
| Series | AD8025GP |
| Product Type | DC Axial Fan |
| Dimensions | 80 x 80 x 25 mm |
| Voltage | 12 VDC |
| Rated Current | 0.55 A |
| Rated Power | 6.6 W |
| Actual Power | 4.56 W |
| Speed | 4500 RPM |
| Airflow | 67 CFM |
| Airflow | 1.896 m³/min |
| Static Pressure | 7.62 mmAq |
| Static Pressure | 0.300 inAq |
| Noise Level | 46 dB(A) |
| Bearing Type | Ball Bearing |
| Connection | 3 Wire / 3 Pin |
| Speed Sensor | Tachometer Signal |
| Weight | 95 g |
| Frame Material | UL 94V-0 Rated |
Applications
- Server and networking equipment
- Industrial control systems
- Power supply cooling
- Communication equipment
- Electronic enclosures
- OEM replacement cooling applications
Replacement Information
The ADDA AD0812XB-A73GP is suitable as a replacement 80mm axial fan for equipment requiring a standard 8025 fan size, 12VDC power supply, ball bearing reliability, and tachometer monitoring. Before replacement, verify the fan dimensions, voltage rating, connector configuration, airflow requirements, and mounting specifications.
Specifications
| Manufacturer | ADDA Corporation |
|---|---|
| Fan Size | 80 x 80 x 25 mm |
| Voltage Rated | 12 VDC |
| Cooling Type | Axial Fan |
| Fan Speed Range | 2,000 – 4,500 RPM |
| Air Flow Range | 50 – 150 CFM ( 85 – 255 m³/h ) |
| Static Pressure Range | 2.5 – 10 mmH₂O ( 25 – 100 Pa ) |
| Noise | 45 – 60 dB(A) (Moderate) |
| Shipping Weight | 0.25 kg |
