Description

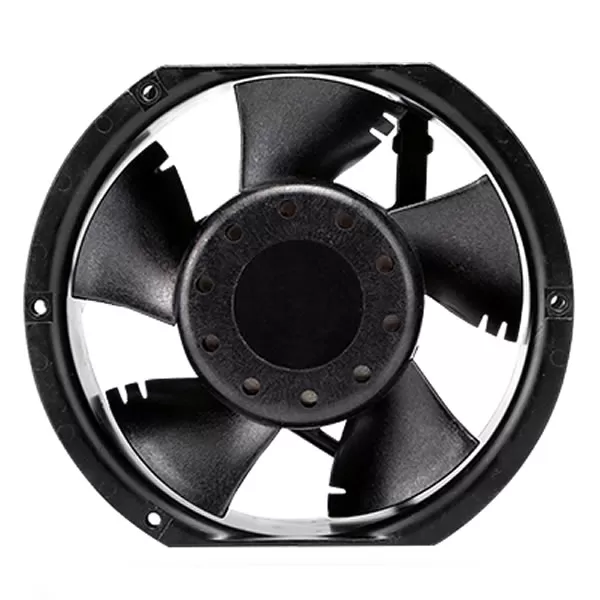

MT24R0X-E2 Comair Rotron 19041196A 172x150x55mm 24VDC 1.70A 41W 4000RPM 345CFM 580.3m³/h 60.6dB(A) Ball 1.10inH2O 272Pa Harness Axial DC fan
Specifications
| Model Number | MT24R0X-E2 |
|---|---|
| Air Flow | 345 CFM |
| Weight | 835 g |
| Manufacturer | Comair Rotron |
| Series | Maltese DC |
| Dimensions | 172x150x55 mm |
| Voltage Rating | 24 VDC |
| Fan Type | DC |
| Operating Voltage | 12 – 28VDC |
| Current Rating | 1.70 A |
| Power Rating | 41 W |
| Fan Speed | 4000 RPM |
| Air Flow (m3) | 580.3 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19041196A |
| Noise Level | 60.6 dB(A) |
| Static Pressure | 1.10 in H2O |
| Operating Temperature | -40 ~ 158°F (-40 ~ 70°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, cUL, UL |
| Lifetime @ Temp | 90000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | Harness |
| Category | Axial DC |
| Static Pressure Pa | 272 Pa |
| Product PDF | MT24R0X-E2-Comair-Rotron.pdf |
