Description

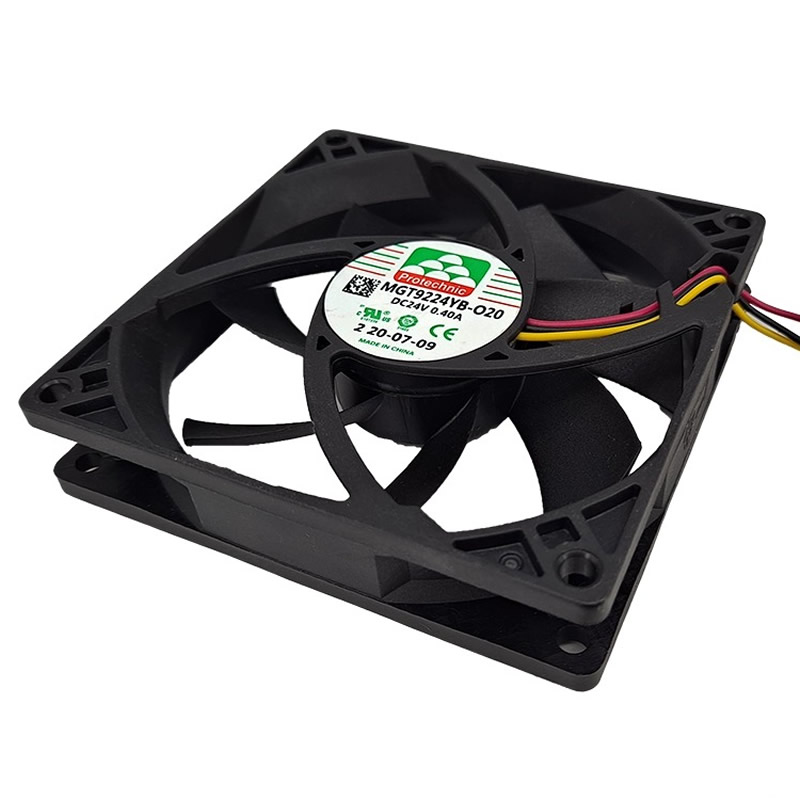

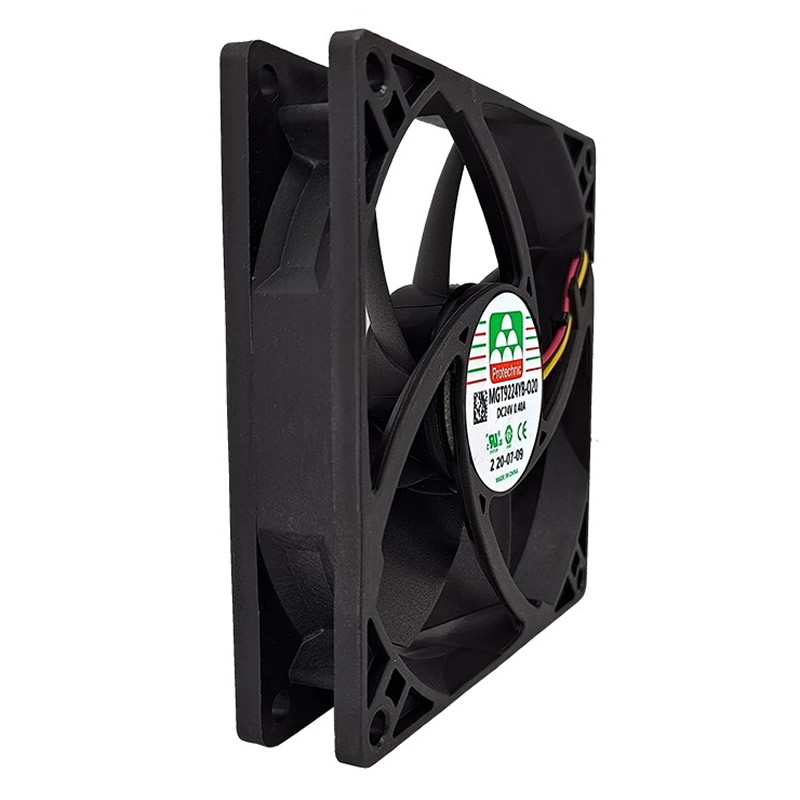

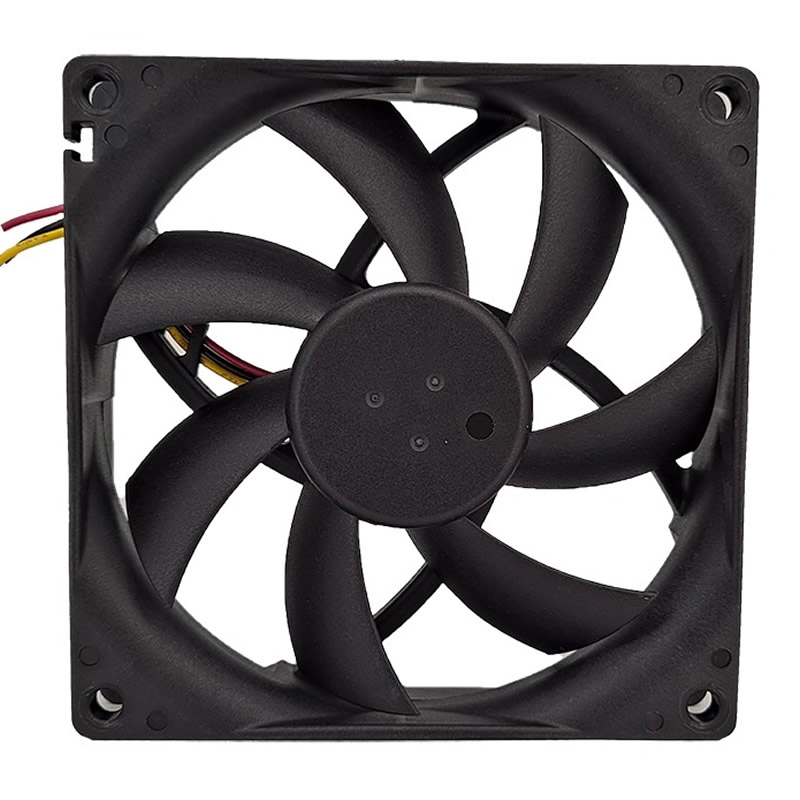

MGT9224YB-O20 Protechnic 24VDC 1.992m³/min 70.32CFM 57.29Pa 0.23inH2O 3800RPM 0.4A 9.6W 43.5dB(A) 92x92x20mm Ball Bearing 4 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT9224YB-O20 |
|---|---|
| Manufacturer | Protechnic Electric |
| Fan Type | DC |
| Voltage Rating | 24 VDC |
| Air Flow CMM | 1.992 m³/min |
| Air Flow | 70.32 CFM |
| Static Pressure Pa | 57.29 Pa |
| Static Pressure mmAq | 5.84 mmAq |
| Static Pressure | 0.23 in H2O |
| Fan Speed | 3800 RPM |
| Current Rating | 0.4 A |
| Actual Current | 0.16 A |
| Power Rating | 9.6 W |
| Actual Power | 3.84 W |
| Noise Level | 43.5 dB(A) |
| Weight | 81 g |
| Dimensions | 92x92x20 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 4 Wire Leads |
| Category | Axial Fan |
| Features | Automatic restart,locked current protection |
| series | 92*92*20mm series |
| Shipping Weight | 0.25 kg |
| Product PDF | MGT9224YB-O20-Protechnic.pdf |
