Description

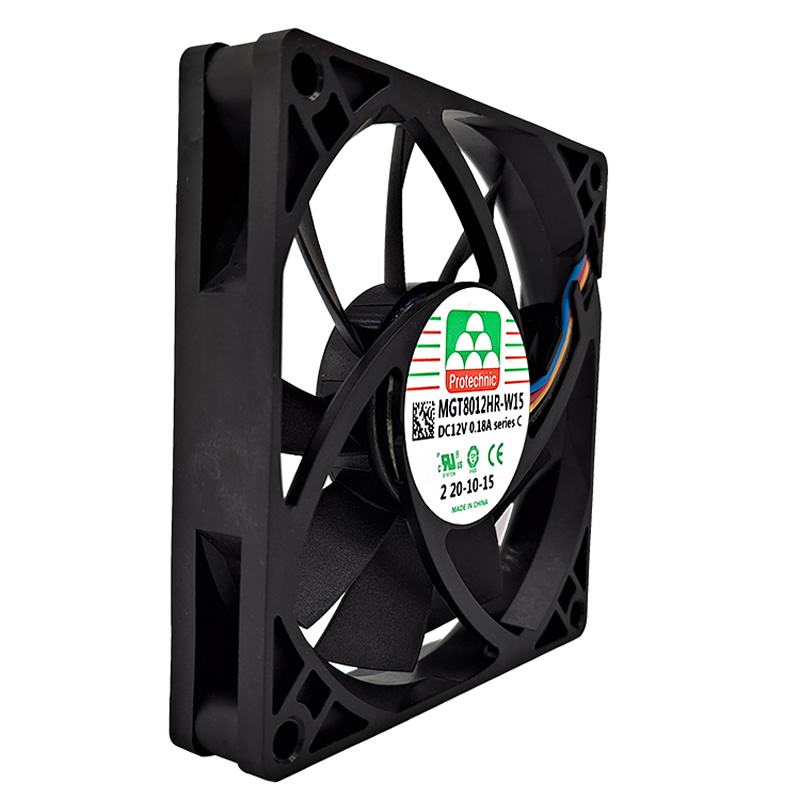

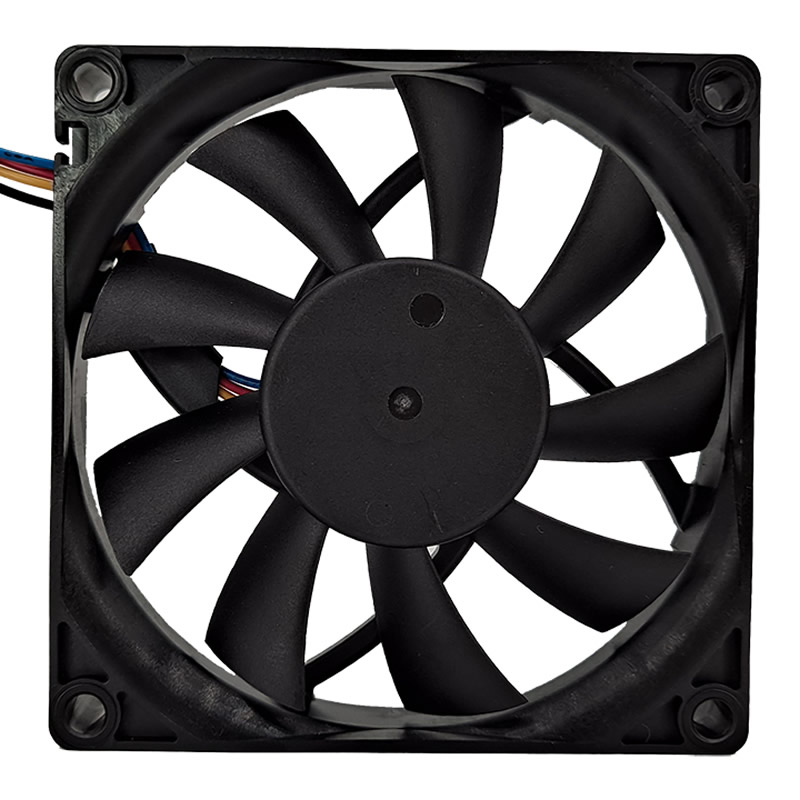

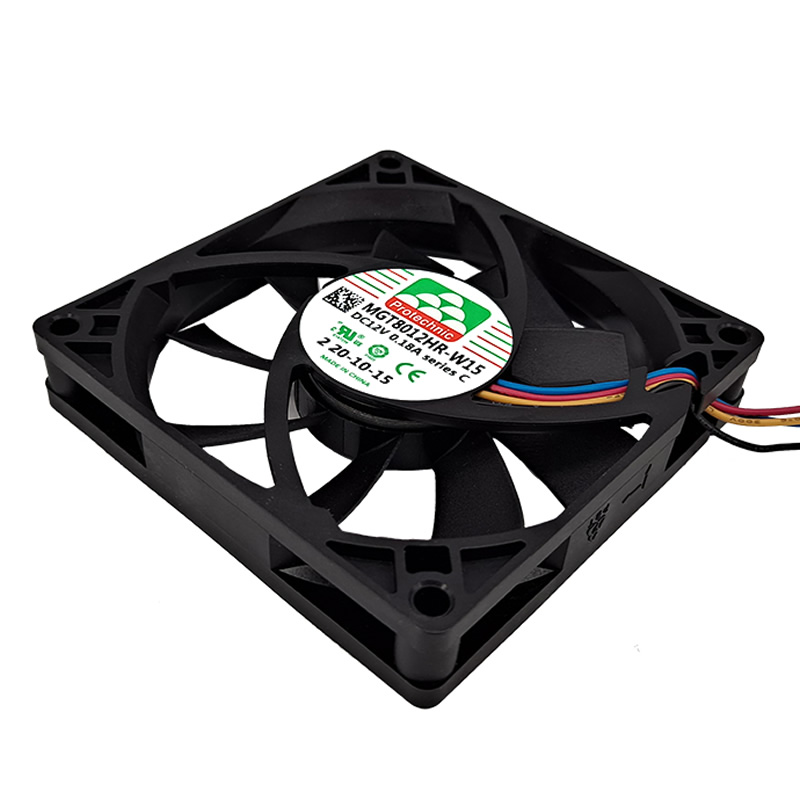

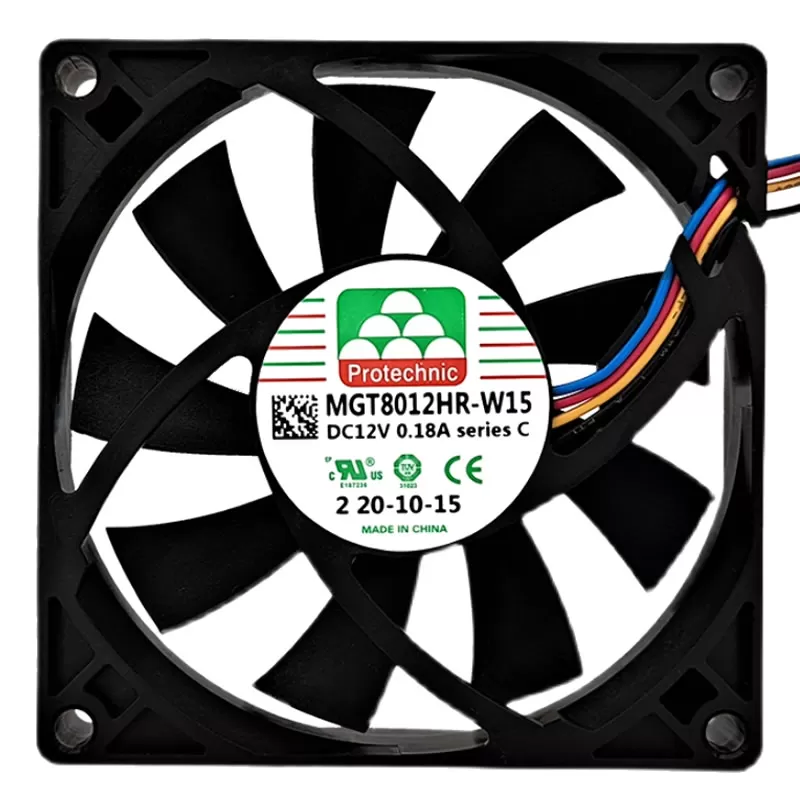

MGT8012HR-W15 Protechnic 12VDC 0.914m³/min 32.27CFM 28.74Pa 0.115inH2O 3000RPM 0.18A 2.16W 32.6dB(A) 80x80x15mm Ball Bearing 4 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT8012HR-W15 |
|---|---|
| Actual Power | 1.2 W |
| Fan Type | DC |
| Voltage Rating | 12 VDC |
| Air Flow CMM | 0.914 m³/min |
| Air Flow | 32.27 CFM |
| Static Pressure Pa | 28.74 Pa |
| Static Pressure mmAq | 2.93 mmAq |
| Static Pressure | 0.115 in H2O |
| Fan Speed | 3000 RPM |
| Current Rating | 0.18 A |
| Actual Current | 0.1 A |
| Power Rating | 2.16 W |
| Manufacturer | Protechnic Electric |
| Weight | 55 g |
| Noise Level | 32.6 dB(A) |
| Dimensions | 80x80x15 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 4 Wire Leads |
| Category | Axial Fan |
| Features | Pulse width modulation,automatic restart,locked current protection(PWM) |
| series | 80*80*15mm seriesC |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | MGT8012HR-W15-Protechnic.pdf |
