Description

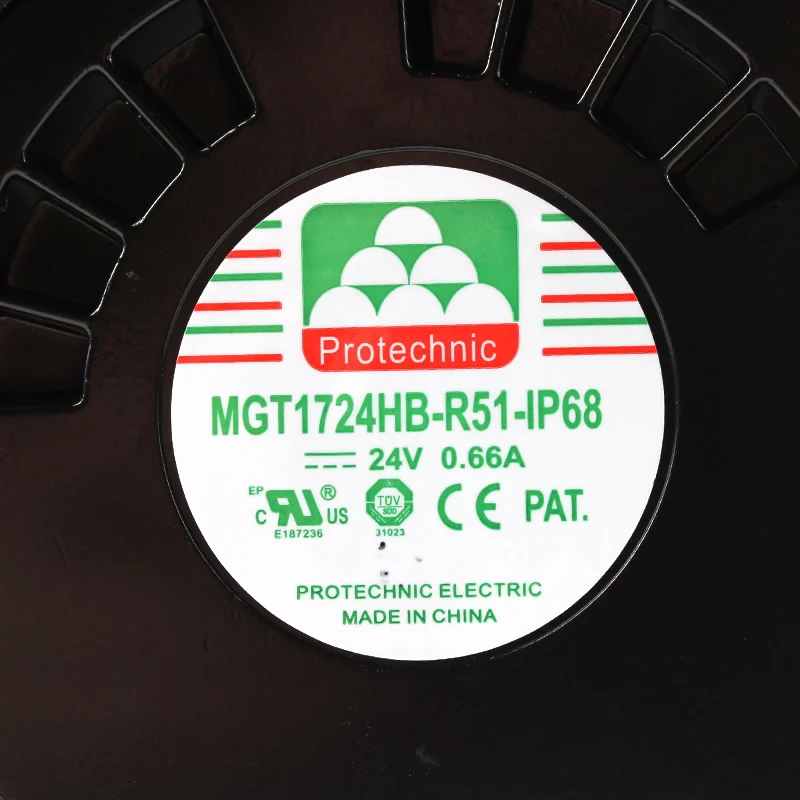

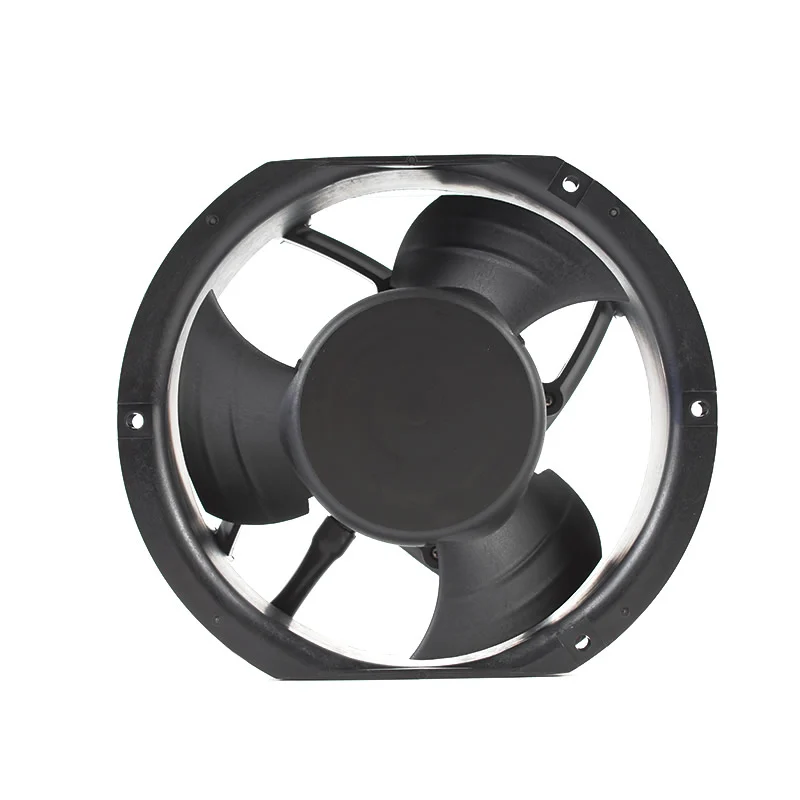

MGT1724HB-R51 Protechnic 24VDC 7.11m³/min 251CFM 176.58Pa 0.709inH2O 3350RPM 0.66A 15.84W 55dB(A) 172x150x50.8mm Ball Bearing 4 Wire Leads DC Axial Fan
Specifications
| Model Number | MGT1724HB-R51 |
|---|---|
| Manufacturer | Protechnic Electric |
| Fan Type | DC |
| Voltage Rating | 24 VDC |
| Air Flow CMM | 7.11 m³/min |
| Air Flow | 251 CFM |
| Static Pressure Pa | 176.58 Pa |
| Static Pressure mmAq | 18 mmAq |
| Static Pressure | 0.709 in H2O |
| Fan Speed | 3350 RPM |
| Current Rating | 0.66 A |
| Actual Current | 0.58 A |
| Power Rating | 15.84 W |
| Actual Power | 14.02 W |
| Noise Level | 55 dB(A) |
| Weight | 830 g |
| Dimensions | 172x150x50.8 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 4 Wire Leads |
| Category | Axial Fan |
| Features | Rotate detection,automatic restart,locked current protection |
| series | 172*150*50.8mm seriesA |
| Shipping Weight | 1.5 kg |
| Product PDF | MGT1724HB-R51-Protechnic.pdf |
