Description

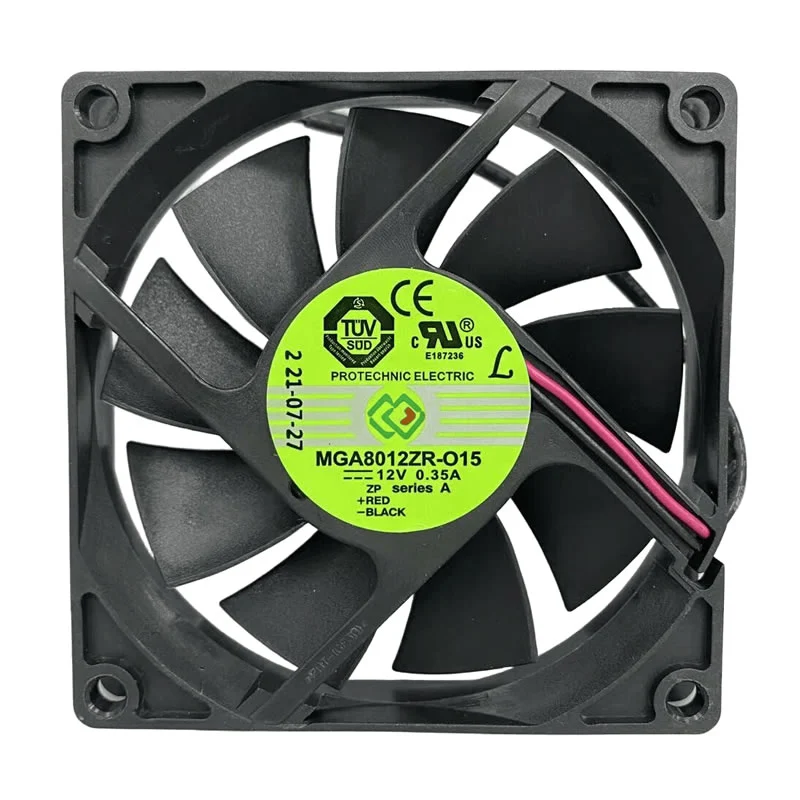

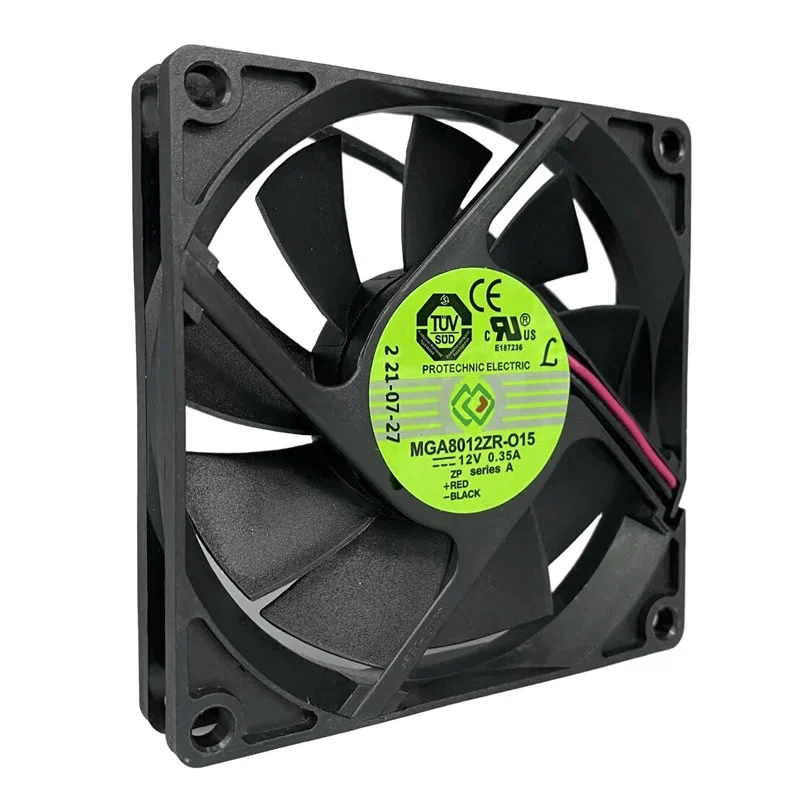

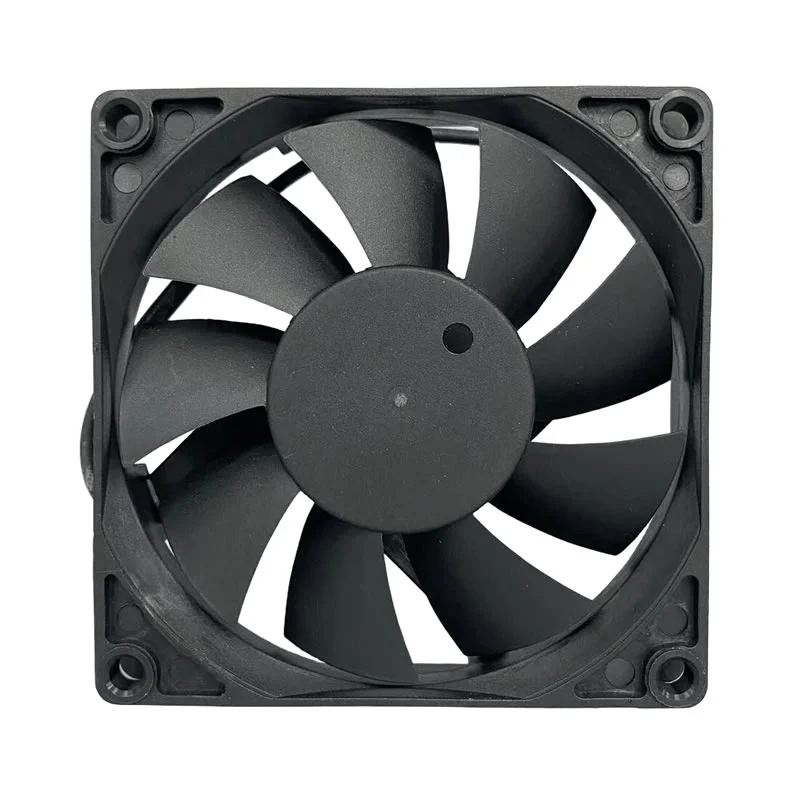

MGA8012ZR-O15 Protechnic 12VDC 1.236m³/min 43.61CFM 48.07Pa 0.193inH2O 4000RPM 0.35A 4.2W 39.7dB(A) 80x80x15mm Ball Bearing 2 Wire Leads DC Axial Fan
Specifications
| Model Number | MGA8012ZR-O15 |
|---|---|
| Manufacturer | Protechnic Electric |
| Fan Type | DC |
| Voltage Rating | 12 VDC |
| Air Flow CMM | 1.236 m³/min |
| Air Flow | 43.61 CFM |
| Static Pressure Pa | 48.07 Pa |
| Static Pressure mmAq | 4.9 mmAq |
| Static Pressure | 0.193 in H2O |
| Fan Speed | 4000 RPM |
| Current Rating | 0.35 A |
| Actual Current | 0.21 A |
| Power Rating | 4.2 W |
| Actual Power | 2.52 W |
| Noise Level | 39.7 dB(A) |
| Weight | 55 g |
| Dimensions | 80x80x15 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 2 Wire Leads |
| Category | Axial Fan |
| Features | Automatic restart,locked current protection |
| series | 80*80*15mm seriesC |
| Shipping Weight | 0.5 kg |
