Description

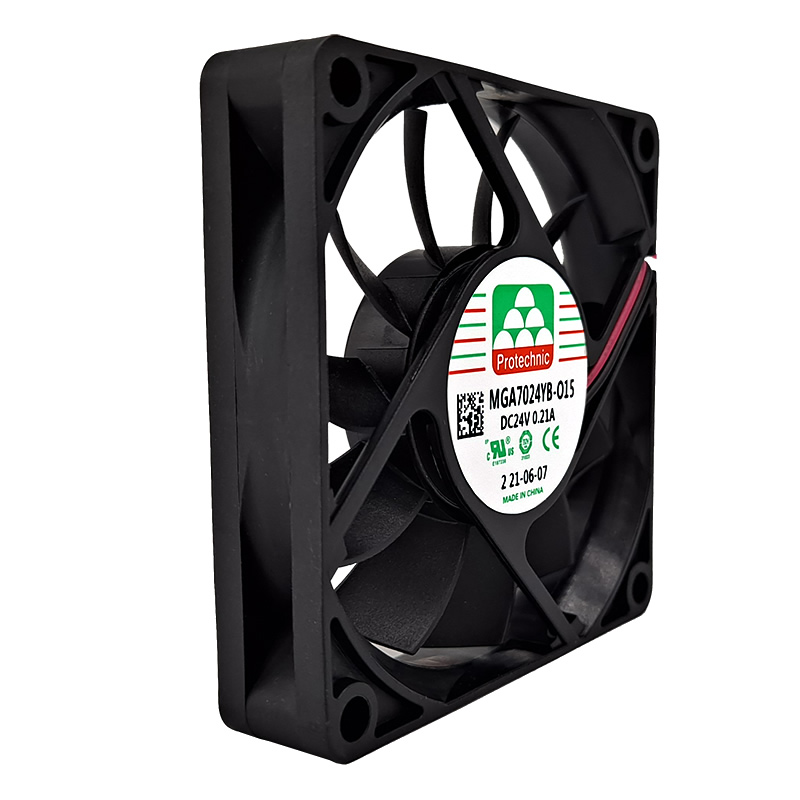

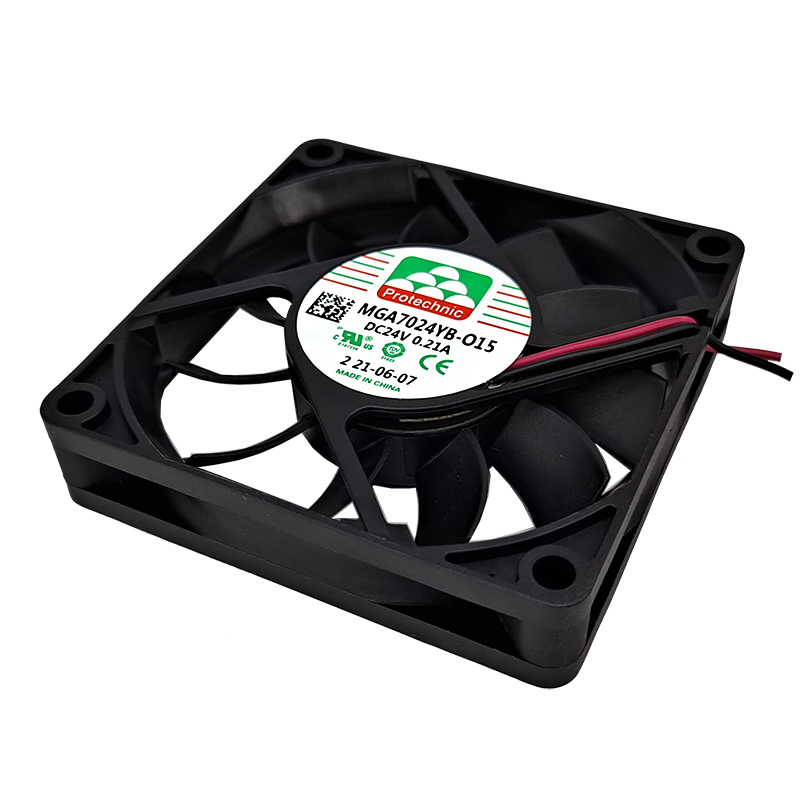

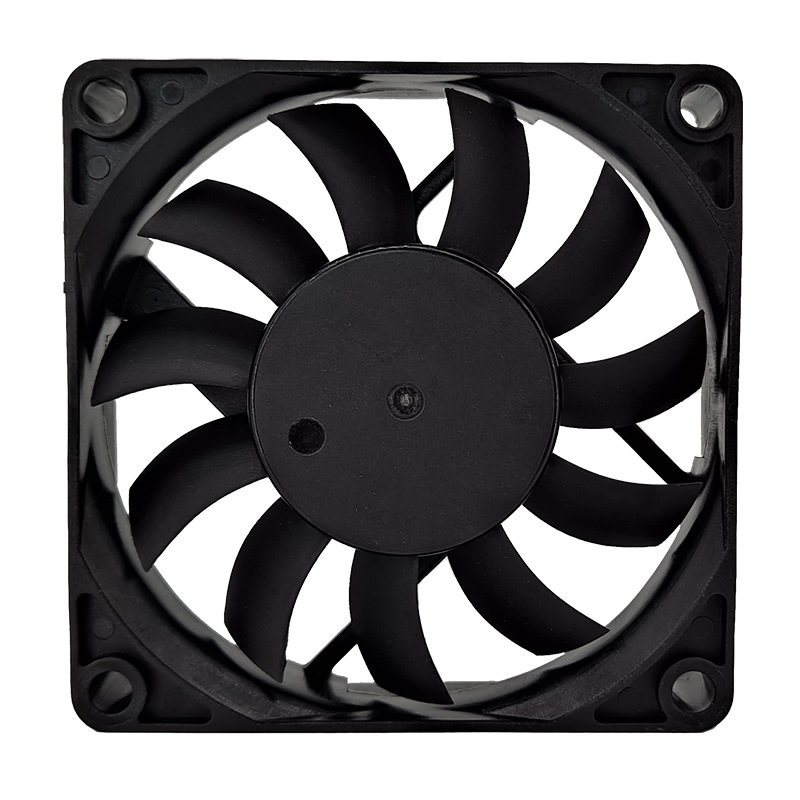

MGA7024YB-O15 Protechnic 24VDC 0.964m³/min 34.02CFM 43.65Pa 0.175inH2O 3800RPM 0.21A 5.04W 36.1dB(A) 70x70x15mm Ball Bearing 2 Wire Leads DC Axial Fan
Specifications
| Model Number | MGA7024YB-O15 |
|---|---|
| Manufacturer | Protechnic Electric |
| Actual Power | 4.32 W |
| Fan Type | DC |
| Voltage Rating | 24 VDC |
| Air Flow CMM | 0.964 m³/min |
| Air Flow | 34.02 CFM |
| Static Pressure Pa | 43.65 Pa |
| Static Pressure mmAq | 4.45 mmAq |
| Static Pressure | 0.175 in H2O |
| Fan Speed | 3800 RPM |
| Current Rating | 0.21 A |
| Actual Current | 0.18 A |
| Power Rating | 5.04 W |
| Weight | 50 g |
| Noise Level | 36.1 dB(A) |
| Dimensions | 70x70x15 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 2 Wire Leads |
| Category | Axial Fan |
| Features | Automatic restart,locked current protection |
| series | 70*70*87mm series |
| Shipping Weight | 0.25 kg |
| Product PDF | MGA7024YB-O15-Protechnic.pdf |
