Description

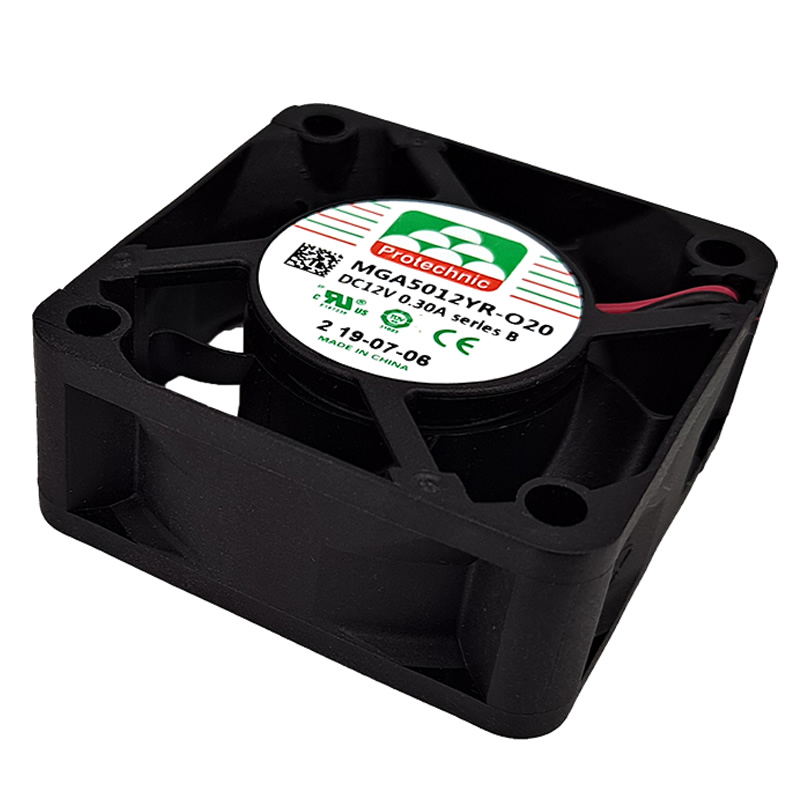

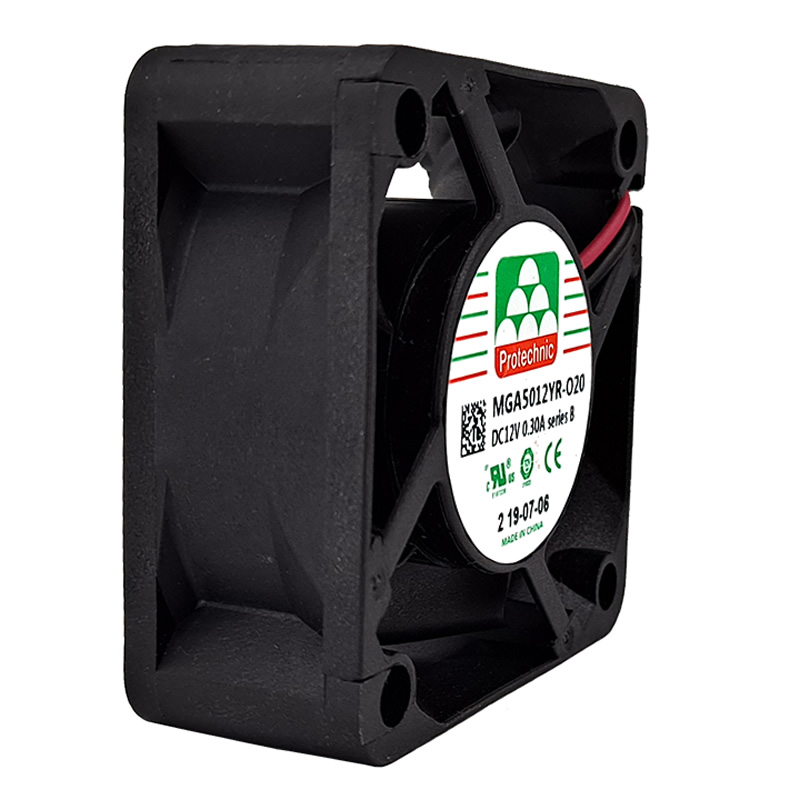

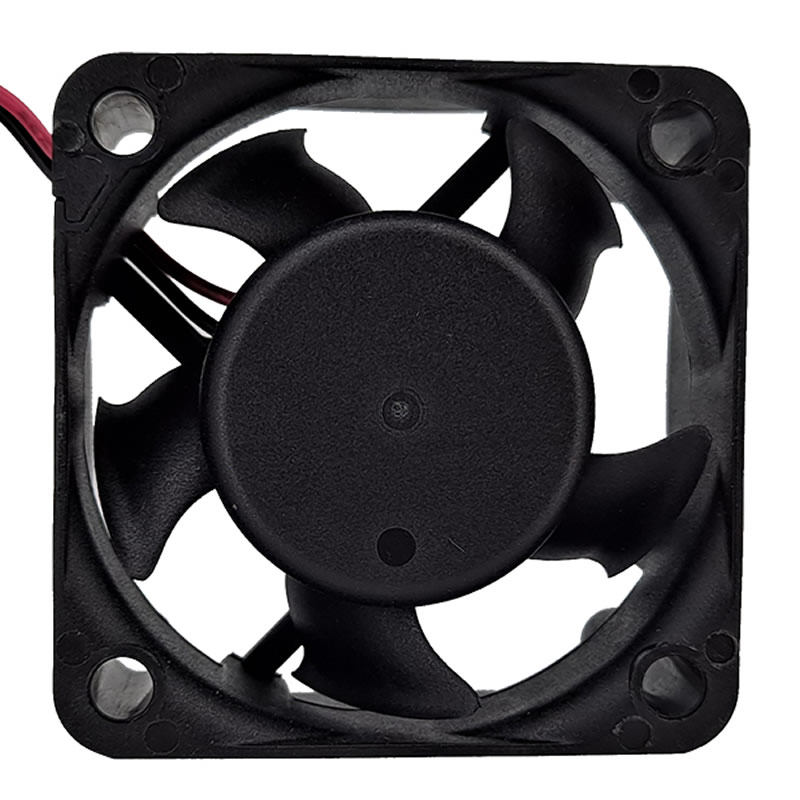

MGA5012YR-O20 Protechnic 12VDC 0.571m³/min 20.14CFM 77.6Pa 0.311inH2O 7000RPM 0.3A 3.6W 37.6dB(A) 50x50x20mm Ball Bearing 2 Wire Leads DC Axial Fan
Specifications
| Model Number | MGA5012YR-O20 |
|---|---|
| Actual Power | 2.88 W |
| Fan Type | DC |
| Voltage Rating | 12 VDC |
| Air Flow CMM | 0.571 m³/min |
| Air Flow | 20.14 CFM |
| Static Pressure Pa | 77.6 Pa |
| Static Pressure mmAq | 7.91 mmAq |
| Static Pressure | 0.311 in H2O |
| Fan Speed | 7000 RPM |
| Current Rating | 0.3 A |
| Actual Current | 0.24 A |
| Power Rating | 3.6 W |
| Manufacturer | Protechnic Electric |
| Weight | 42 g |
| Noise Level | 37.6 dB(A) |
| Dimensions | 50x50x20 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 2 Wire Leads |
| Category | Axial Fan |
| Features | Automatic restart,locked current protection |
| series | 50*50*20mm seriesB |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | MGA5012YR-O20-Protechnic.pdf |
