Description

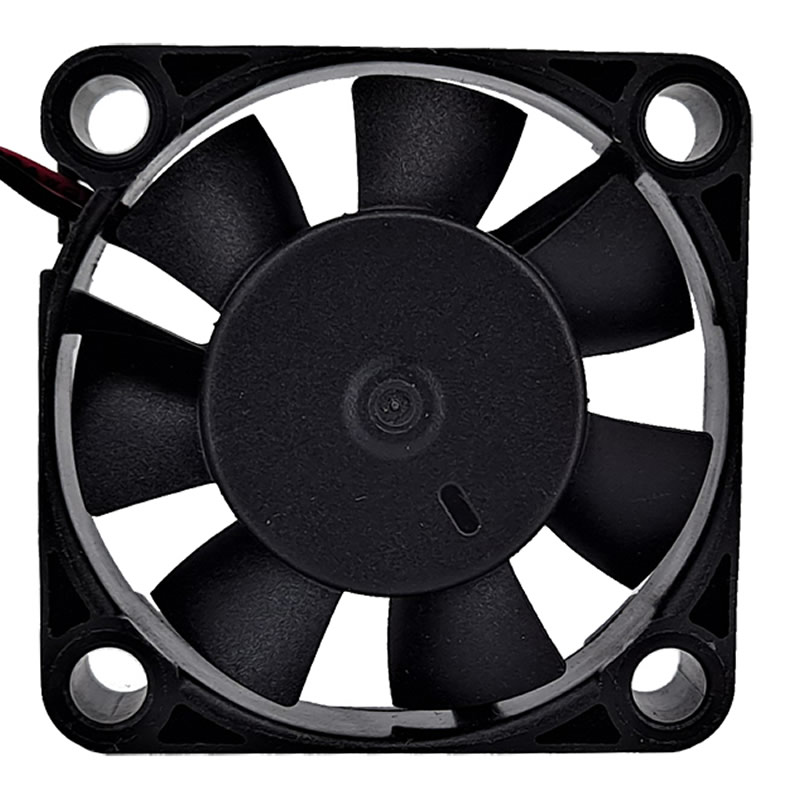

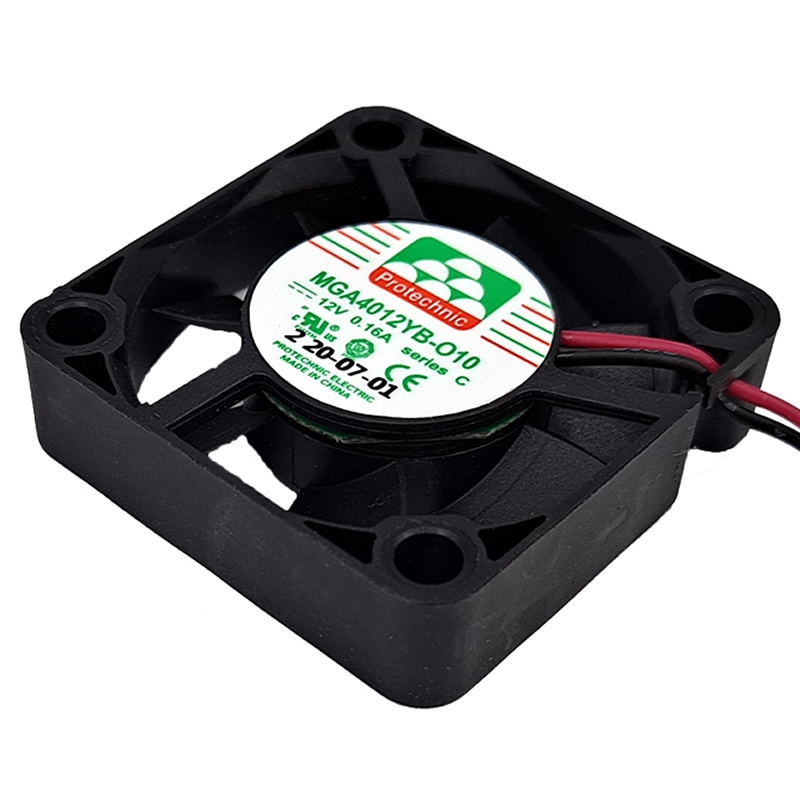

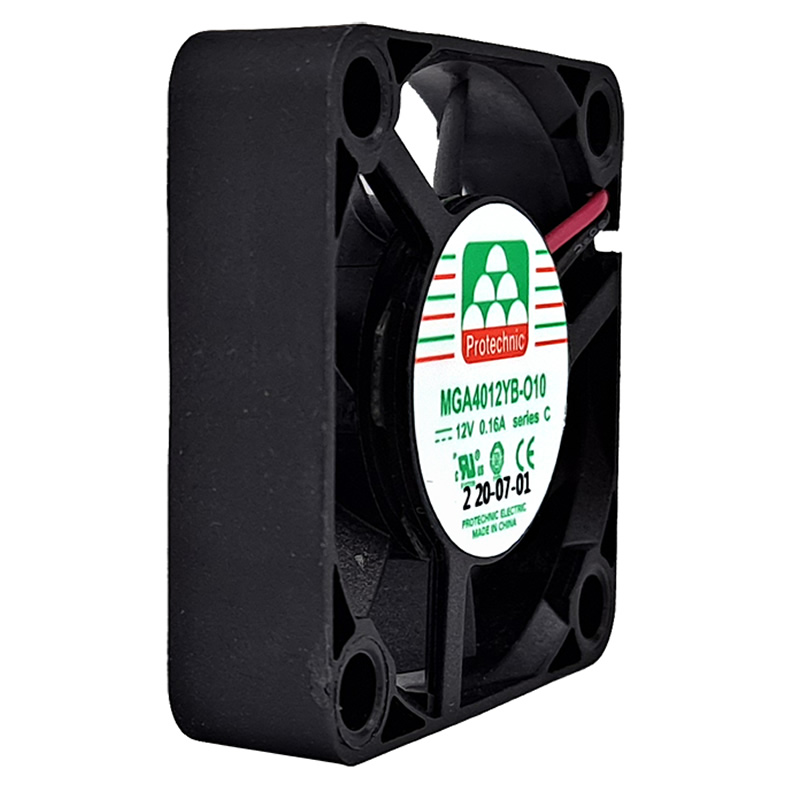

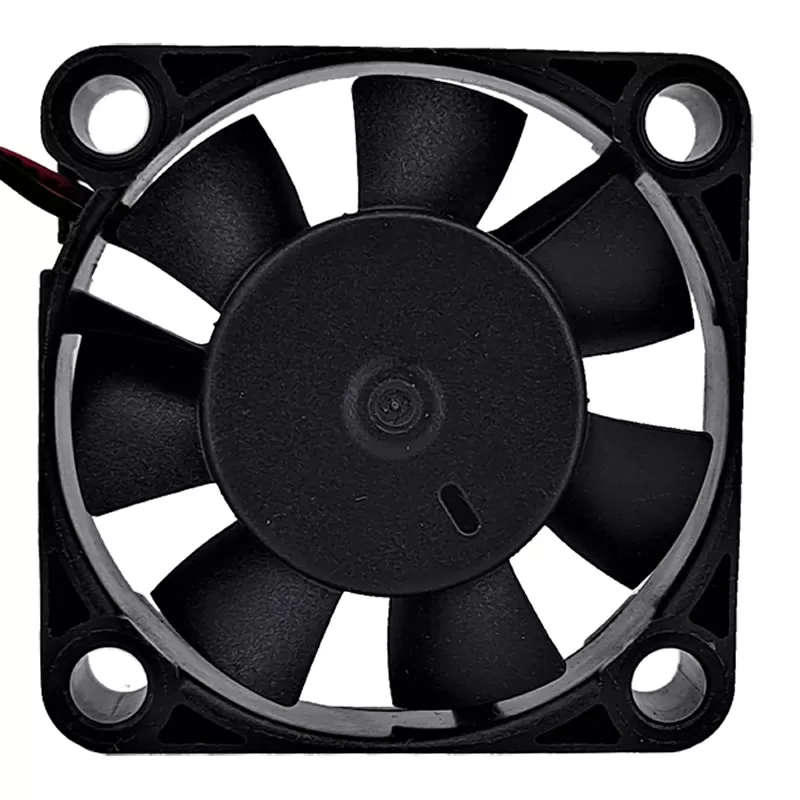

MGA4012YB-O10 Protechnic 12VDC 0.247m³/min 8.72CFM 60.33Pa 0.242inH2O 8200RPM 0.16A 1.92W 35.1dB(A) 40x40x10mm Ball Bearing 2 Wire Leads DC Axial Fan
MGA4012YB-O10 is a 40×40×10mm Series C DC axial fan manufactured by Protechnic Electric, featuring 12VDC rated voltage, 0.16A rated current (0.1A actual), and 1.92W rated power (1.2W actual). Its aerodynamic performance includes 0.247m³/min (8.72CFM) air flow, 60.33Pa (6.15mmAq/0.242inH2O) static pressure, 8200RPM rotation speed, and 35.1dB(A) noise level. Constructed with ball bearings, plastic blades and frame, the 14g fan offers L10 life of 40,000 hours at 60℃, operating within -10~70℃ (-14~158°F) and storing at -40~70℃ (5%~95%RH). Certified by CE, TUV, and UL, it comes with 2-wire leads, integrating automatic restart and locked current protection for heat dissipation in compact spaces.
Specifications
| Model Number | MGA4012YB-O10 |
|---|---|
| Actual Power | 1.2 W |
| Fan Type | DC |
| Voltage Rating | 12 VDC |
| Air Flow CMM | 0.247 m³/min |
| Air Flow | 8.72 CFM |
| Static Pressure Pa | 60.33 Pa |
| Static Pressure mmAq | 6.15 mmAq |
| Static Pressure | 0.242 in H2O |
| Fan Speed | 8200 RPM |
| Current Rating | 0.16 A |
| Actual Current | 0.1 A |
| Power Rating | 1.92 W |
| Manufacturer | Protechnic Electric |
| Weight | 14 g |
| Noise Level | 35.1 dB(A) |
| Dimensions | 40x40x10 mm |
| Bearing Type | Ball Bearing |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Lifetime @ Temp | 40000 Hrs @ 60°C |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Storage Temperature | -40℃～70℃(5%～95% RH) |
| Approval Agency | CE, TUV, UL |
| Termination | 2 Wire Leads |
| Category | Axial Fan |
| Features | Automatic restart,locked current protection |
| series | 40*40*10mm seriesC |
