Description

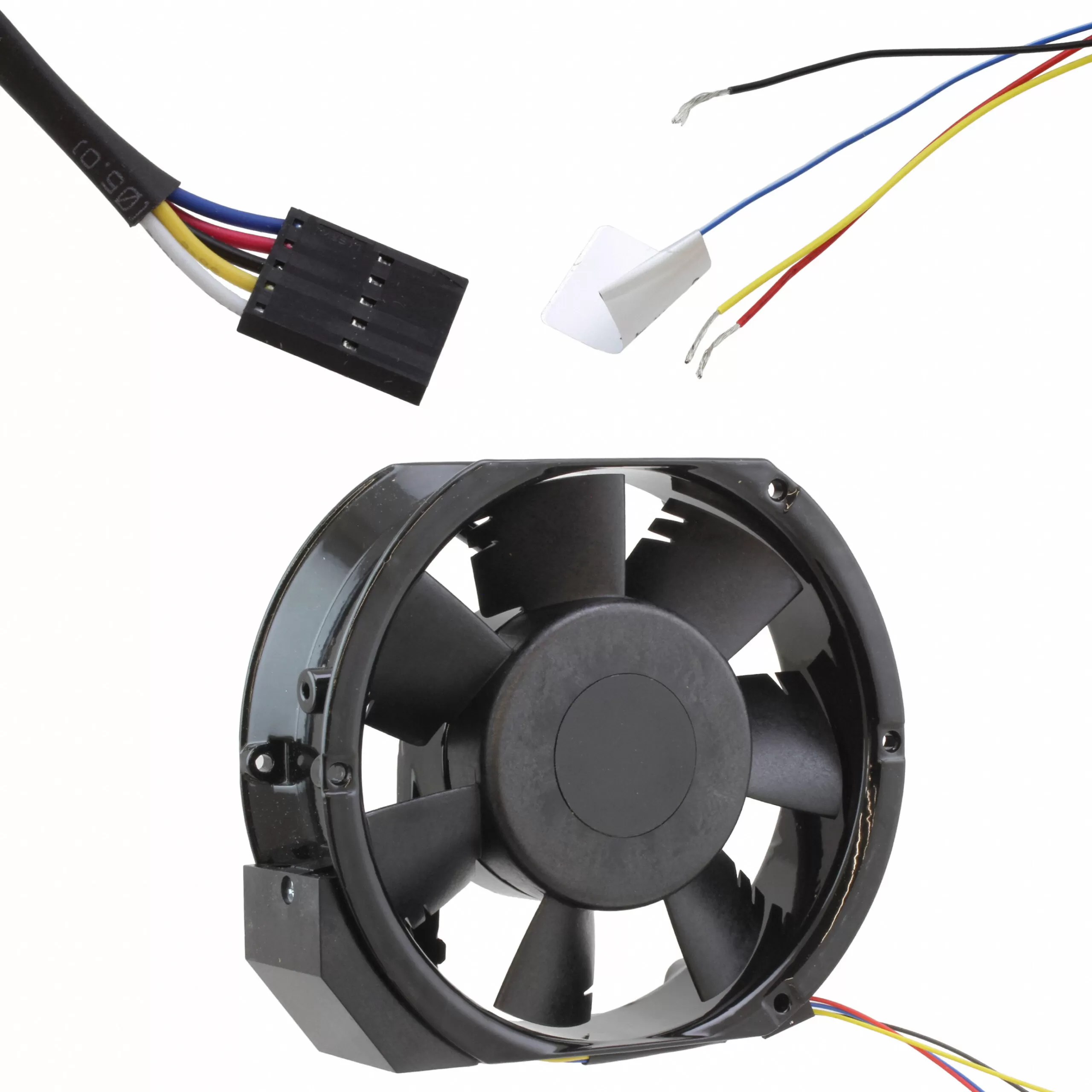

JQD48Z6E6X Comair Rotron 19041286A 172x150x51mm 48VDC 0.75A 36W 4560RPM 300CFM 509.7m³/h 60dB(A) Ball 1.54inH2O 383Pa Harness Axial DC fan
Specifications
| Model Number | JQD48Z6E6X |
|---|---|
| Air Flow | 300 CFM |
| Weight | 840 g |
| Manufacturer | Comair Rotron |
| Series | Major DC |
| Dimensions | 172x150x51 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24-72VDC |
| Current Rating | 0.75 A |
| Power Rating | 36 W |
| Fan Speed | 4560 RPM |
| Air Flow (m3) | 509.7 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19041286A |
| Noise Level | 60 dB(A) |
| Static Pressure | 1.54 in H2O |
| Operating Temperature | -14 ~ 167°F (-10 ~ 75°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 68000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | Harness |
| Category | Axial DC |
| Static Pressure Pa | 383 Pa |
| Product PDF | JQD48Z6E6X-Comair-Rotron.pdf |
