Description

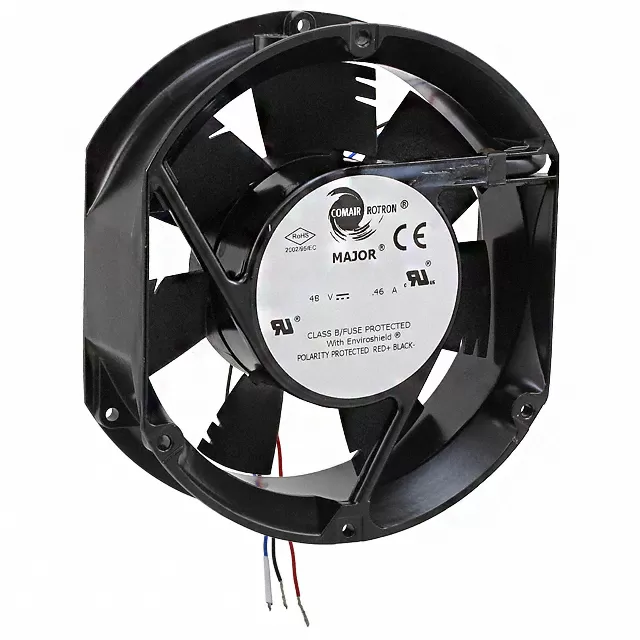

JQD48Z3A2 Comair Rotron 19039693A 172x150x51mm 48VDC 0.72A 35W 4450RPM 305CFM 518.2m³/h 60.2dB(A) Ball 1.37inH2O 341Pa 4 Wire Leads Axial DC fan
Specifications
| Model Number | JQD48Z3A2 |
|---|---|
| Air Flow | 305 CFM |
| Weight | 840 g |
| Manufacturer | Comair Rotron |
| Series | Major DC |
| Dimensions | 172x150x51 mm |
| Voltage Rating | 48 VDC |
| Fan Type | DC |
| Operating Voltage | 24-72VDC |
| Current Rating | 0.72 A |
| Power Rating | 35 W |
| Fan Speed | 4450 RPM |
| Air Flow (m3) | 518.2 m³/h |
| Bearing Type | Ball Bearing |
| Part Number | 19039693A |
| Noise Level | 60.2 dB(A) |
| Static Pressure | 1.37 in H2O |
| Operating Temperature | -40 ~ 185°F (-40 ~ 85°C) |
| Storage Temperature | -40°C to 85°C |
| Approval Agency | CE, UL |
| Lifetime @ Temp | 50000 Hrs @ 40°C |
| Propeller | Plastic, Black, UL 94V-0 |
| Venturi | Die-Cast Aluminum |
| Termination | 4 Wire Leads |
| Category | Axial DC |
| Static Pressure Pa | 341 Pa |
| Product PDF | JQD48Z3A2-Comair-Rotron.pdf |
