Description
G2E120-CR21-01 ebmpapst 230VAC 171x180x110mm 150CFM Ball 63dB(A) 100W 2050RPM 2 Wire Leads Blower, Centrifugal AC Fan

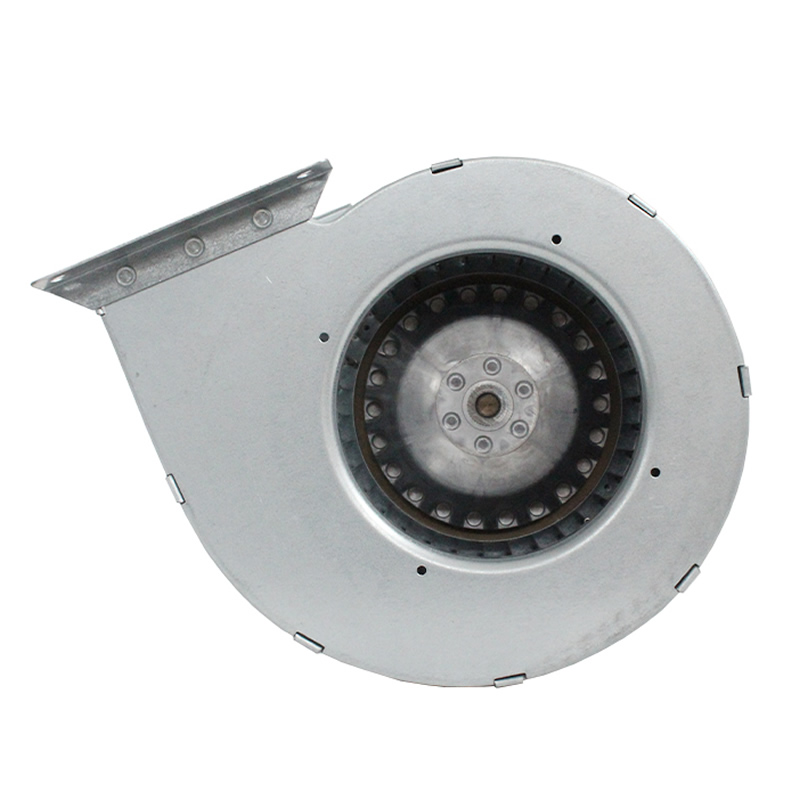

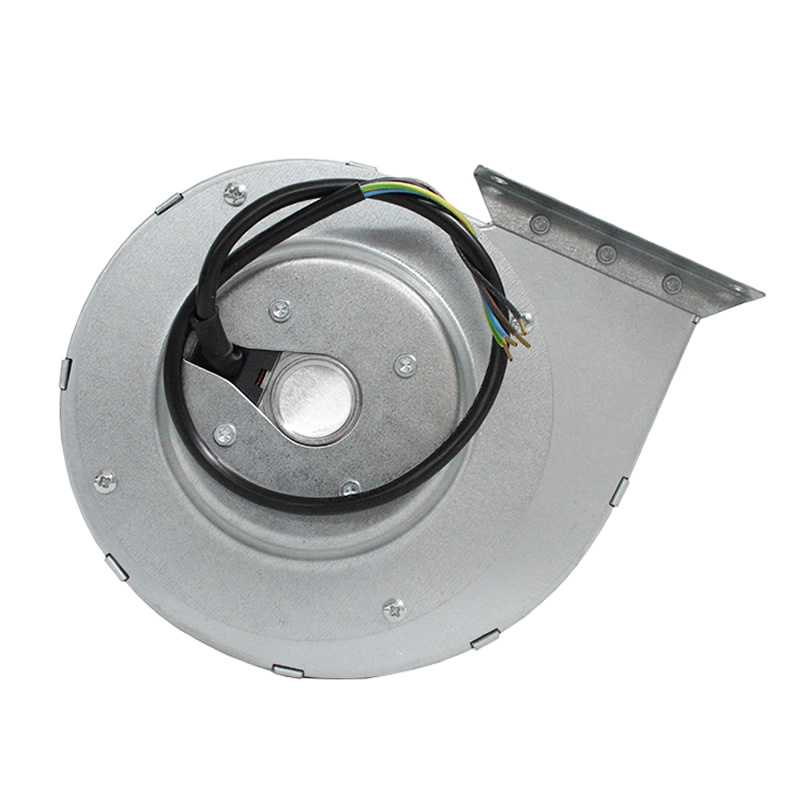

The ebm-papst G2E120-CR21-01 is a robust 230 VAC AC centrifugal fan featuring a 120 mm galvanized steel impeller and a flanged single inlet, ensuring reliability in various general cooling tasks. This fan achieves 275 m³/h airflow at 2200 RPM at 50Hz, and 265 m³/h at 2050 RPM at 60Hz, with power consumption of 83W and 100W respectively. Its IP44 protection and integrated Thermal Overload Protector (TOP) allow for safe operation in ambient temperatures from -25°C to a maximum of 50°C, making it an ideal choice for small refrigeration, electronic cooling, and general ventilation.
Specifications
| Part Number | G2E120-CR21-01 |
|---|---|
| Manufacturer | ebm-papst |
| Series | G2E120 |
| Fan Type | AC |
| Voltage Rating | 230 VAC |
| Dimensions | 171x180x110 mm |
| Air Flow | 150 CFM |
| Air Flow (m3) | 4.20m³/min |
| Bearing Type | Ball Bearing |
| Subcategory | Blower, Centrifugal |
| Noise Level | 63 dB(A) |
| Power Rating | 100 W |
| Fan Speed | 2050 RPM |
| Termination | 2 Wire Leads |
| Approval Agency | CCC, CE, GOST |
| Weight | 4.2 lbs (1.9 kg) |
| Subcategory | AC centrifugal fan |
| Shipping Weight | 3 kg |
| Product PDF | G2E120-CR21-01-ebmpapst.pdf |
