Description

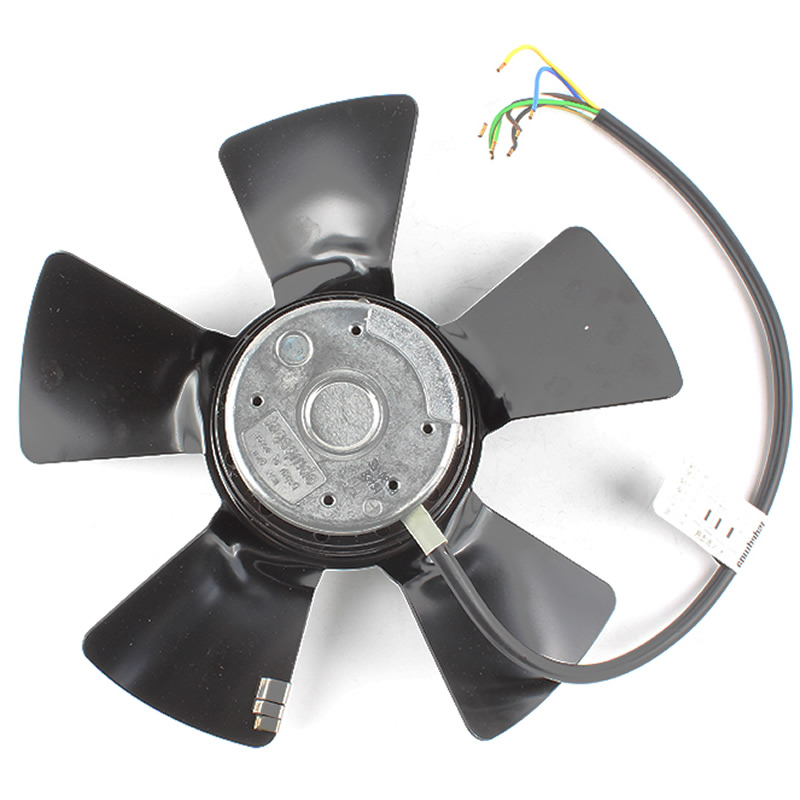

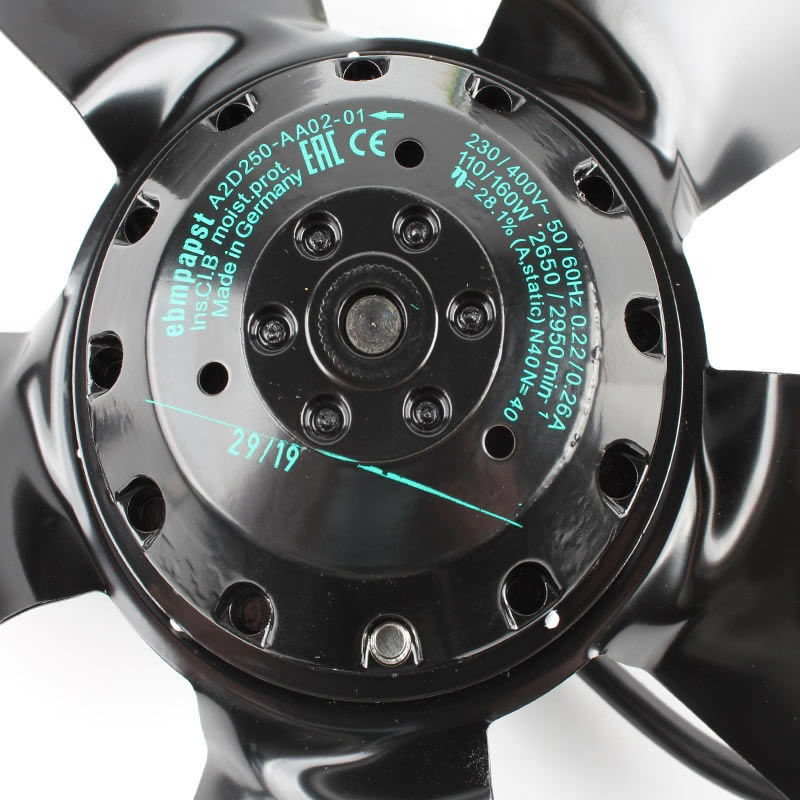

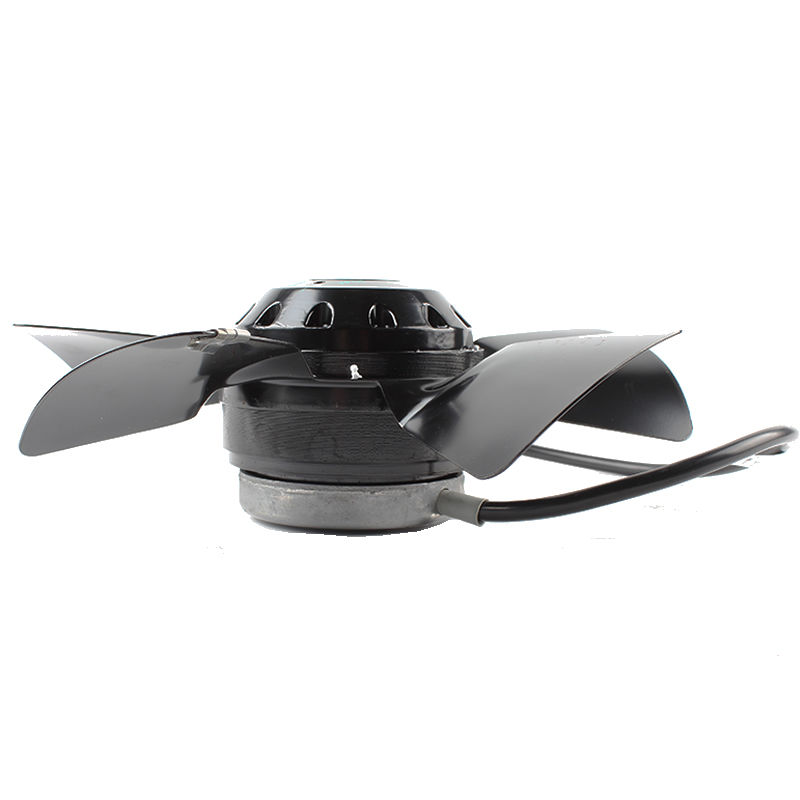

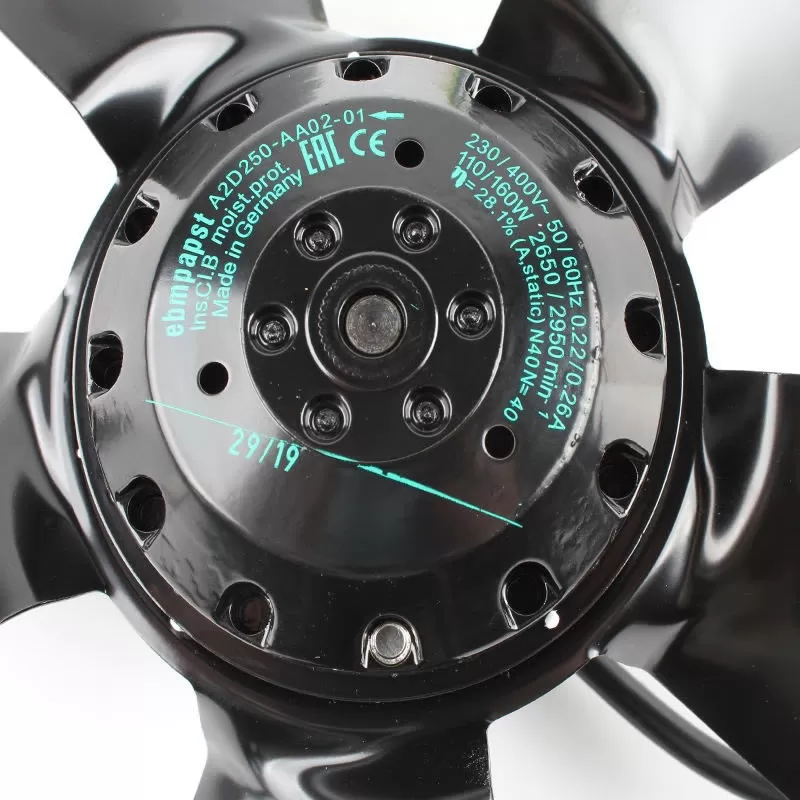

The ebmpapst A2D250-AA02-01 is a 250 mm AC axial fan featuring a robust 3-phase motor designed for high-performance industrial cooling. This unit operates at a nominal voltage of 400 VAC (Star connection, 50/60 Hz) with a power consumption of 110/160 W and a precise current draw of 0.22/0.26 A. It reaches rated speeds of 2650 RPM at 50 Hz and 2950 RPM at 60 Hz, delivering a maximum airflow of up to 1865/2065 m³/h. Built with a 5-blade sheet steel impeller (coated in black) and maintenance-free ball bearings, the fan offers IP44 protection and Class B insulation. It supports an ambient temperature range of -25 to +70°C (at 50 Hz) and includes integrated thermal overload protection. This axial fan is widely used in refrigeration technology, air conditioning units, and industrial ventilation systems.
Specifications
| Part Number | A2D250-AA02-01 |
|---|---|
| Static Pressure | 1.204 in H2O (300.0 Pa) |
| Series | A2D250 |
| Fan Type | AC |
| Voltage Rating | 400 VAC |
| Dimensions | 250×83 mm |
| Air Flow | 992.5 CFM |
| Air Flow (m3) | 27.79m³/min |
| Manufacturer | ebm-papst |
| Subcategory | Tubeaxial, 3 Phase |
| Bearing Type | Ball Bearing |
| Noise Level | 72 dB(A) |
| Power Rating | 160 W |
| Fan Speed | 2950 RPM |
| Termination | 7 Wire Leads with Splice Terminals |
| IP Rating | IP44 |
| Operating Temperature | -13 ~ 104°F (-25 ~ 40°C) |
| Approval Agency | CCC, CE, EAC |
| Shipping Weight | 4 kg |
| Technical Specifications | A2D250-AA02-01-ebmpapst.pdf |
