Description
G1G108-AB17-02 ebmpapst 24VDC 108mm Ball 42W 3000RPM IP22 4 Wire Leads with Splice Terminals PWM Control, Speed Sensor (Tach) Blower DC Fan

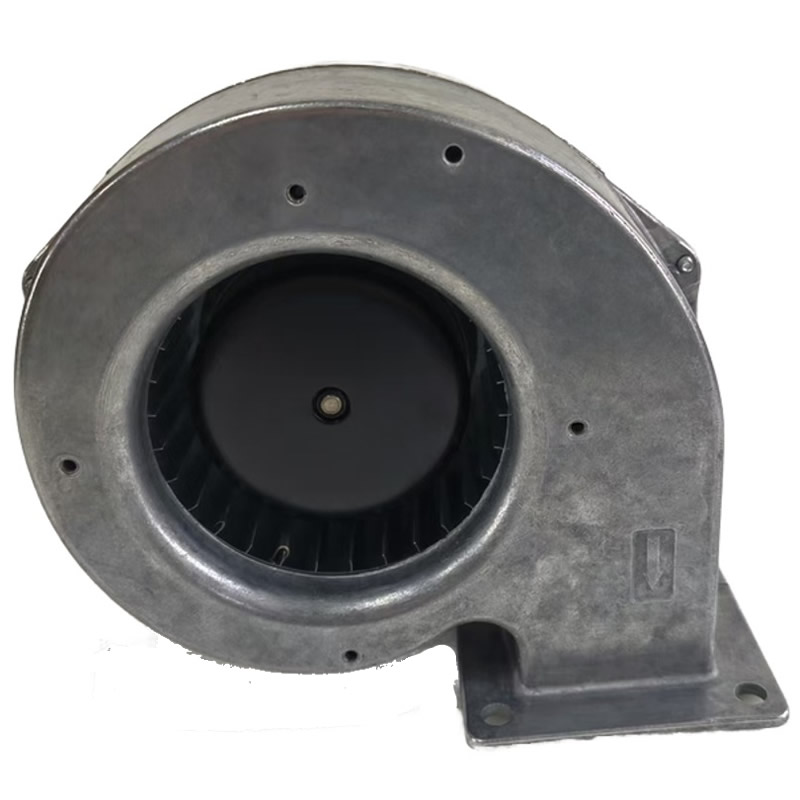

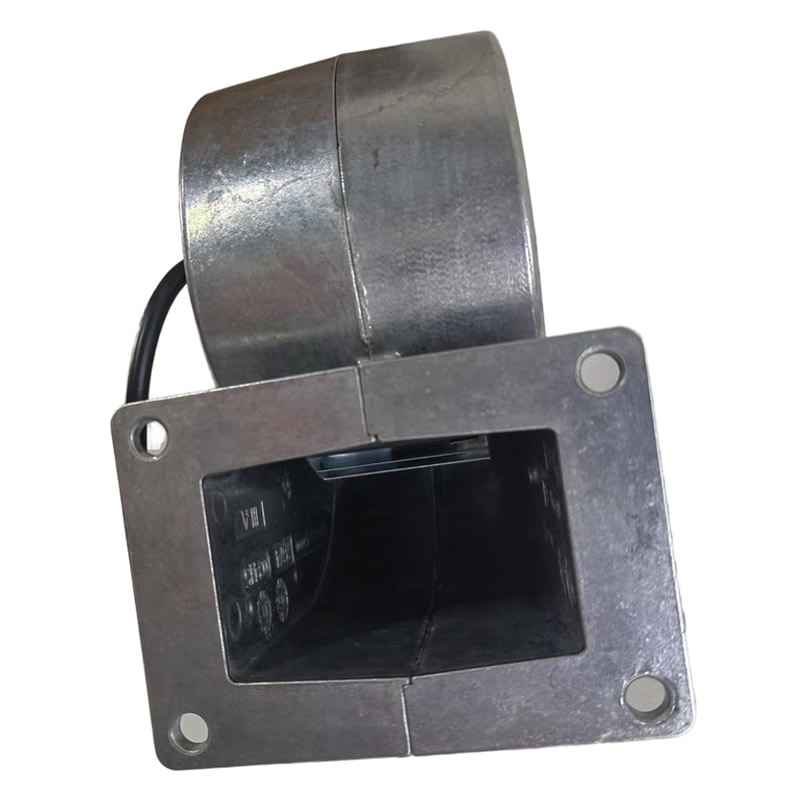

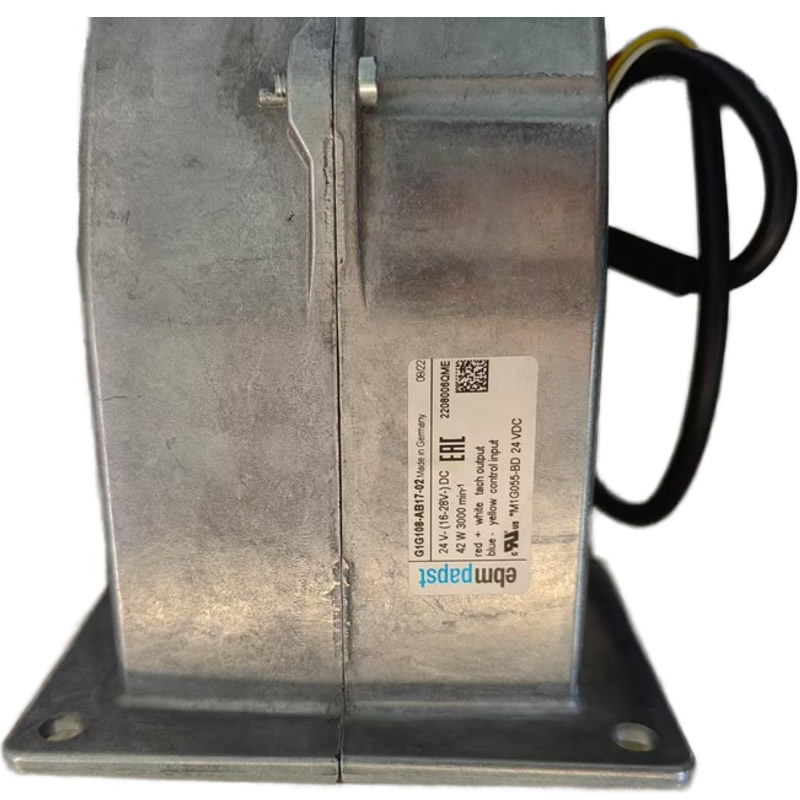

The G1G108-AB17-02 centrifugal fan is a forward-curved, single-intake EC fan launched by ebm-papst. It has a rated voltage of 24VDC (wide voltage range: 16-28VDC), a rotational speed of 3000rpm, a power of 42W, a maximum current of 2.0A, a size of 108mm, and a weight of 1.4kg. It adopts a die-cast aluminum housing and a hot-dip galvanized impeller, with a protection class of IP22. It supports 0-10V/PWM speed regulation and tach output (2 pulses per revolution), and is equipped with soft start, reverse polarity/locked-rotor protection. It is suitable for industrial environments of -25℃ to 60℃ (storage: -40℃ to 80℃). Its maximum air flow is 225m³/h (28V without pressure), and the highest static pressure is 414Pa (28V/90m³/h). Certified by UL/CSA/EAC, it features low noise and high efficiency, and is suitable for scenarios such as electronic equipment cooling, industrial machinery ventilation, and server cabinets. It allows flexible installation (any direction), and the cable is standard with 4-core AWG20 crimped splices.
Specifications
| Part Number | G1G108-AB17-02 |
|---|---|
| Manufacturer | ebm-papst |
| Series | G1G108 |
| Voltage Rating | 24 VDC |
| Dimensions | 108 mm |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Features | PWM Control, Speed Sensor (Tach) |
| Power Rating | 42 W |
| Fan Speed | 3000 RPM |
| Termination | 4 Wire Leads with Splice Terminals |
| IP Rating | IP22 |
| Operating Temperature | -13 ~ 140°F (-25 ~ 60°C) |
| Approval Agency | CSA, EAC, UL |
| Subcategory | Blower |
