Description

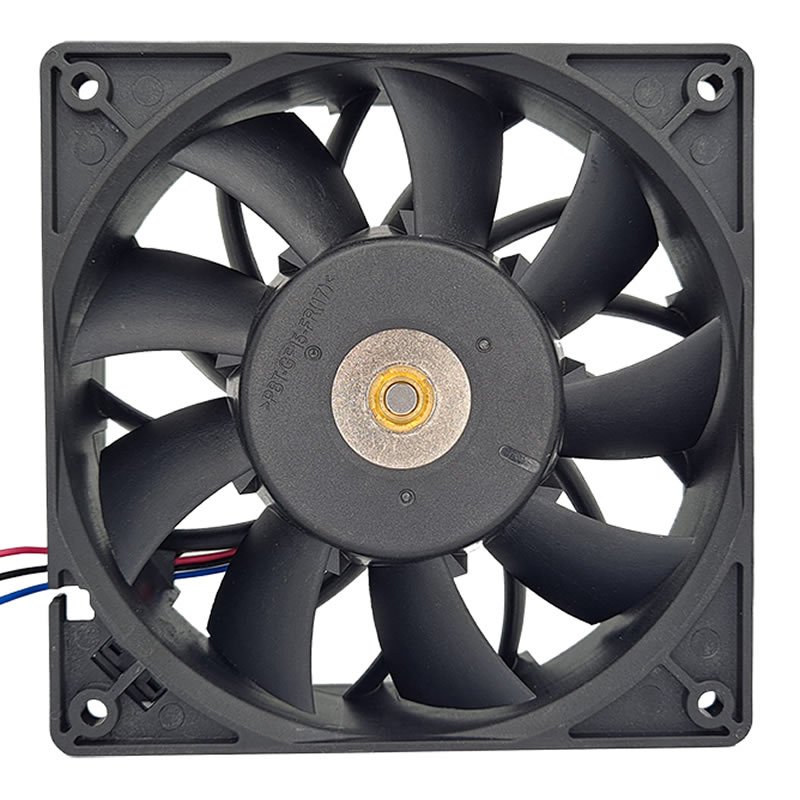

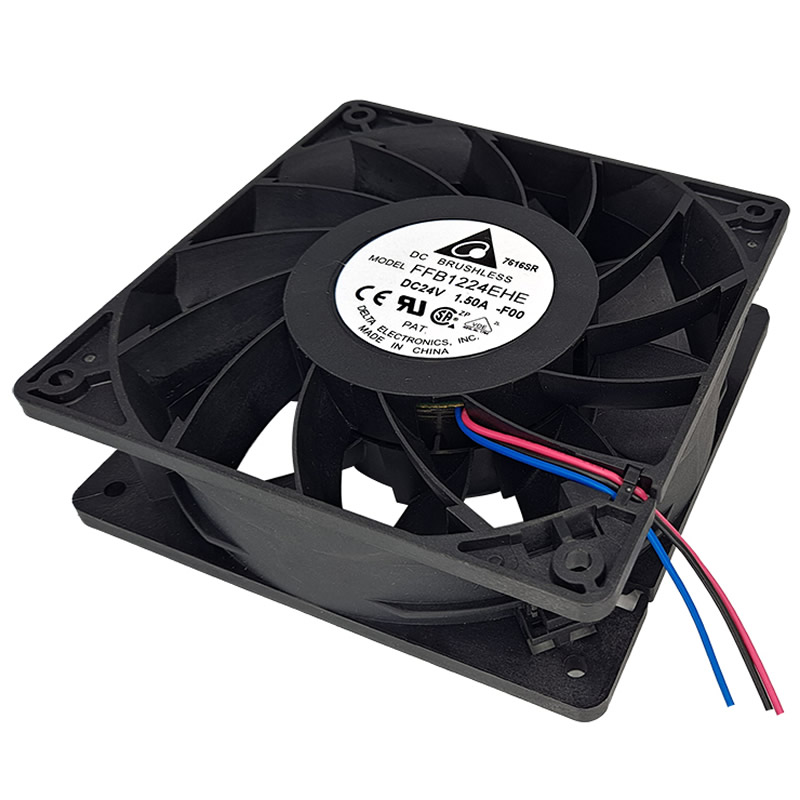

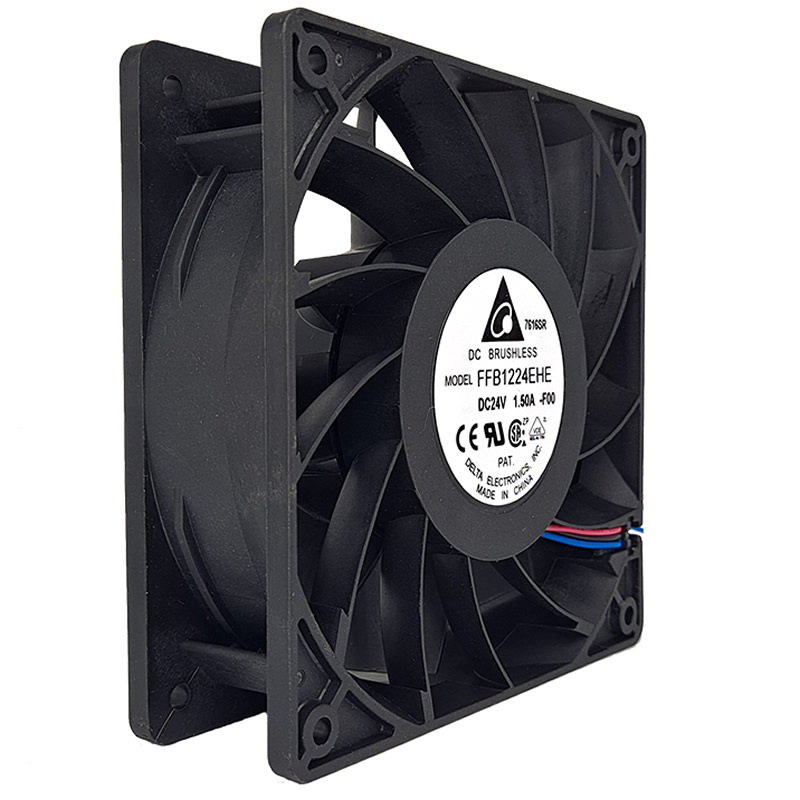

FFB1224EHE-F00 Delta 120x120x38mm Ball 24VDC 190.00CFM(5.380m3/min) 0.700inchH2O(17.78mmH2O) 59.0dB(A) 24.00W 4000RPM 3wireleads fan
Specifications
| Part Number | FFB1224EHE-F00 |
|---|---|
| Power Rating | 24.00 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 122°F (-10 ~ 50°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | FFB |
| Air Flow (m3) | 5.380 m3/min |
| Dimensions | 120x120x38 mm |
| Termination | 3 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 4000 RPM |
| Fan Type | DC |
| Static Pressure | 0.700 inchH2O (17.78 mmH2O) |
| Noise Level | 59.0 dB(A) |
| Air Flow | 190 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.816 lb (370.13 g) |
| Category | Axial |
| Current Rating | 1.00 A |
| Operating Voltage | 14 ~ 26.4 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Shipping Weight | 0.5 kg |
| Product PDF | FFB1224EHE-F00-Delta.pdf |
