Description

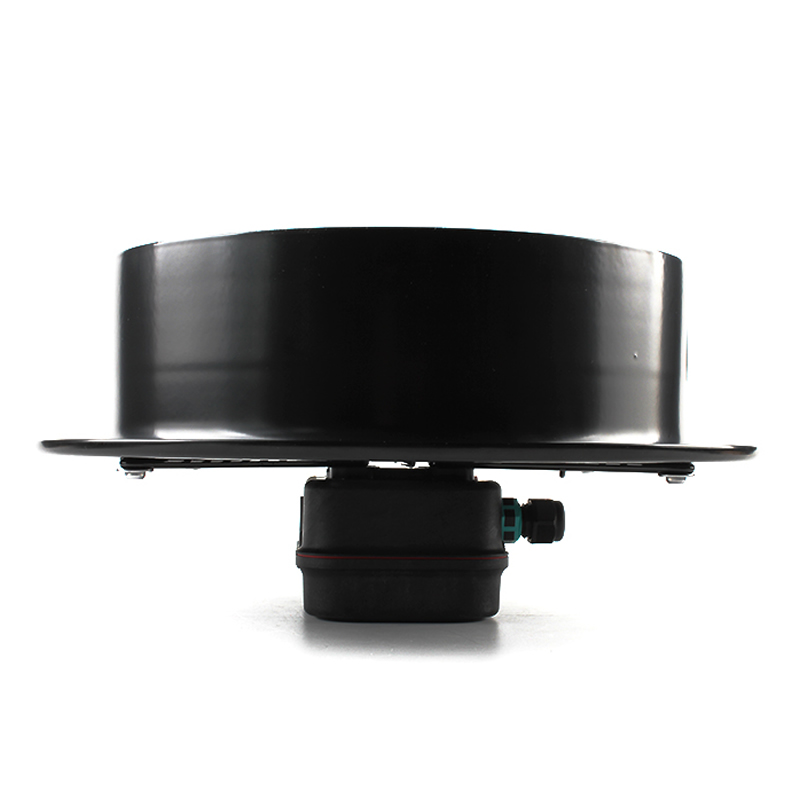

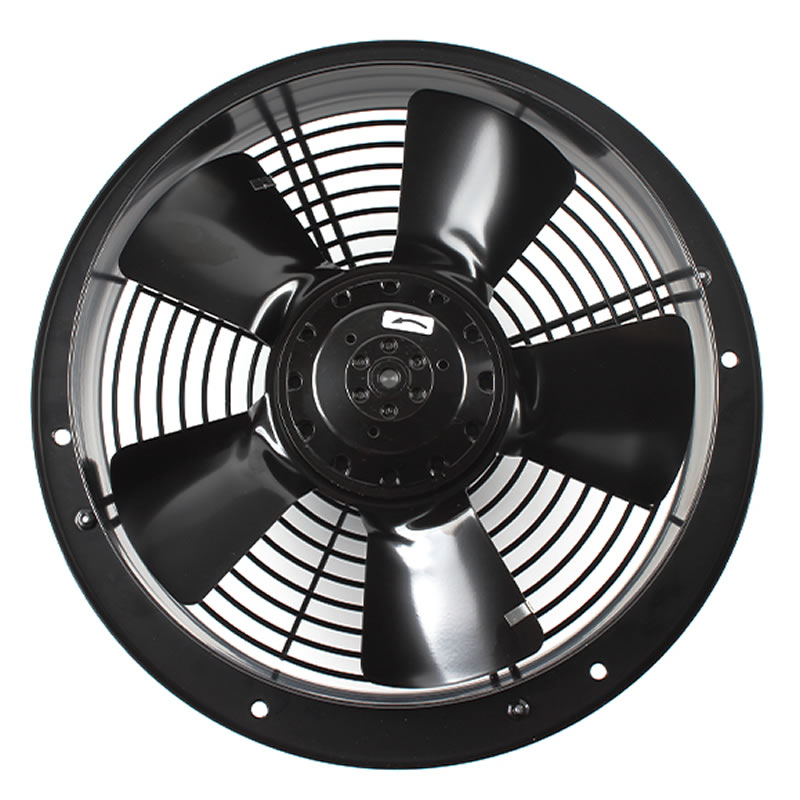

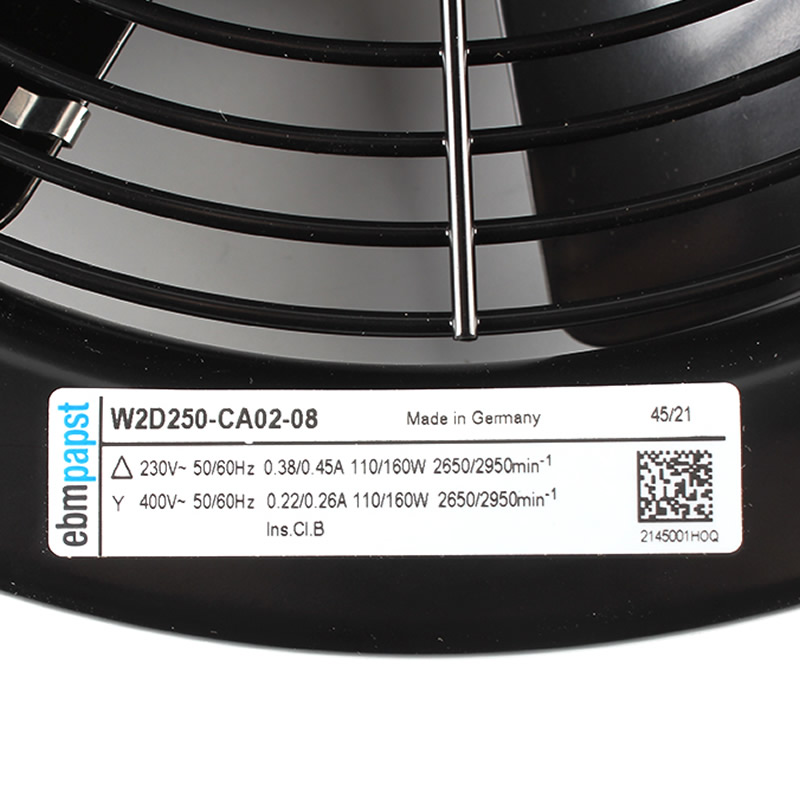

W2D250-CA02-08 ebmpapst 250mm 0.38/0.45A 110/160W 230V/400V AC axial fan
The ebm-papst W2D250-CA02-08 is a high-performance AC Axial Cooling Fan from ebm-papst, designed for robust air movement in demanding industrial and commercial environments. This fan operates on a dual voltage 230V AC or 400V AC at 50Hz. When operating at 230V AC, it draws 0.38A for 110W of power; at 400V AC, it draws 0.22A for the same 110W. It rotates at a consistent speed of 2650 RPM, delivering a substantial airflow of 1205 m³/h (709 CFM). The fan produces a noise level of 72 dBA. Measuring Ø320mm x 85mm, it features a steel frame and steel impeller for durability. Equipped with cable leads and robust ball bearings, the W2D250-CA02-08 has an IP44 protection rating and operates reliably within a wide temperature range of -25°C to 70°C. Its integrated 3-phase external rotor motor ensures efficient and continuous operation, making it suitable for heavy-duty cooling tasks.
Specifications
| Part Number | W2D250-CA02-08 |
|---|---|
| Manufacturer | ebm-papst |
| Dimensions | 250 mm |
| Voltage Rating | 230 VAC, 400 VAC |
| Current Rating | 0.22 A, 0.26 A, 0.38 A, 0.45 A |
| Power Rating | 110 W, 160 W |
| Bearing Type | Ball Bearing |
| Fan Type | AC |
| Fan Speed | 2650 RPM, 2950 RPM |
| Subcategory | AC axial fan |
| Shipping Weight | 5 kg |
